988140 (HR 1536 FX) - Gravely Pro-Hydro 36" Walk-Behind Mower, Fixed Deck, 15hp Kawasaki (SN: 000101 - 000400) Deck Assembly - 36" Parts Diagram

Pro-Hydro 36" Walk-Behind Mower, Fixed Deck, 15hp Kawasaki

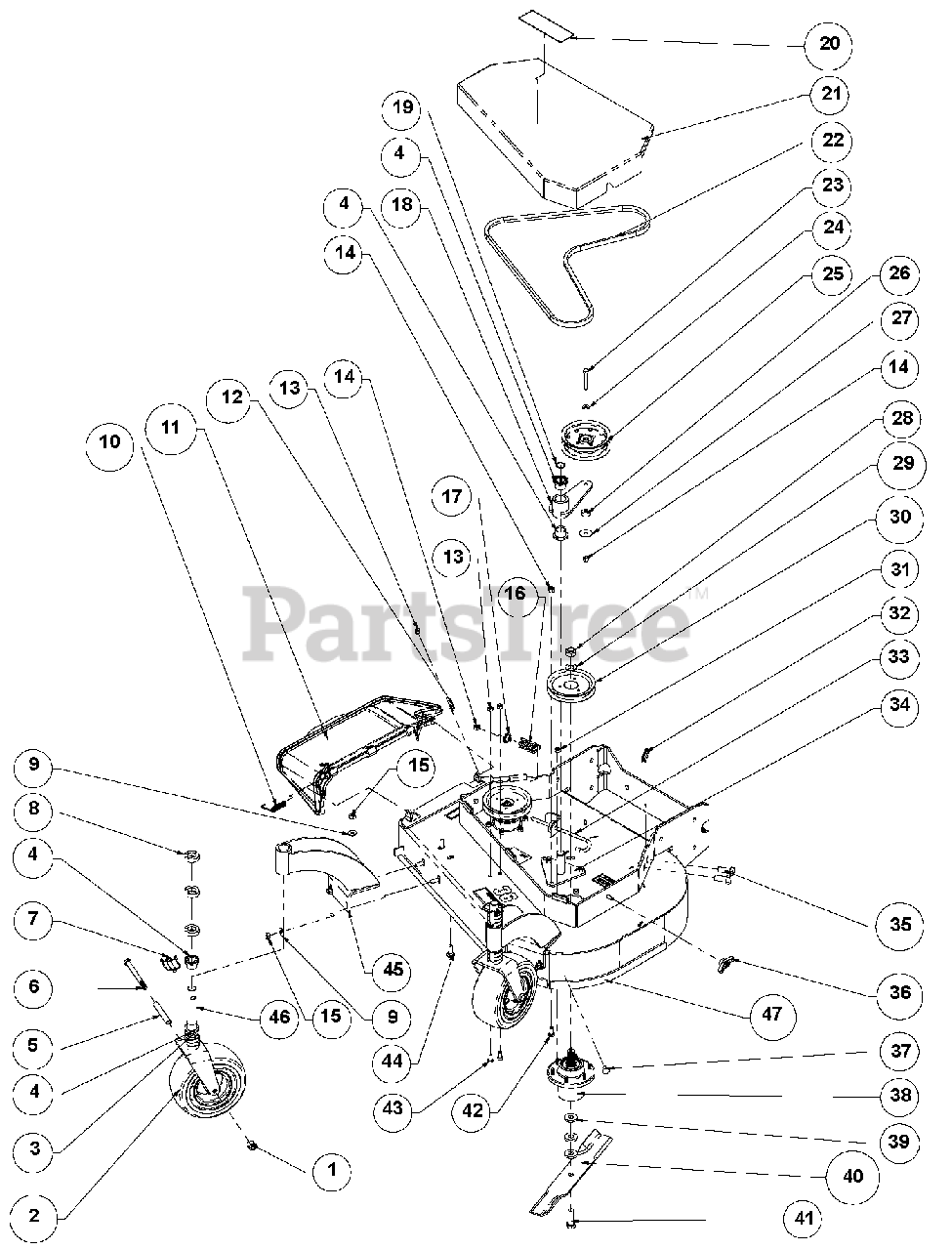

Deck Assembly - 36" Parts Diagram

  • Title

1

Gravely 00964015

Locknut, .50-13 Nyloc
(Superseded to 06500830)

$2.49

$

In Stock, Qty 20+

0

2

Gravely 07100302

Assembly, Wheel and Tire 9 x 3.5
(Superseded to 07100931)

$136.99

$

In Stock, only 2 left!

0

3

Gravely D13008

Bushing, 1.03 x 1.50 x .179

$9.99

$

In Stock, only 2 left!

0

4

Gravely D18076

Bearing, Flange 1.00 x 1.25 x 1.00

$5.99

$

In Stock, only 3 left!

0

5

Gravely D13003

Tube, Caster Axle

$20.99

$

In Stock, only 2 left!

0

6

Gravely 00960129

Bolt, .50-13 x 5.50 Hex 5
(Superseded to 05901632)

$6.99

$

Usually ships in 4-12 days

0

7

Gravely 00161397

Pin, LNC .438 x 2.00

$9.49

$

In Stock, only 2 left!

0

8

Gravely 00164145

C-Spacer, 1.00 x 1.77 x .500

$3.99

$

In Stock, Qty 7

0

9

Gravely 00960702

Washer, .375 Regular Flat
(Superseded to 06435900)

$1.49

$

In Stock, only 2 left!

0

10

Gravely 03393800

Spring, Discharge Chute

$5.99

$

Usually ships in 4-12 days

0

11

Gravely TCA16387

Chute, Discharge Assembly

$35.99

$

In Stock, only 3 left!

0

12

Gravely H141123

Retainer

$

$

Not available

13

Gravely 00964022

Locknut, .38-16 Crown

$

$

Not available

14

Gravely 00968087

Locknut, 3/8-16 Nyloc

$

$

Not available

15

Gravely 00964025

Locknut, .4375-14 Crown
(Superseded to 06508200)

$3.99

$

Usually ships in 4-12 days

0

16

Gravely D38128

Spring, COM 1.22 x .162 x 2.50

$18.99

$

Usually ships in 4-12 days

0

17

Gravely D33062

Keeper, Spring

$38.99

$

Usually ships in 4-12 days

0

18

Gravely D15032

Weldment, Idler Arm

$34.99

$

Usually ships in 4-12 days

0

19

Gravely 00424390

Snap Ring, 1.00 x .042 External
(Superseded to 05700160)

$3.49

$

Usually ships in 4-12 days

0

20

Gravely 05237500

Decal-Pro 1536H

$

$

Not available

21

Gravely 00203935

Weldment, 36" Deck Shield W/GRVLY

$

$

Not available

22

Gravely D38007

Belt, HB 74.3 Elbow AMD OHR

$62.99

$

In Stock, only 1 left!

0

23

Gravely 00960052

Bolt, .38-16 x 2.50 Hex 5

$

$

Not available

24

Gravely 00964501

Washer, .406 x .813 x .065 Flat
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

25

Gravely D18032

Pulley, Flat 5.00X.375 W/BRG
(Superseded to 07346700)

$79.99

$

In Stock, only 3 left!

0

26

Gravely D13023

Bushing, .380 x 1.00 x .410

$19.99

$

Usually ships in 4-12 days

0

27

Gravely 00964502

Washer, .375 x 1.50 x .063 Flat
(Superseded to 06439300)

$3.49

$

In Stock, Qty 12

0

28

Gravely 00964024

Locknut, .75-16 Crown
(Superseded to 06500031)

$3.99

$

In Stock, Qty 12

0

29

Gravely 03399703

Washer, .75 x 1.3125 x .120

$3.99

$

In Stock, Qty 11

0

30

Gravely 03399702

Pulley, Spline Spindle LSE

$75.99

$

Usually ships in 4-12 days

0

31

Gravely 00960502

Nut, .38-16 Standard Hex 5

$

$

Not available

32

Gravely 00999538

Trim, 1/4" Trim-Lok Edge

$5.99

$

Usually ships in 4-12 days

0

33

Gravely D23040

J-Bolt, .38-16 x 7.88

$11.99

$

Usually ships in 4-12 days

0

34

Gravely 00203918

Weldment, Idler Pivot Mount
(Superseded to 05180151)

$48.99

$

Usually ships in 4-12 days

0

35

Gravely 05901321

Bolt, Hex .6250-11 1.5" Grade 8
(Superseded to 05901723)

$3.99

$

Usually ships in 4-12 days

0

36

Gravely M119352

Knob, .38-16 Insert

$3.99

$

In Stock, Qty 6

0

37

Gravely 00963033

Bolt, .38-16 x .750 Round Head Square Neck

$

$

Not available

38

Gravely 00200260

Assembly, Spindle Housing
(Superseded to 00200262)

$250.99

$

In Stock, only 1 left!

0

39

Gravely D18055

Washer, .630 x 1.50 x .250 Flat
(Superseded to 06401033)

$6.99

$

In Stock, only 3 left!

0

40

Gravely GDU10231

Blade, 18.000 x .80 Lift

$27.99

$

In Stock, Qty 20+

0

41

Gravely 00967348

Bolt, .625-11 x 2.00 Hex 8
(Superseded to 05901725)

$5.99

$

In Stock, Qty 12

0

42

Gravely 00963020

Bolt, .38-16 x 1.00 Round Head Square Neck
(Superseded to 06223600)

$2.49

$

In Stock, Qty 19

0

43

Gravely 00960045

Bolt, .38-16 x .750 Hex 5
(Superseded to 05959400)

$1.49

$

In Stock, only 1 left!

0

44

Gravely 00963029

Bolt, .4375-14 x 1.25 Round Head Square Neck
(Superseded to 06200130)

$

$

Not available

45

Gravely 00203934

Weldment, Caster Support w/Gravely Paint

$

$

Not available

46

Gravely 00203933

Weldment, Caster Yoke w/Gravely Paint

$204.99

$

Usually ships in 4-12 days

0

47

Gravely 03748501

Assembly, Gravely 36" Deck with Decal

$

$

Not available
