991005 (PM 100Z) - Gravely Pro-Master 40" Zero-Turn Mower, 18hp Kohler (SN: 000101 & Above) 40" MOWER DRIVE Parts Diagram

Pro-Master 40" Zero-Turn Mower, 18hp Kohler

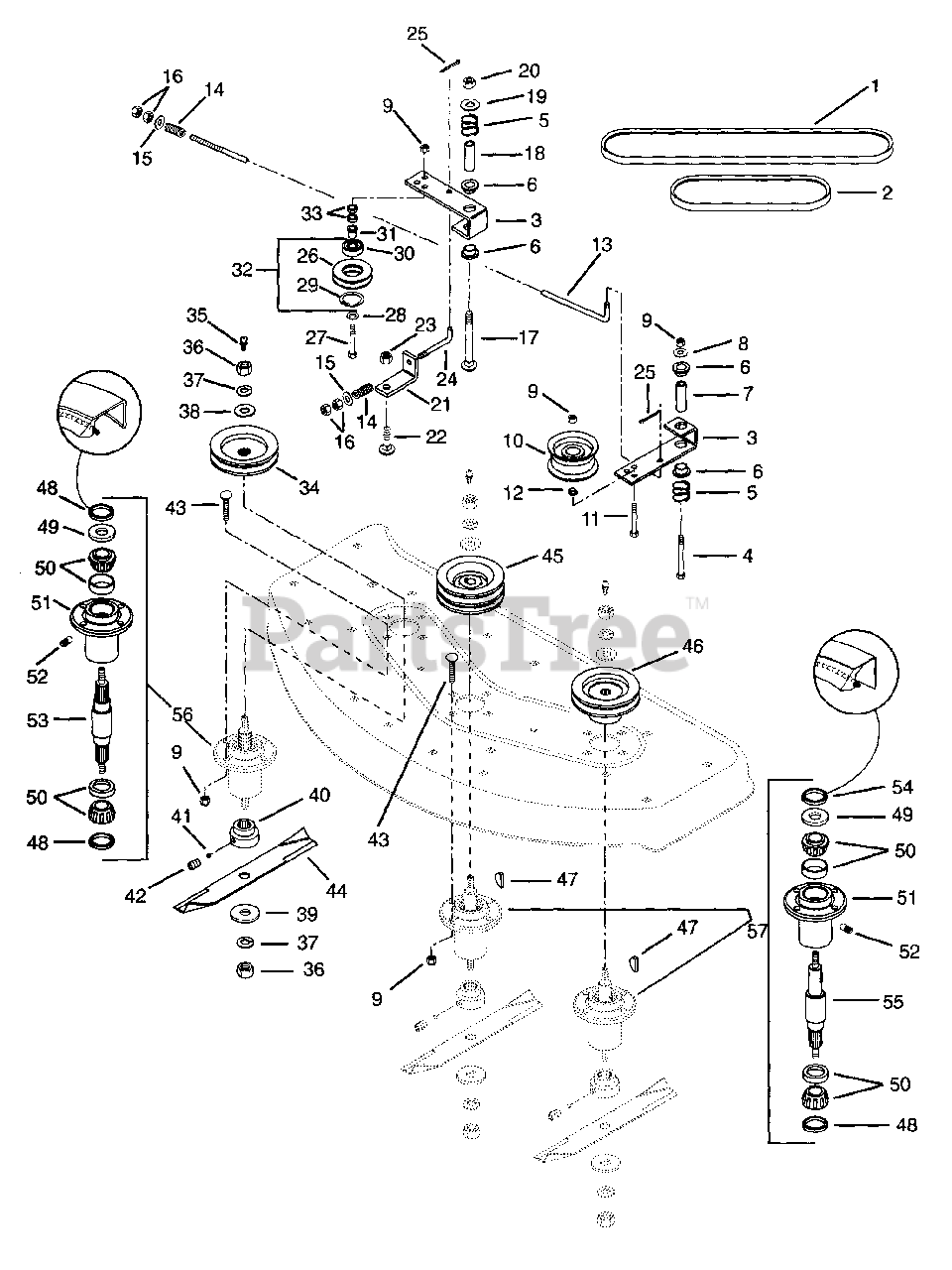

40" MOWER DRIVE Parts Diagram

  • Title

1

Gravely 07225400

V-Belt A-Section 48.00 x 513/.031

$

$

Not available

2

Gravely 07225500

V-Belt A-Section 40.60 x .516/.031

$38.99

$

In Stock, Qty 13

0

3

Gravely 034120

Arm, Idler Pivot
(Superseded to 08905900)

$82.99

$

In Stock, only 1 left!

0

4

Gravely 189304

Bolt-Hex .38-16 x 3.25 Grade 5
(Superseded to 05901817)

$3.99

$

In Stock, only 1 left!

0

5

Gravely 020444

Spring-Compression .085 x .80 x 1.00
(Superseded to 08329100)

$13.99

$

In Stock, only 2 left!

0

6

Gravely 049669

Bushing-Flange .762 x 1.0 x .580 x 1.48

$

$

Not available

7

Gravely 034938

Bushing, Steel .437 x .750 x 2.44
(Superseded to 08818500)

$34.99

$

Usually ships in 4-12 days

0

8

Gravely 120388

Washer-Flat-Steel .438 x 1.000 x .083
(Superseded to 06401008)

$1.49

$

In Stock, only 2 left!

0

9

Gravely 456004

Nut-Locking-Nylon .375-16 Grade 2
(Superseded to 06500831)

$2.49

$

In Stock, Qty 19

0

10

Gravely 034286

Idler-Flat 4-.687 x .38
(Superseded to 07327800)

$79.99

$

In Stock, Qty 15

0

11

Gravely 180132

Bolt-Hex .38-16 x 2.25 Grade 5
(Superseded to 05901640)

$3.99

$

In Stock, Qty 20+

0

12

Gravely 024815

Bushing-Flange .406 x .88 x .270 x .140
(Superseded to 05515800)

$9.49

$

In Stock, Qty 9

0

13

Gravely 09109800

Rod, Idler 25.0

$74.99

$

Usually ships in 4-12 days

0

14

Gravely 011779

Spring-Compression .125 x .78 x 1.00
(Superseded to 08327000)

$15.99

$

In Stock, Qty 5

0

15

Gravely 120392

Washer-Flat-Steel .281 x .625 x .065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 16

0

16

Gravely 120377

Nut-Hex .375-16 Grade 2
(Superseded to 06500917)

$0.99

$

In Stock, only 2 left!

0

17

Gravely 126803

Bolt-Round Head Square Neck .50-16 x 3.50
(Superseded to 06218500)

$5.99

$

In Stock, only 1 left!

0

18

Gravely 034119

Spacer .560 x .750 x 2.437
(Superseded to 08820500)

$17.99

$

Usually ships in 4-12 days

0

19

Gravely 415543

Washer-Flat-Steel .531 x 1.250 x .100
(Superseded to 06441000)

$2.99

$

In Stock, Qty 15

0

20

Gravely 414074

Nut-Locking .50-13 Hex
(Superseded to 06500827)

$3.99

$

In Stock, only 3 left!

0

21

Gravely 038713

Bracket, Belt Tensioner
(Superseded to 08928800)

$

$

Not available

22

Gravely 126358

Bolt-Round Head Square Neck .31-18 x 1.0
(Superseded to 06200231)

$1.49

$

In Stock, Qty 13

0

23

Gravely 419455

Nut-Locking-Nylon .312-18 Grade 2
(Superseded to 06500820)

$0.99

$

Usually ships in 4-12 days

0

24

Gravely 038714

Rod, Idler
(Superseded to 08876000)

$

$

Not available

25

Gravely 121222

Pin-Cotter .09 x .75
(Superseded to 06706900)

$0.99

$

In Stock, Qty 5

0

26

Gravely 038896

Sheave, Idler
(Superseded to 08744300)

$129.99

$

Usually ships in 4-12 days

0

27

Gravely 180130

Bolt-Hex .38-16 x 2.00 Grade 5
(Superseded to 05901718)

$2.99

$

In Stock, Qty 13

0

28

Gravely 446470

Washer-Flat-Steel .375 x 1.125 x .065
(Superseded to 06401139)

$2.49

$

In Stock, Qty 5

0

29

Gravely 018960

Ring-Retaining-Internal 2.054 x .062
(Superseded to 05713100)

$3.99

$

Usually ships in 4-12 days

0

30

Gravely 038898

Bearing-Ball 1.85 x .78 x .55
(Superseded to 05425100)

$51.99

$

In Stock, only 2 left!

0

31

Gravely 038897

Bushing-Flange .786 x 1.0 x .79
(Superseded to 05521500)

$21.99

$

Usually ships in 4-12 days

0

32

Gravely 038900

Assembly, Idler Sheave
(Superseded to 08930300)

$242.99

$

Usually ships in 4-12 days

0

33

Gravely 014672

Bushing .406 x .750 x .188
(Superseded to 03488200)

$5.99

$

In Stock, Qty 12

0

34

Gravely 08894900

Sheave
(Superseded to 58803500)

$119.99

$

Usually ships in 4-12 days

0

35

Gravely 411010

Fitting-Lube 1/8
(Superseded to 07012500)

$3.99

$

In Stock, only 4 left!

0

36

Gravely 124589

Nut-Hex .625-11 Grade 2
(Superseded to 06535600)

$2.99

$

Usually ships in 4-12 days

0

37

Gravely 06300700

Washer-Locking .625 x .156
(Superseded to 06309500)

$2.49

$

Usually ships in 4-12 days

0

38

Gravely 033845

Washer-Flat-Steel .97 x 1.865 x .063
(Superseded to 06427400)

$2.49

$

In Stock, only 1 left!

0

39

Gravely 06435200

Washer
(Superseded to 06400829)

$3.99

$

In Stock, Qty 8

0

40

Gravely 08886500

Hub

$64.99

$

Usually ships in 4-12 days

0

41

Gravely 03191400

Plug

$6.49

$

Usually ships in 4-12 days

0

42

Gravely 06005400

Screw-Set .25-20 x .25

$3.99

$

Usually ships in 4-12 days

0

43

Gravely 126406

Bolt, Round Head Square Neck .38-16 x 1.375
(Superseded to 06200416)

$3.99

$

In Stock, Qty 20+

0

44

Gravely 014668

Blade
(Superseded to 03498400)

$18.99

$

In Stock, Qty 20+

0

45

Gravely 08896400

Sheave

$

$

Not available

46

Gravely 08896300

Sheave

$113.99

$

Usually ships in 4-12 days

0

47

Gravely 124553

Key-Woodruff .25 x 1
(Superseded to 06608900)

$3.99

$

In Stock, Qty 20+

0

48

Gravely 05613000

Seal 1.987 x 1.375 x .313

$10.99

$

In Stock, Qty 11

0

49

Gravely 06416600

Washer-Flat-Steel 1.007 x 1.542 x .062

$2.99

$

In Stock, Qty 20+

0

50

Gravely 038199

Assembly, Bearing Cup & Cone
(Superseded to 21245800)

$25.99

$

In Stock, Qty 12

0

51

Gravely 021215

Housing, Bearing
(Superseded to 08722700)

$134.99

$

Usually ships in 4-12 days

0

52

Gravely 08896800

Relief Fitting - Grease

$13.99

$

Usually ships in 4-12 days

0

53

Gravely 021216

Shaft, Spindle
(Superseded to 58802800)

$85.99

$

In Stock, only 3 left!

0

54

Gravely 039971

Seal 1.987 x 1.500 x .313
(Superseded to 05611400)

$15.99

$

In Stock, only 1 left!

0

55

Gravely 034603

Shaft, Spindle
(Superseded to 58802900)

$125.99

$

Usually ships in 4-12 days

0

56

Gravely 58802300

Service Kit
(Superseded to 58803600)

Note: (Contains items 1 each of 38-42,49 & 51-53, 2 each of 26, 37, 48 & 49

$250.99

$

In Stock, only 1 left!

0

57

Gravely 58802400

Service Kit
(Superseded to 58803600)

Note: (Contains items 1 each of 39-42, 48, 49, 51-52 & 54-55, 2 each of 36, 37 & 50

$250.99

$

In Stock, only 1 left!

0
