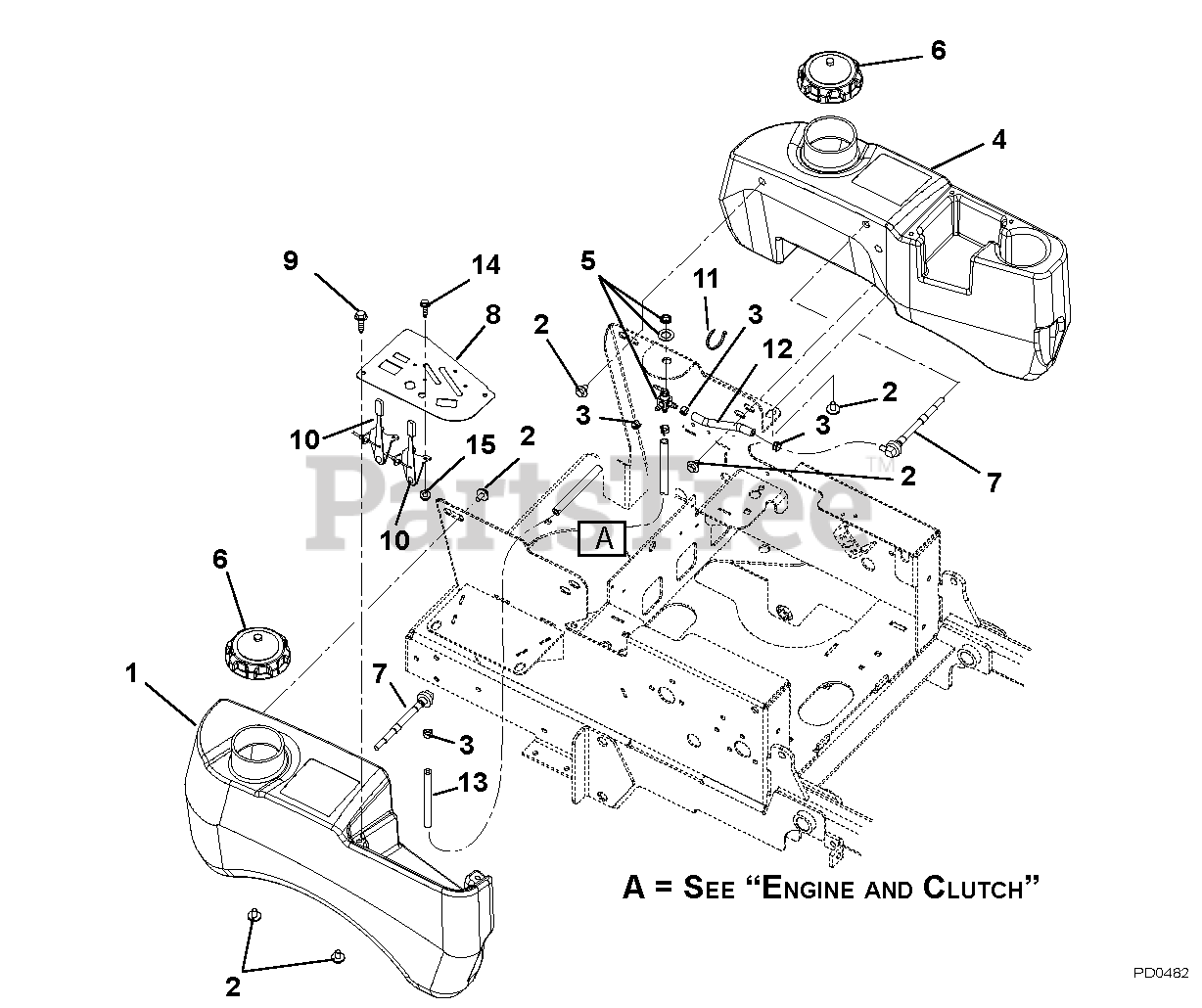

991083 (ZT 52 HD) - Gravely 52" Zero-Turn Mower, Kawasaki (SN: 000101 - 009999) Fuel Tanks and Hoses Parts Diagram

52" Zero-Turn Mower, Kawasaki

Fuel Tanks and Hoses Parts Diagram

  • Title

1

3973100

Tank, Fuel RH (S/N 101 – 2499)

Note: (S/N 101 – 2499)

$

$

Not available

1

4244900

Tank, Fuel RH (S/N 2500 and up)

Note: (S/N 2500 and up)

$

$

Not available

2

7000018

Bolt, SEMS .31-18 x .62

$

$

Not available

3

3278800

Clamp, Fuel Line

$

$

Not available

4

3973200

Tank, Fuel LH (S/N 101 – 2499)

Note: (S/N 101 – 2499)

$

$

Not available

4

4245000

Tank, Fuel LH (S/N 2500 and up)

Note: (S/N 2500 and up)

$

$

Not available

5

9258200

Valve, Fuel

$

$

Not available

6

3859100

Cap, Fuel (S/N 101 – 2499)

Note: (S/N 101 – 2499)

$

$

Not available

6

4237300

Cap, Fuel Ratcheting (S/N 2500 and up)

Note: (S/N 2500 and up)

$

$

Not available

7

3900400

Assembly, Tank Fuel Pick-up

$

$

Not available

8

4041751

Panel, Control

$

$

Not available

9

Gravely 6100211

Screw, Machine 10-24 x .38 Stainless

$

$

Not available

10

6900422

Cable, Control

$

$

Not available

11

Gravely 7517300

Cable Tie

$

$

Not available

12

Gravely 3278100

Hose, .25 Low-PERM Bulk Gas

$

$

Not available

13

Gravely 3278100

Hose, .25 Low-PERM Bulk Gas

$

$

Not available

14

Gravely 6116700

Screw, Machine 10-24 x .50 Hex Washer Head

$

$

Not available

15

Gravely 6536000

Nut, Locking-Nylon 10-24 with Insert

$

$

Not available
