991097 (Pro-Turn 160) - Gravely Pro-Turn 60" Zero-Turn Mower, Kohler EFI (SN: 021000 - 029999) Brake Assembly Parts Diagram

Pro-Turn 60" Zero-Turn Mower, Kohler EFI

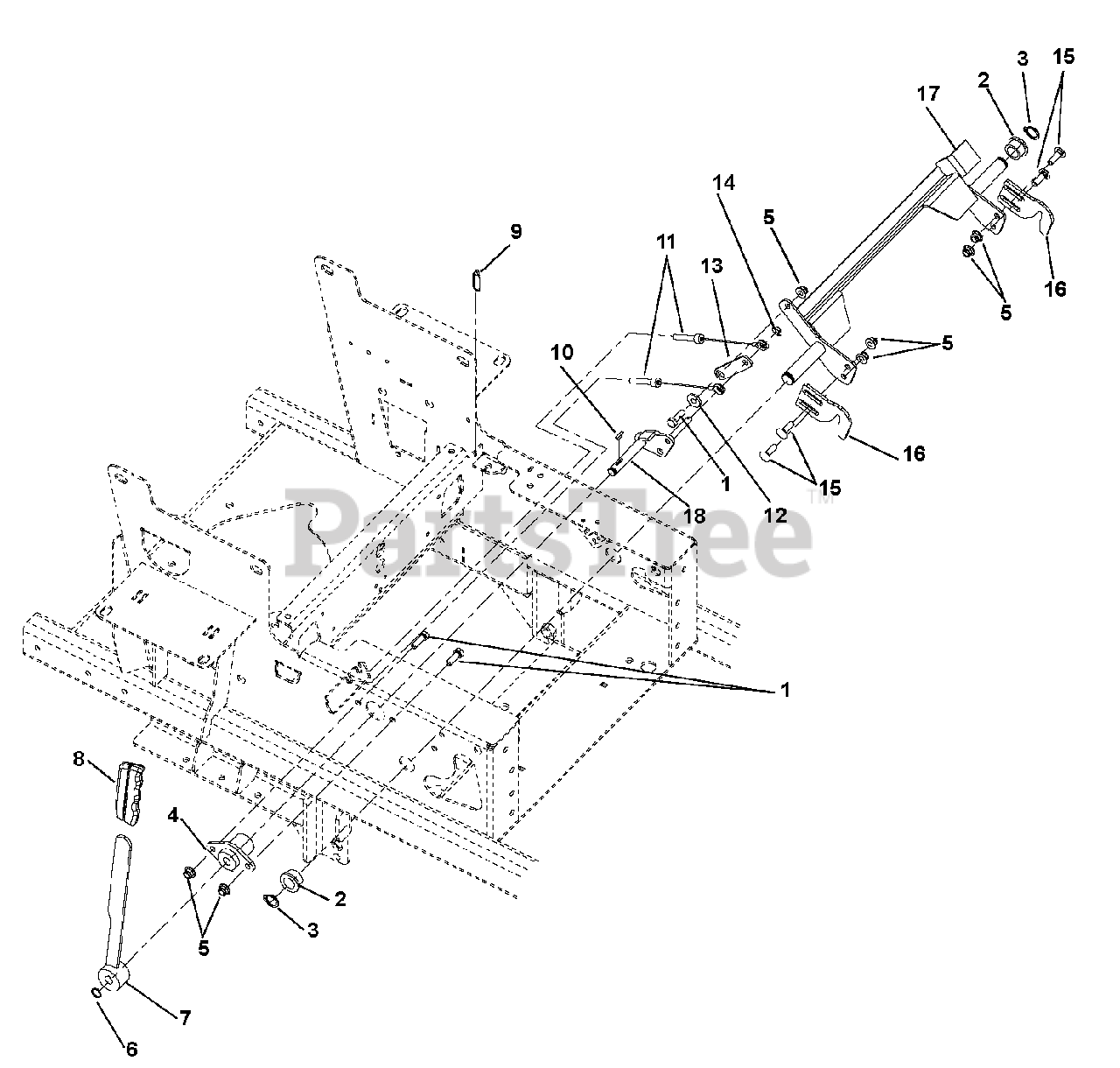

Brake Assembly Parts Diagram

  • Title

1

Gravely 05946900

Bolt, Hex .31-18 x 1.00
(Superseded to 05901701)

$1.49

$

In Stock, Qty 8

0

2

Gravely 05503900

Bushing, Flange .750 x 1.000 x .625 x 1.250

$12.99

$

In Stock, Qty 9

0

3

Gravely 05714600

Ring, Retaining External .689 x .077

$2.49

$

In Stock, Qty 5

0

4

Gravely 01522000

Bushing, Flanged

$21.99

$

In Stock, only 1 left!

0

5

Gravely 06545400

Nut, Nyloc Flange .31-18
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 05717100

Ring, Retaining External .500 x .050

$2.49

$

Usually ships in 4-12 days

0

7

Gravely 03795900

Weldment, Parking Brake Arm

$146.99

$

In Stock, only 1 left!

0

8

Gravely 03826900

Grip, Parking Brake

$3.99

$

In Stock, Qty 10

0

9

Gravely 07517300

Cable Tie

$

$

Not available

10

Gravely 06608400

Key, Woodruff .13 x .63 HRD #5

$2.99

$

In Stock, only 3 left!

0

11

Gravely 06900318

Cable, Brake Actuating

$40.99

$

In Stock, only 1 left!

0

12

Gravely 01305900

Bushing, Flange .325 x .499 x .26 x .88

$2.49

$

In Stock, Qty 16

0

13

Gravely 03780900

Plate, Neutral Interlock

$12.99

$

Usually ships in 4-12 days

0

14

Gravely 06514900

Nut, Push .312

$0.99

$

In Stock, Qty 13

0

15

Gravely 06216100

Bolt, Round Head Square Neck .31-18 x 1.00
(Superseded to 06200231)

$1.49

$

In Stock, Qty 13

0

16

Gravely 03861451

Neutral Lock Latch

$13.99

$

Usually ships in 4-12 days

0

17

Gravely 03878700

Weldment, 100I Neutral Lock

$142.99

$

Usually ships in 4-12 days

0

18

Gravely 03251100

Weldment, Park Brake Arm

$62.99

$

Usually ships in 4-12 days

0
