991099 (ZT 48 HD) - Gravely 48" Zero-Turn Mower, Kawasaki, CARB (SN: 045000 - 049999) Fuel System - CARB Parts Diagram

48" Zero-Turn Mower, Kawasaki, CARB

Fuel System - CARB Parts Diagram

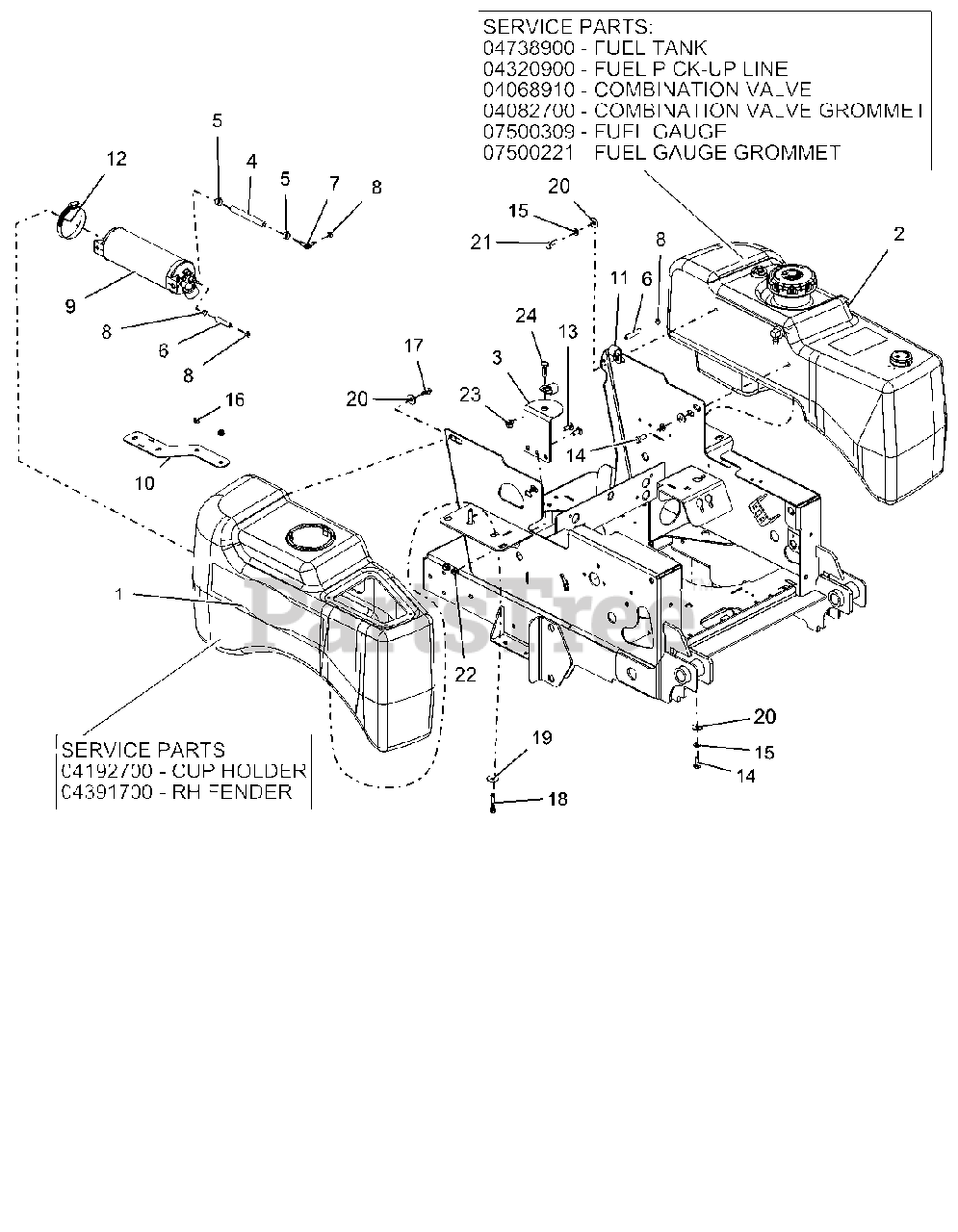

  • Title

1

Gravely 04685900

ASM, FENDER W/CUPHOLDER

$339.99

$

Usually ships in 4-12 days

0

1

Gravely 04192700

CUP HOLDER

Note: SERVICE PART

$21.99

$

Usually ships in 4-12 days

0

1

Gravely 04391700

RH FENDER
(Superseded to 04685900)

Note: SERVICE PART

$339.99

$

Usually ships in 4-12 days

0

2

Gravely 04739000

HD, FUEL TANK ASSEMBLY

$594.99

$

Usually ships in 4-12 days

0

2

Gravely 04738900

FUEL TANK

Note: SERVICE PART

$

$

Not available

2

Gravely 04320900

FUEL PICK-UP LINE

Note: SERVICE PART

$39.99

$

In Stock, Qty 12

0

2

Gravely 04068910

COMBINATION VALVE
(Superseded to 05185600)

Note: SERVICE PART

$13.99

$

In Stock, only 2 left!

0

2

Gravely 04082700

COMBINATION VALVE GROMMET

Note: SERVICE PART

$3.99

$

In Stock, Qty 20+

0

2

Gravely 07500309

FUEL GAUGE

Note: SERVICE PART

$47.99

$

In Stock, Qty 14

0

2

Gravely 07500221

FUEL GAUGE GROMMET

Note: SERVICE PART

$5.99

$

In Stock, Qty 15

0

3

Gravely 00361951

BRKT, FUEL VALVE MTG - BLK

$6.99

$

Usually ships in 4-12 days

0

4

Gravely 03278100

.25 LOW-PERM GAS HOSE 3.00" LG - TANK VENT TO CARBON CANISTER

$0.99

$

In Stock, Qty 20+

0

5

Gravely 03278800

CLAMP, FUEL LINE

$1.49

$

In Stock, Qty 7

0

6

Gravely 03375900

.188 ID LOW-PERM X

$3.49

$

Usually ships in 4-12 days

0

7

Gravely 04097000

FITTING-3/16X1/4 90DEGREE VAC

$14.99

$

Usually ships in 4-12 days

0

8

Gravely 04097700

CLAMP - HOSE, SPRING .188

$1.49

$

Usually ships in 4-12 days

0

9

Gravely 04545900

CANISTER, CARBON 9.3 GAL

$78.99

$

Usually ships in 4-12 days

0

10

Gravely 04546051

PLATE, CANISTER MTG-BLACK

$6.49

$

Usually ships in 4-12 days

0

11

Gravely 06900036

CLAMP, CUSHIONED STEEL .75

$5.99

$

Usually ships in 4-12 days

0

12

Gravely 06940200

CLAMP, HOSE 2.3/3.2

$3.49

$

Usually ships in 4-12 days

0

13

Gravely 06215700

BLT-RDHDSQNK .31-18X.75 G5 YWZC
(Superseded to 06200232)

$2.49

$

In Stock, Qty 20+

0

14

Gravely 05947000

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.49

$

In Stock, Qty 16

0

15

Gravely 06308600

WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

16

Gravely 06500012

NUT-LK-NYL-FLG .25-20 YWZC
(Superseded to 06500813)

$1.49

$

In Stock, Qty 12

0

17

Gravely 06100213

SCR-PLASTITE .25-10X.75 YWZC
(Superseded to 06100231)

$1.49

$

Usually ships in 4-12 days

0

18

Gravely 07400007

SCR-TAP .25-20X1.50 HWH TR YZ

$1.99

$

Usually ships in 4-12 days

0

19

Gravely 06426600

WSHR-FL-STL .281X1.000X.063 YWZC
(Superseded to 06401020)

$0.99

$

In Stock, only 2 left!

0

20

Gravely 06435700

WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.49

$

In Stock, Qty 14

0

21

Gravely 05947800

BLT-HEX .31-18X.875 GR5 YWZC
(Superseded to 05901801)

$2.49

$

Usually ships in 4-12 days

0

22

Gravely 06545400

NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 19

0

23

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

24

Gravely 05948700

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+
