991254 (Pro-Turn Z 48) - Gravely Pro-Turn 48" Zero-Turn Mower, Gravely 764 Pro (SN: 000101 - 001999) Seat Latch Parts Diagram

Pro-Turn 48" Zero-Turn Mower, Gravely 764 Pro

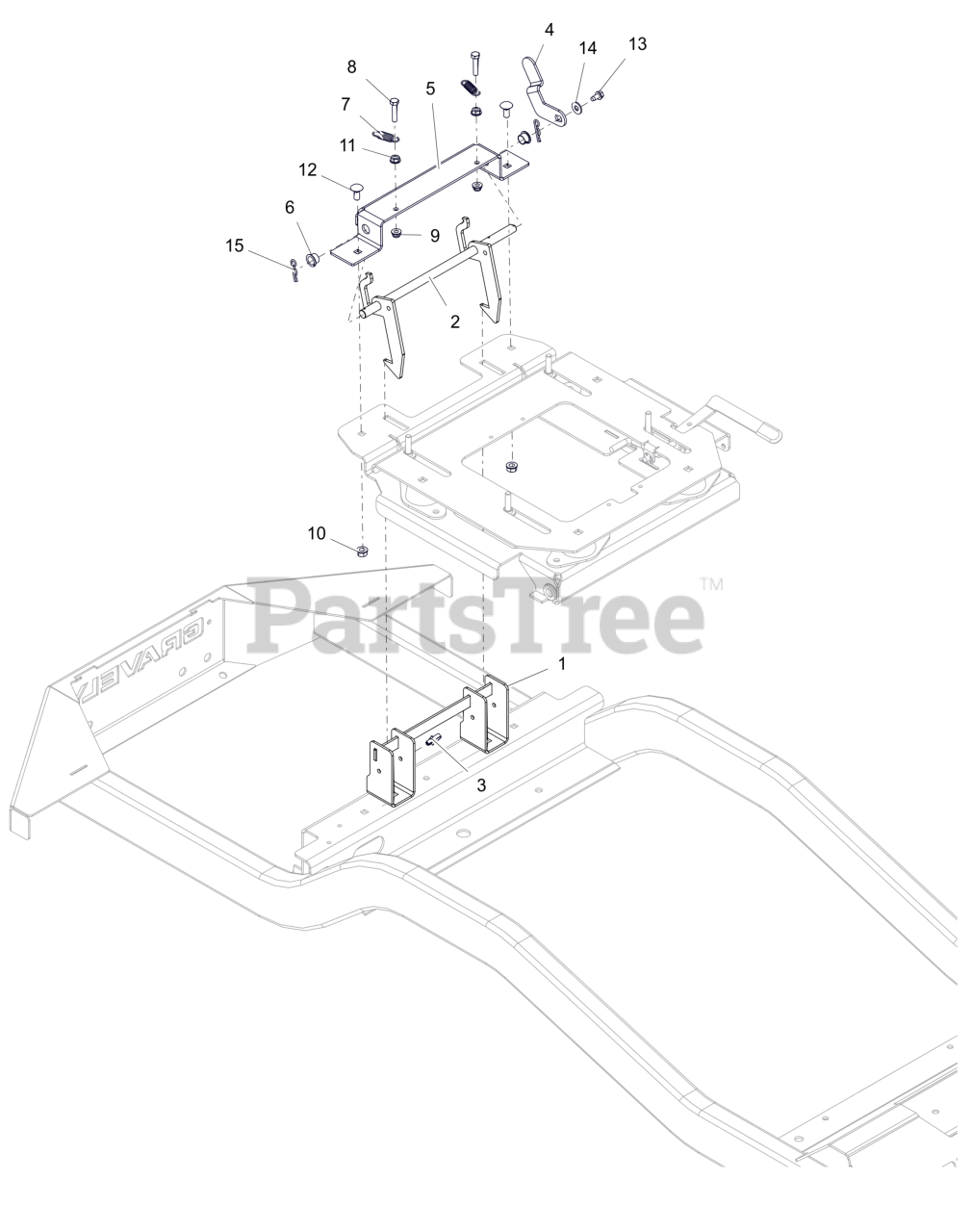

Seat Latch Parts Diagram

  • Title

1

Gravely 05118451

WLDMT, LATCH RECEIVER

$45.99

$

Usually ships in 4-12 days

0

2

Gravely 05118651

WLDMT, SEAT

$51.99

$

Usually ships in 4-12 days

0

3

Gravely 00367900

ROUTING CLIP (1/2" ID)

$1.49

$

In Stock, only 1 left!

0

4

Gravely 05118751

LEVER, SEAT

$9.49

$

Usually ships in 4-12 days

0

5

Gravely 05118851

BRKT, SEAT

$35.99

$

Usually ships in 4-12 days

0

6

Gravely 05500026

BUSHING, POLYLINER-.50 SPLIT

$2.99

$

In Stock, Qty 20+

0

7

Gravely 08314100

SG-TENS .063X.44X1.56

$5.99

$

In Stock, Qty 12

0

8

Gravely 05901738

BLT, HEX .25-20X1.25 G5 ZCC

$1.99

$

In Stock, Qty 5

0

9

Gravely 06500813

NUT,NYL-FLG .25-20 GF ZCC

$1.49

$

In Stock, Qty 12

0

10

Gravely 06500840

NUT,LK-CTR-FLG .31-18 GF ZCC

$0.99

$

In Stock, Qty 6

0

11

Gravely 06500824

NUT-SPNLK-FLG .25-20 ZC120

$0.99

$

In Stock, Qty 17

0

12

Gravely 06200232

BLT,RHSN .31-18X.75 G5 ZCC

$2.49

$

In Stock, Qty 15

0

13

Gravely 07400122

SCR-TAP .25-20X.50 HWH ZCC

$0.99

$

In Stock, Qty 20+

0

14

Gravely 06401124

WSHR, FLT .312X.734X.065 ZCC

$0.99

$

In Stock, Qty 10

0

15

Gravely 06700224

PIN, HAIR-INT .08X.38X1.42 ZCC

$2.49

$

In Stock, only 2 left!

0
