991302 (Compact-Pro 34) - Gravely Compact-Pro 34" Zero-Turn Mower, Kawasaki (SN: 003000 - 019999) Deck, Mounting Arms And Belt Guards Parts Diagram

Compact-Pro 34" Zero-Turn Mower, Kawasaki

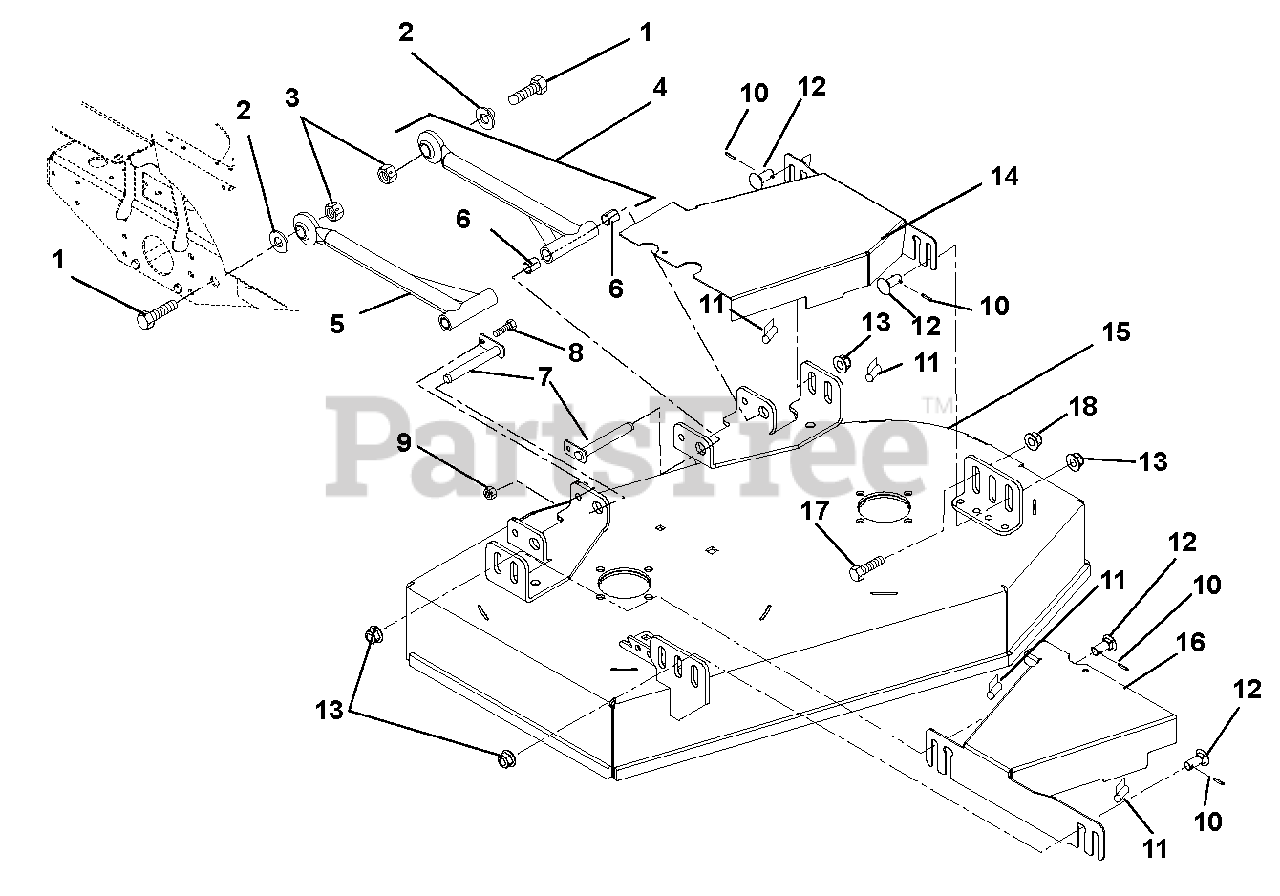

Deck, Mounting Arms And Belt Guards Parts Diagram

  • Title
1

Gravely 05900003

Bolt, Hex .875-9 x 3.00

$6.99

$

Usually ships in 4-12 days

0

2

Gravely 05512600

Bushing, Sleeve .875 x 1.25 x .531

$5.99

$

Usually ships in 4-12 days

0

3

Gravely 06539700

Nut, Locking Center .875-9

$5.99

$

In Stock, only 4 left!

0

4

Gravely 09282000

Assembly, Mower Mounting (Includes Items 5 and 6)

Note: (Includes Items 5 and 6)

$213.99

$

Usually ships in 4-12 days

0

5

Gravely 09282151

Arm, Mower Mounting

$142.99

$

Usually ships in 4-12 days

0

6

Gravely 05435900

Bearing, .75 x .875 x 1.00

$5.99

$

In Stock, Qty 11

0

7

Gravely 09238900

Weldment, Mower Mounting Pin

$60.99

$

In Stock, only 3 left!

0

8

Gravely 05948700

Bolt, Hex .38-16 x 1.00
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 06545500

Nut, Nyloc Flange 3/8-16
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 05803400

Pin, Roll .125 x .75

$0.99

$

In Stock, Qty 10

0

11

Gravely 00929000

Seal, Trim-LOK Bulk .06 Bubble

$15.99

$

Usually ships in 4-12 days

0

12

Gravely 06200206

Bolt, Round Head Square Neck .50-13 x 1.25 SPL

$

$

Not available

13

Gravely 06500010

Nut, Nyloc Flange .50-13
(Superseded to 06500810)

$1.99

$

In Stock, Qty 20+

0

14

Gravely 04365851

Weldment, Belt Guard 34" Left Hand

$

$

Not available

15

Gravely 04950653

Weldment, 34" Mower Deck, Rear Discharge

$994.99

$

Usually ships in 4-12 days

0

16

Gravely 04365951

Weldment, Belt Guard 34" Right Hand

$

$

Not available

17

Gravely 06215700

Bolt, Round Head Square Neck .31-18 x .75 Grade 5 (991301)
(Superseded to 06200232)

Note: (991301)

$2.49

$

In Stock, Qty 20+

0

18

Gravely 06545400

Nut, Locking Nylon Flange .31-18 YZ (991301)
(Superseded to 06500809)

Note: (991301)

$1.49

$

In Stock, Qty 20+

0
