992003 (PM 200) - Gravely Pro-Master 60" Zero-Turn Mower, 20hp Kohler (SN: 000701 & Above) MOWER LIFT SYSTEM Parts Diagram

Pro-Master 60" Zero-Turn Mower, 20hp Kohler

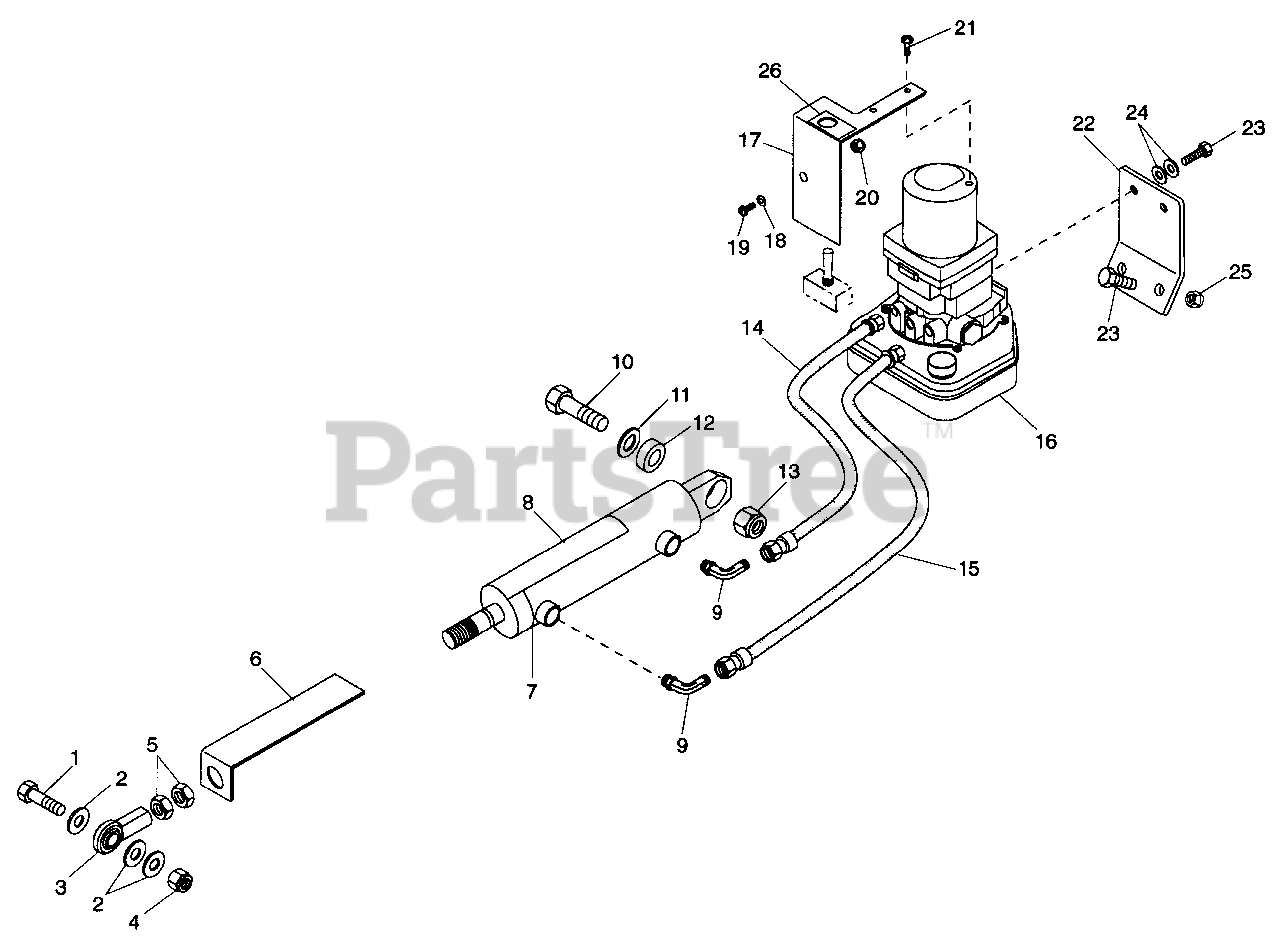

MOWER LIFT SYSTEM Parts Diagram

  • Title

1

Gravely 428697

BLT-HEX .625-11 X 2.50
(Superseded to 05969300)

$4.99

$

In Stock, only 2 left!

0

2

Gravely 446239

WSHR-FL-STL .625 X 1.375 X .109
(Superseded to 06430600)

$

$

Not available

3

Gravely 092216

ROD END
(Superseded to 09221600)

$25.99

$

Usually ships in 4-12 days

0

4

Gravely 418692

NUT-LK-NYL .625-11
(Superseded to 06540700)

$3.99

$

In Stock, Qty 14

0

5

065003

NUT-JAM .625-18

$

$

Not available

6

Gravely 092217

STRAP-HEIGHT OF CUT INDICATOR
(Superseded to 09255900)

$22.99

$

Usually ships in 4-12 days

0

7

Gravely 092069

CYL, HYD LIFT
(Superseded to 09206900)

$

$

Not available

8

Gravely 077080

DECAL-HEIGHT OF CUT
(Superseded to 07708000)

$

$

Not available

9

Gravely 018826

ADPT 2503-4-4
(Superseded to 08800700)

$22.99

$

Usually ships in 4-12 days

0

10

Gravely 180181

BLT-HEX .50-13 X 2.00
(Superseded to 05901929)

$3.49

$

Usually ships in 4-12 days

0

11

Gravely 415543

WSHR-FL-STL .531 X 1.250 X .100
(Superseded to 06441000)

$2.99

$

In Stock, Qty 15

0

12

Gravely 092152

BUSHING, HYD CYL MTG
(Superseded to 09215200)

$34.99

$

Usually ships in 4-12 days

0

13

Gravely 435507

NUT-LK-NYL .50-13
(Superseded to 06500830)

$2.49

$

In Stock, Qty 20+

0

14

Gravely 092215

ASM, HOSE PUMP TO CYL
(Superseded to 09221500)

$

$

Not available

15

Gravely 092214

ASM, HOSE PUMP TO CYL
(Superseded to 09221400)

$40.99

$

Usually ships in 4-12 days

0

16

Gravely 087250

PUMP, ELECTRIC-HYDRAULIC
(Superseded to 08725000)

$1006.99

$

Usually ships in 4-12 days

0

17

Gravely 091047

SWITCH PLATE, LIFT PUMP
(Superseded to 09114000)

$5.99

$

Usually ships in 4-12 days

0

18

Gravely 120392

WSHR-FL-STL .281 X .625 X .065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 16

0

19

Gravely 160541

SCR-MCH .25-20 PAN HD
(Superseded to 06113500)

$1.99

$

In Stock, only 3 left!

0

20

Gravely 419454

NUT-LK-NYL .250-20 PL
(Superseded to 06500832)

$4.99

$

In Stock, only 2 left!

0

21

Gravely 074085

SCR-TAP 12-14 X .50 CRPH PL
(Superseded to 07408500)

$

$

Not available

22

Gravely 091040

BRKT, HYD PUMP MTG
(Superseded to 09104000)

$

$

Not available

23

Gravely 180120

BLT-HEX .38-16 X .75 PL
(Superseded to 05901702)

$1.49

$

In Stock, only 2 left!

0

24

Gravely 120394

WSHR-FL-STL .406 X .812 X .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

25

Gravely 456004

NUT-LK-NYL .375-16 W/INSR
(Superseded to 06500831)

$2.49

$

In Stock, Qty 19

0

26

Gravely 077108

DECAL, CUTTING HT ADJ
(Superseded to 07710800)

$

$

Not available
