992150 (PM 252H XDZ) - Gravely Pro-Master 52" Zero-Turn Mower, 27hp Kohler (SN: 000101 - 000400) Control Panel Parts Diagram

Pro-Master 52" Zero-Turn Mower, 27hp Kohler

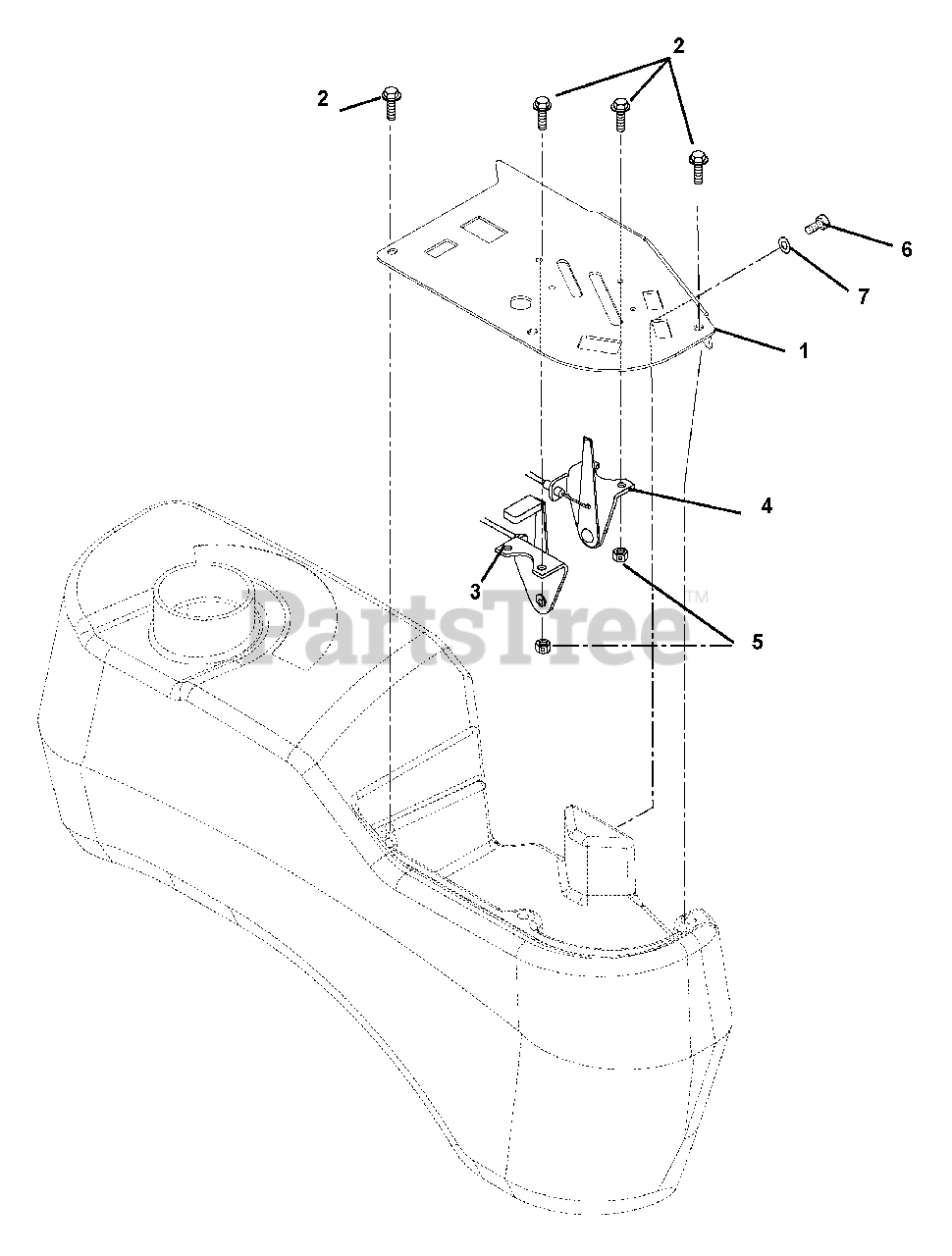

Control Panel Parts Diagram

  • Title
1

Gravely 00453751

Panel, Control

$58.99

$

Usually ships in 4-12 days

0

2

Gravely 06116700

Screw, Machine 10-24 x .50 Hex Washer Head
(Superseded to 05901825)

$0.99

$

In Stock, Qty 20+

0

3

Gravely 06900026

Throttle, Control

$45.99

$

In Stock, only 1 left!

0

4

Gravely 06900025

Choke Control

$34.99

$

Usually ships in 4-12 days

0

5

Gravely 06536000

Nut, Locking Nylon 10-24 With Insert
(Superseded to 06500915)

$0.99

$

In Stock, only 4 left!

0

6

Gravely 05947000

Bolt-Hex .31-18 x .75 Grade 5
(Superseded to 05901704)

$1.49

$

In Stock, Qty 12

0

7

Gravely 06435700

Washer-Flat-Steel .38 x .875 x .083
(Superseded to 06401023)

$1.49

$

In Stock, Qty 14

0
