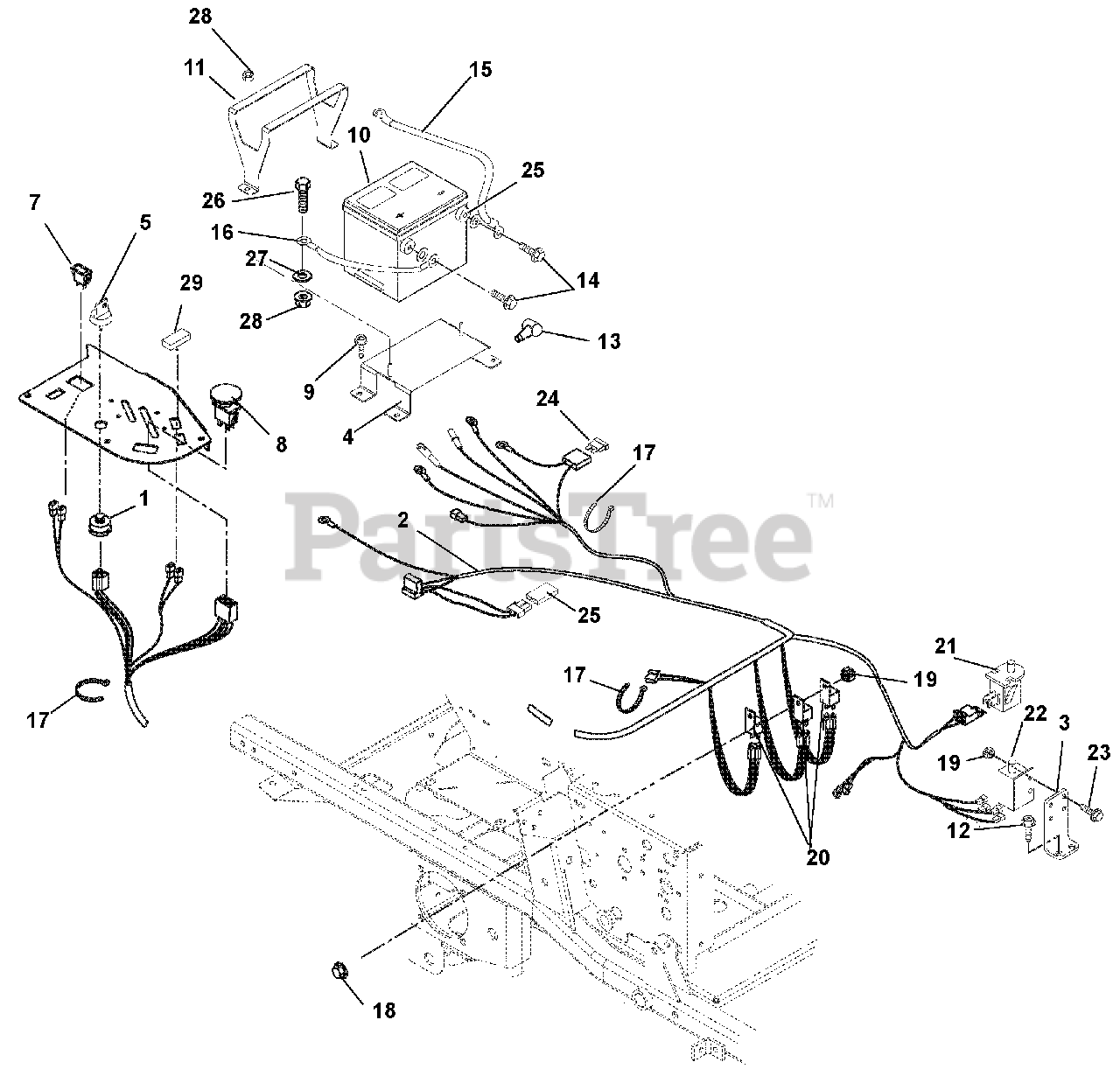

992214 (PM 260H) - Gravely Pro-Master 60" Zero-Turn Mower, Generac Propane (SN: 000101 & Above) Electrical System Parts Diagram

Pro-Master 60" Zero-Turn Mower, Generac Propane

Electrical System Parts Diagram

  • Title

1

Gravely 00464000

Switch, Ignition
(Superseded to 04331600)

$42.99

$

In Stock, Qty 7

0

2

Gravely 04294000

Harness, Vertical A/C, Wire PM200

$175.99

$

In Stock, only 1 left!

0

3

Gravely 09275851

Mount, Safety Switch

$21.99

$

Usually ships in 4-12 days

0

4

Gravely 00976351

Weldment, Battery Support

$

$

Not available

5

Gravely 09287000

Key, with Shield

$15.99

$

In Stock, Qty 20+

0

6

Gravely 21510400

Ignition Key Set

$9.99

$

Usually ships in 4-12 days

0

7

Gravely 03966800

Hour Meter
(Superseded to 09497400)

$22.99

$

In Stock, only 2 left!

0

8

Gravely 01545600

Switch, PTO Clutch

$23.99

$

In Stock, Qty 19

0

9

Gravely 07415400

Screw, Tapping .38-16 x .75 Hex Washer Head
(Superseded to 07400129)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 04087300

Battery

$

$

Not available

11

Gravely 04089351

Bracket, Battery Hold-Down

$71.99

$

Usually ships in 4-12 days

0

12

Gravely 07412000

Screw, Tapping .25-20 x .50 Hex Washer Head
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

13

Gravely 00525800

Battery Terminal Boot, Red

$7.99

$

Usually ships in 4-12 days

0

14

Gravely 00526400

Bolt, Hex .25-20 x .75 Grade 5

$

$

Not available

15

Gravely 00977300

Cable, Starter 18.O Red

$

$

Not available

16

Gravely 00977400

Cable, Ground 18.0 Black

$

$

Not available

17

Gravely 07517300

Cable Tie

$

$

Not available

18

Gravely 06116700

Screw-Machine 10-24 x .50 Hex Washer Head
(Superseded to 05901825)

$0.99

$

In Stock, Qty 20+

0

19

Gravely 06536000

Nut, Locking Nylon 10-24 With Insert
(Superseded to 06500915)

$0.99

$

In Stock, only 4 left!

0

20

Gravely 00432100

Relay (Included with Harness)
(Superseded to 00432101)

Note: (Included with Harness)

$20.99

$

In Stock, Qty 20+

0

21

Gravely 02754100

Switch, Snap Mounting

$9.49

$

In Stock, Qty 20+

0

22

Gravely 03606600

Switch, Double Pole N.O./N.O.

$15.99

$

Usually ships in 4-12 days

0

23

Gravely 06116900

Screw, Machine 10-24 x .75 Hex Washer Head
(Superseded to 05901837)

$2.49

$

In Stock, only 1 left!

0

24

Gravely 00191262

Fuse, 20 Amp

Note: (Included with Harness)

$14.99

$

Usually ships in 4-12 days

0

24

Gravely 21542101

Fuse, 15 Amp

Note: (Included with Harness)

$

$

Not available

24

Gravely 02657600

Fuse, 10 Amp

Note: (Included with Harness)

$

$

Not available

25

Gravely 09293500

Diode, Connector Shell
(Superseded to 09293501)

$11.99

$

In Stock, Qty 20+

0

26

Gravely 05947000

Bolt, Hex .31-18 x .75 Grade 5
(Superseded to 05901704)

$1.49

$

In Stock, Qty 16

0

27

Gravely 06437200

Washer, Flat Steel .344 x .688 x .065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 8

0

28

Gravely 06543100

Nut, Locking Top Flange .31-18
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

29

Gravely 08841200

Light, Indicator
(Superseded to 05128700)

$11.99

$

In Stock, only 2 left!

0
