992260 (Pro-Turn 260) - Gravely Pro-Turn 60" Zero-Turn Mower, EFI, CARB (SN: 040000 - 040999) Fuel System - CARB Parts Diagram

Pro-Turn 60" Zero-Turn Mower, EFI, CARB

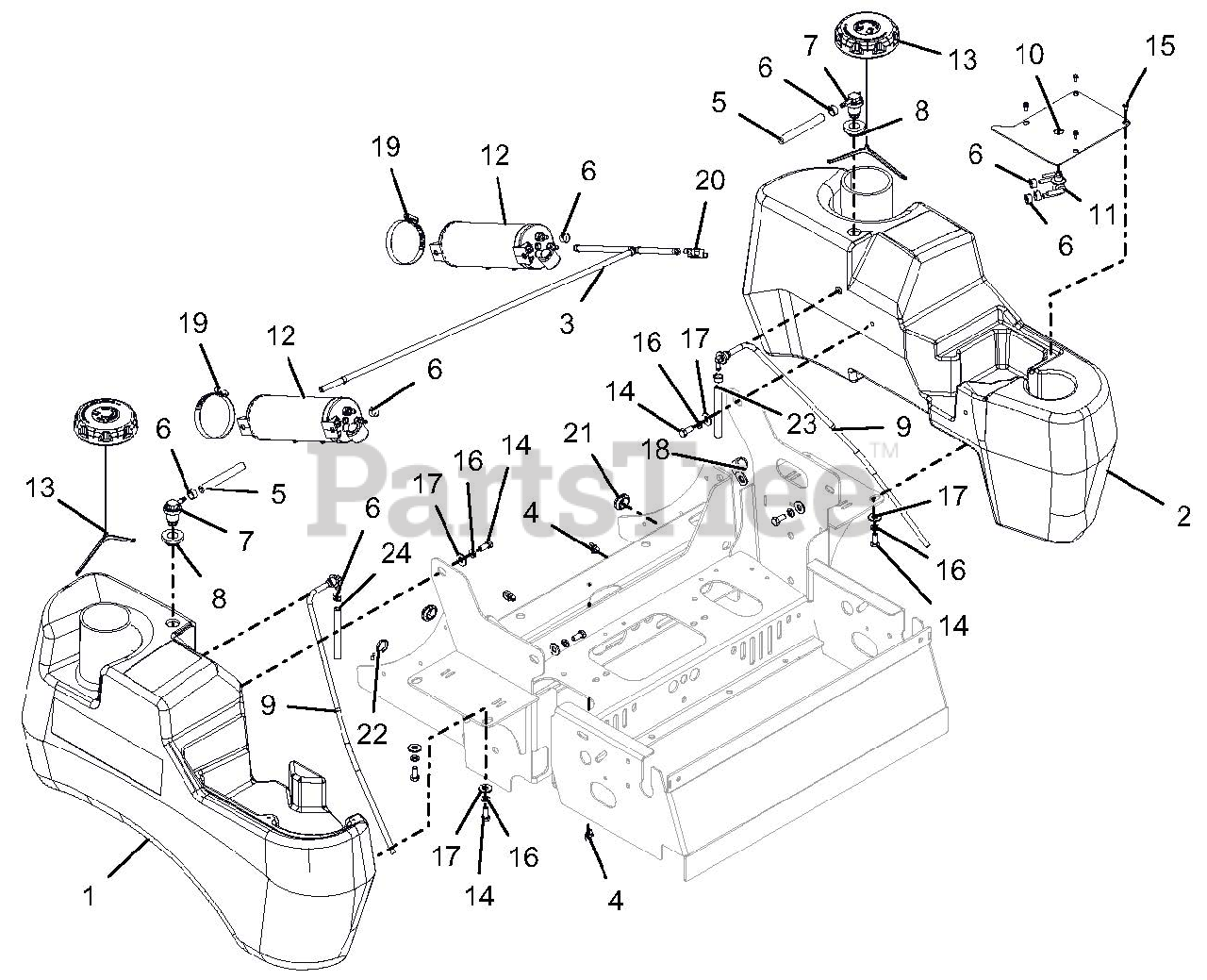

Fuel System - CARB Parts Diagram

  • Title

1

Gravely 04340800

TANK, RH LARGE GRAVELY FUEL
(Superseded to 04341200)

$

$

Not available

2

Gravely 04340900

TANK, LH LARGE GRAVELY FUEL
(Superseded to 04341300)

$230.99

$

Usually ships in 4-12 days

0

3

Gravely 04571200

PT200-400 KAW CARB FUEL LINE ASSEMBLY

$

$

Not available

4

Gravely 00367900

CLIP, ROUTING

Note: (.50 ID)

$1.49

$

In Stock, only 1 left!

0

5

Gravely 03278100

.25 LOW-PERM GAS HOSE 19.00" LG - LH TANK TO VALVE

$0.99

$

In Stock, Qty 20+

0

6

Gravely 03278800

CLAMP, FUEL LINE

$1.49

$

In Stock, Qty 8

0

7

Gravely 04068910

VALVE, COMBINATION
(Superseded to 05185600)

$13.99

$

In Stock, only 2 left!

0

8

Gravely 04082700

GROMMET, REMOTE VENT NITRILE

$3.99

$

In Stock, Qty 20+

0

9

Gravely 04320800

ASM, LARGE TANK FUEL PICKUP

$34.99

$

In Stock, only 2 left!

0

10

Gravely 04396053

PLATE, FUEL VALVE MOUNTING-RED

$31.99

$

Usually ships in 4-12 days

0

11

Gravely 04426400

VALVE, FUEL
(Superseded to 09164300)

$37.99

$

In Stock, Qty 6

0

12

Gravely 04545900

CANISTER, CARBON 9.3 GAL

$78.99

$

Usually ships in 4-12 days

0

13

Gravely 04558100

CAP, NON NONVENT AUTOLOCK

$22.99

$

Usually ships in 4-12 days

0

14

Gravely 05947000

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.49

$

In Stock, Qty 12

0

15

Gravely 06100211

SCR-MCH 10-24X.38 HWHSTAINLESS

$2.99

$

In Stock, Qty 12

0

16

Gravely 06308600

WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

17

Gravely 06435700

WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.49

$

In Stock, Qty 14

0

18

Gravely 06900036

CLAMP, CUSHIONED STEEL .75

$5.99

$

Usually ships in 4-12 days

0

19

Gravely 06940200

CLAMP, HOSE 2.3/3.2

$3.49

$

Usually ships in 4-12 days

0

20

Gravely 07001712

CLIP, T, .38-.50

$3.99

$

Usually ships in 4-12 days

0

21

Gravely 07500031

GROMMET, RUBBER

$3.49

$

Usually ships in 4-12 days

0

22

Gravely 07500040

CABLE TIE W/ TREE

Note: (.25 HOLE)

$3.99

$

In Stock, only 1 left!

0

23

Gravely 03278100

.25 LOW-PERM GAS HOSE 14.00" LG - Tank vent to CARB canister

$0.99

$

In Stock, Qty 20+

0

24

Gravely 03278100

.25 LOW-PERM GAS HOSE 54.00" LG - RH TANK TO VALVE

$0.99

$

In Stock, Qty 20+

0
