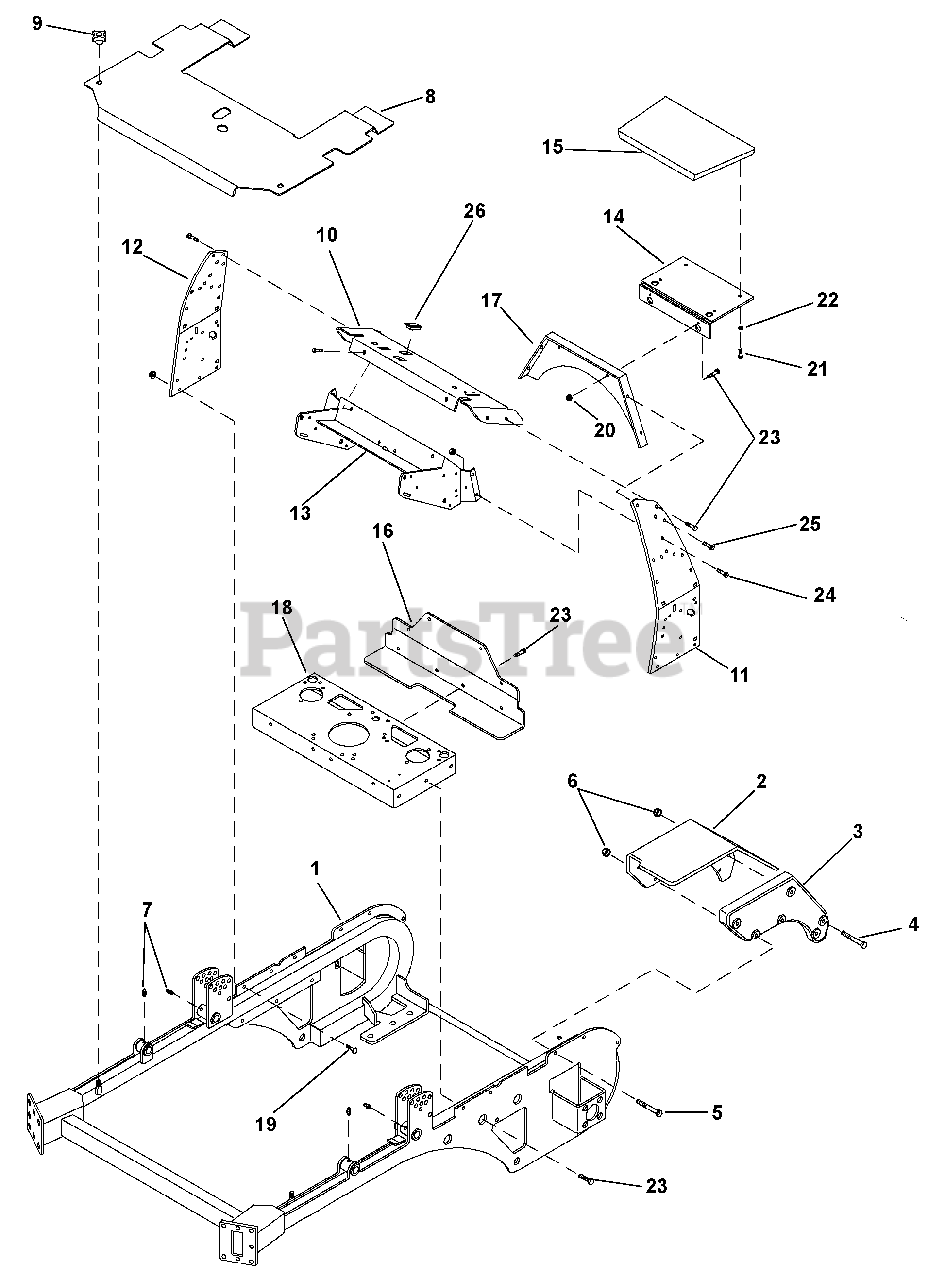

994100 (1948 FL) - Gravely Pro-Stance 48" Stand-On Mower, Floating Deck, 19hp Kawasaki (SN: 000501 & Above) Frame, Traction Deck and Console Parts Diagram

Pro-Stance 48" Stand-On Mower, Floating Deck, 19hp Kawasaki

Frame, Traction Deck and Console Parts Diagram

  • Title

1

Gravely 56323004

Frame

$

$

Not available

2

Gravely 00200212

Fender, Left

$

$

Not available

Gravely 00200211

Fender, Right

$

$

Not available

3

Gravely 00200038

Weight

$

$

Not available

4

Gravely 05975300

Bolt, Hex M8 x 1.25 x 65

$

$

Not available

5

Gravely 05976800

Bolt, Hex, M8 x 1.25 x 70

$

$

Not available

6

Gravely 06541700

Nut, Locking, Nylon M8-1.25
(Superseded to 06500817)

$1.49

$

Usually ships in 4-12 days

0

7

Gravely JD7842

Zerk, 1/4-28ST Fitting, Short Slotted Head

$

$

Not available

8

Gravely 56320006

Deck Shield Assembly (994100)

Note: (994100)

$

$

Not available

Gravely 56323006

Deck Shield Assembly (994103)

Note: (994103)

$

$

Not available

9

Gravely M119352

Knob, 3/8-16 Insert

$3.99

$

In Stock, Qty 6

0

10

Gravely 56323003

Control Console

$

$

Not available

11

Gravely 00200214

Side Bracket, Left

$

$

Not available

12

Gravely 00200215

Side Bracket, Right

$

$

Not available

13

Gravely 56323002

Handle Mount

$

$

Not available

14

Gravely D15368

Plate, Thigh Pad

$

$

Not available

15

Gravely 00200152

Thigh Pad, Black

$

$

Not available

16

Gravely 03773310

Shield

$

$

Not available

17

Gravely D15305

Weldment, Thigh Plate

$85.99

$

Usually ships in 4-12 days

0

18

Gravely 56323005

Engine/Traction Deck

$

$

Not available

19

Gravely 06200015

Carriage Bolt, M10 x 1.5 x 25

$

$

Not available

20

Gravely 06542400

Nut, Locking, Nylon M10-1.5

$3.49

$

Usually ships in 4-12 days

0

21

Gravely 05946800

Bolt, Hex, .25-20 x .75
(Superseded to 05901716)

$0.99

$

In Stock, Qty 12

0

22

Gravely 06308400

Washer, Lock .25 x .062
(Superseded to 06401009)

$0.99

$

In Stock, Qty 16

0

23

Gravely 05967600

Bolt, Hex, 10 x 1.5 x 20

$3.49

$

Usually ships in 4-12 days

0

24

Gravely 05943000

Bolt, Hex, 10 x 1.5 x 25

$2.99

$

Usually ships in 4-12 days

0

25

Gravely 05959400

Bolt, Hex, .38-16 x .75
(Superseded to 05901702)

$1.49

$

In Stock, only 1 left!

0

26

Gravely M115279

3 Plug, Euro Style

$

$

Not available
