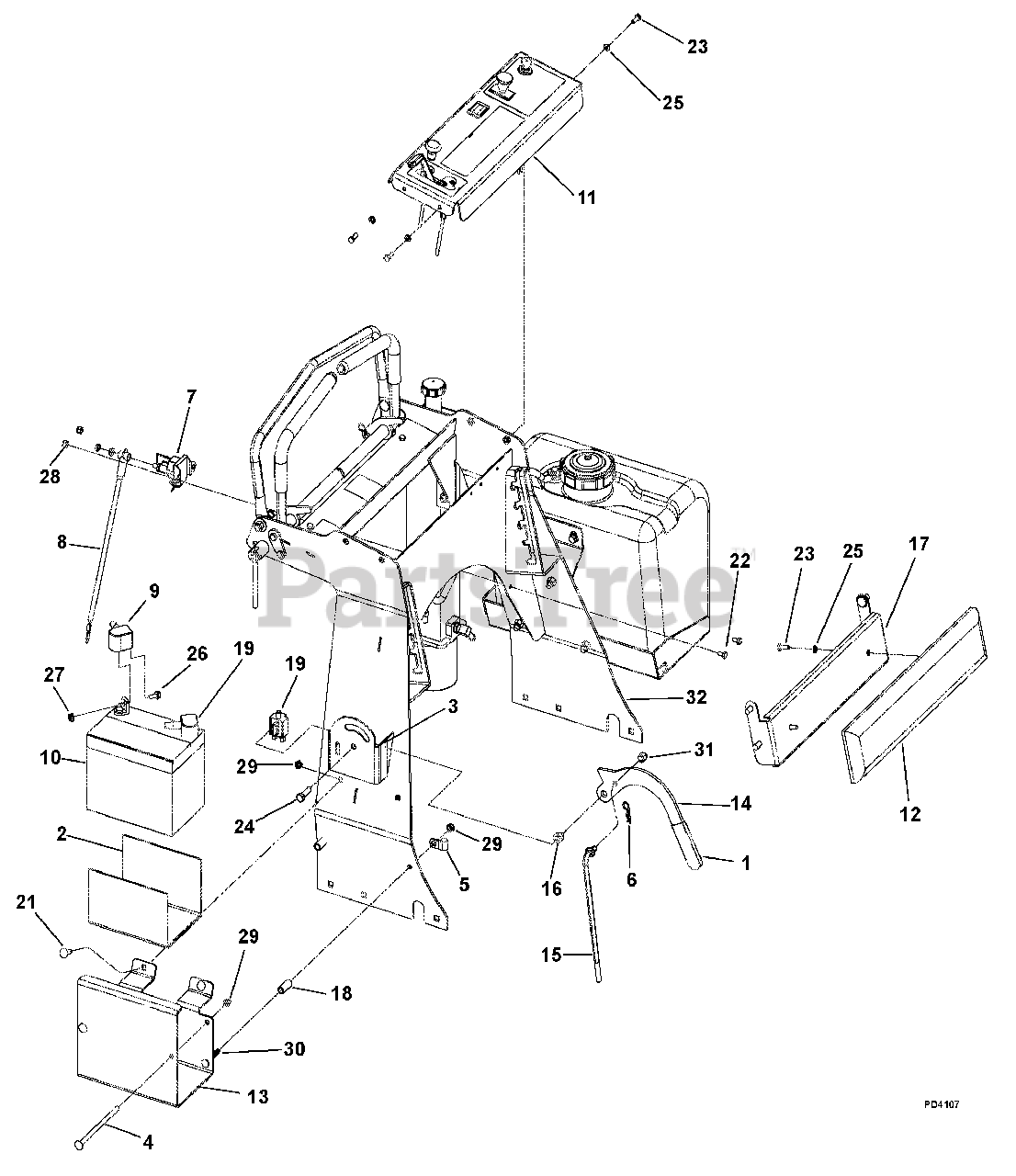

994102 (2352 FX) - Gravely Pro-Stance 52" Stand-On Mower, Fixed Deck, 23hp Kawasaki (SN: 000101 - 000206) Console And Battery Assembly Parts Diagram

Pro-Stance 52" Stand-On Mower, Fixed Deck, 23hp Kawasaki

Console And Battery Assembly Parts Diagram

  • Title

1

Gravely 00875800

Grip
(Superseded to D18079)

$3.99

$

Usually ships in 4-12 days

0

2

Gravely 00787200

Isolator Pad, Battery

$

$

Not available

3

Gravely 00884900

Decal, Park Brake

$

$

Not available

4

Gravely 05900107

Cap Screw, 5/16" x 6"
(Superseded to 06200128)

$6.99

$

Usually ships in 4-12 days

0

5

Gravely 00888500

P-Clip,.500 Insulated
(Superseded to 06900512)

$

$

Not available

6

Gravely 06703600

Pin, Hair Internal .09 x 1.65
(Superseded to 00121080)

$2.99

$

In Stock, Qty 11

0

7

Gravely 03551000

Solenoid

$34.99

$

In Stock, Qty 7

0

8

Gravely 00872300

Starter Cable
(Superseded to 00180842)

$15.99

$

Usually ships in 4-12 days

0

9

Gravely 00888800

Cable, Battery Starter 48"
(Superseded to 00181148)

$38.99

$

Usually ships in 4-12 days

0

10

Gravely N/A

Battery

$

$

Currently unavailable

11

Gravely N/A

Assembly, Control Panel

$

$

Currently unavailable

12

Gravely 00896400

Pad, Thigh
(Superseded to 00200606)

$

$

Not available

13

Gravely 00942800

Tray, Battery

$34.99

$

Usually ships in 4-12 days

0

14

Gravely 00896800

Lever, Brake
(Superseded to 00200614)

$

$

Not available

15

Gravely 00896900

Link, Brake
(Superseded to 00200615)

$28.99

$

Usually ships in 4-12 days

0

16

Gravely 05500131

Bushing, Brake Pivot
(Superseded to 00200671)

$

$

Not available

17

Gravely 00900000

Weldment, Thigh Pad Bracket
(Superseded to 00200690)

$64.99

$

Usually ships in 4-12 days

0

18

Gravely 05500135

Bushing, .364 x .540 x 1.250

$

$

Not available

19

Gravely 00942200

Switch, NO-NO-NC Grey Plunger
(Superseded to 00200705)

$17.99

$

In Stock, only 1 left!

0

20

Gravely 00888800

Cable, Battery Starter 48"
(Superseded to 00181148)

$38.99

$

Usually ships in 4-12 days

0

21

Gravely 06223600

Bolt, Round Head Square Neck .38 x 1.00
(Superseded to 06200313)

$2.49

$

In Stock, Qty 20+

0

22

Gravely 05947900

Bolt, Hex .25-20 x .50 Grade 5
(Superseded to 05901705)

$0.99

$

In Stock, Qty 5

0

23

Gravely 05946800

Bolt, Hex .25-20 x .75 Grade 5
(Superseded to 05901716)

$0.99

$

In Stock, Qty 12

0

24

Gravely 05958000

Bolt, Hex .38-16 x 1.25 Grade 5
(Superseded to 05901724)

$1.49

$

In Stock, Qty 7

0

25

Gravely 06308400

Washer, Locking .25 x .062 Regular
(Superseded to 06401009)

$0.99

$

In Stock, Qty 16

0

26

Gravely 05900122

Bolt, 1/4-20 x .625 WSH

$

$

Not available

27

Gravely 06530100

Nut, Locking, Flange .250-20
(Superseded to 06500824)

$0.99

$

In Stock, Qty 17

0

28

Gravely 06531000

Nut, Locking, Nylon .250-20
(Superseded to 06500832)

$4.99

$

In Stock, only 2 left!

0

29

Gravely 06530200

Nut, Locking, Nylon .312-18
(Superseded to 06500820)

$0.99

$

Usually ships in 4-12 days

0

30

Gravely 06225800

Bolt, Round Head Square Neck Full Thread .31-18 x 2.0 Grade 5

$3.99

$

Usually ships in 4-12 days

0

31

Gravely 06535800

Nut, Lock, Nylon .38-16
(Superseded to 06500831)

$2.49

$

In Stock, Qty 19

0

32

Gravely 00940400

Weldment, Console with Decals S/O
(Superseded to 00892900)

$146.99

$

Usually ships in 4-12 days

0
