994103 (2352 FL) - Gravely Pro-Stance 52" Stand-On Mower, Floating Deck, 23hp Kawasaki (SN: 000101 - 000500) Hydrostatic Components Parts Diagram

Pro-Stance 52" Stand-On Mower, Floating Deck, 23hp Kawasaki

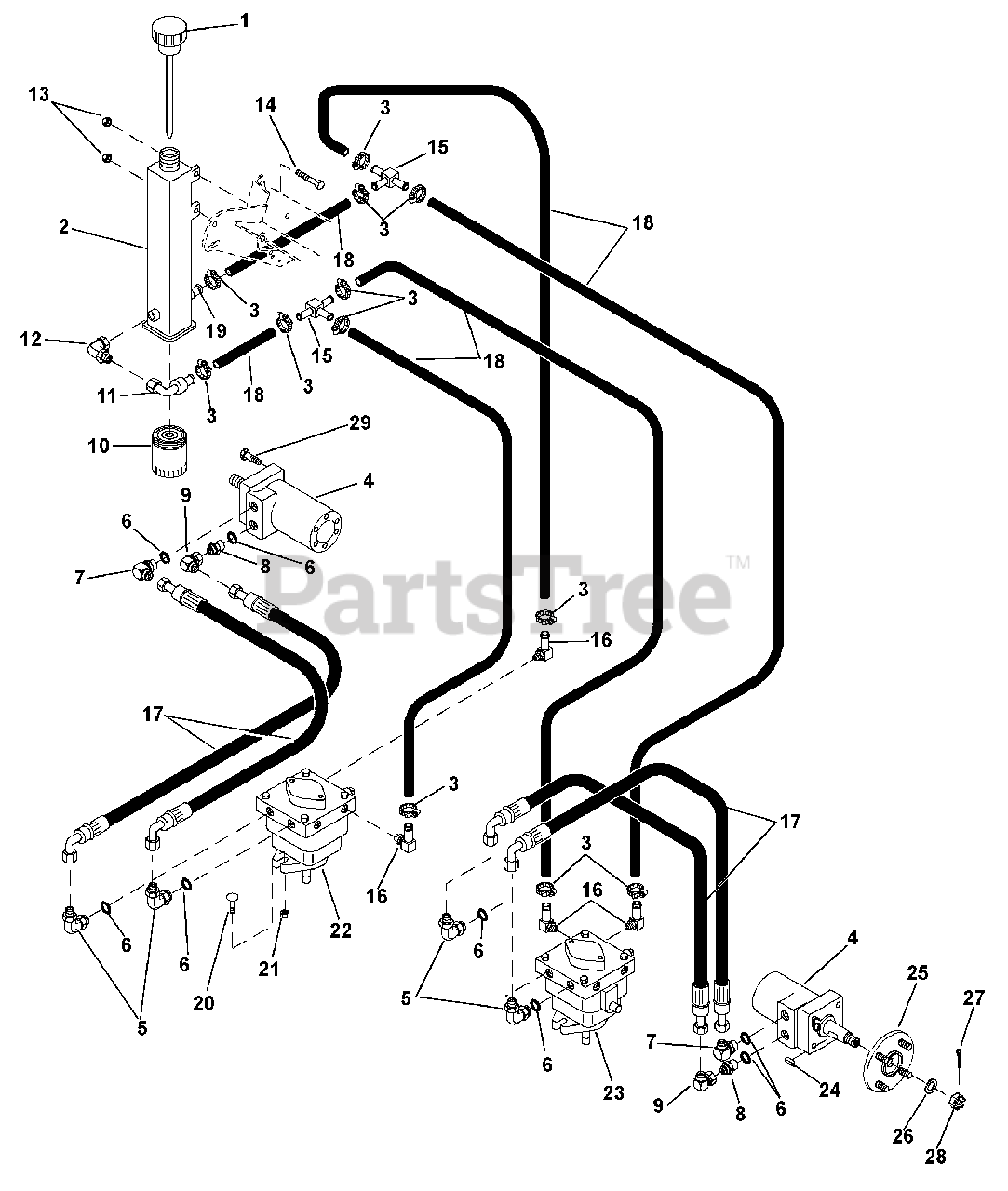

Hydrostatic Components Parts Diagram

  • Title

1

Gravely 00882500

Cap
(Superseded to TCA15122)

$27.99

$

Usually ships in 4-12 days

0

2

Gravely 00883300

Hydraulic Reservoir, Includes Decal
(Superseded to TCA15373)

$

$

Not available

3

Gravely 00876600

Hose Clamp

$

$

Not available

4

Gravely 00882300

Wheel Motor

$

$

Not available

5

Gravely 00954100

Fitting, Includes O-Ring
(Superseded to D14196)

$5.99

$

Usually ships in 4-12 days

0

6

Gravely 05600007

O-Ring, Included With Fitting

$

$

Not available

7

Gravely 07036500

Fitting, 7/8ORB x 3/4JIC x 90

$

$

Not available

8

Gravely 07025800

Fitting, ADP 3/4-16 MJIC x 7/8-14MOR

$13.99

$

In Stock, only 2 left!

0

9

Gravely 00942900

Adapter, 3/4 FESW x 3/4MJIC x 90
(Superseded to 00231046)

$

$

Not available

10

Gravely 00669300

Element, Oil Filter

$26.99

$

In Stock, Qty 9

0

11

Gravely 00954500

Elbow Fitting

$14.99

$

Usually ships in 4-12 days

0

12

Gravely 08800800

Adapter, 2503-6-6
(Superseded to 00313270)

$9.49

$

In Stock, only 1 left!

0

13

Gravely 06542400

Nut, Locking, Nylon M10-1.5

$3.49

$

Usually ships in 4-12 days

0

14

Gravely 05967600

Bolt, Hex M10 x 1.5 x 20 Grade 5

$3.49

$

Usually ships in 4-12 days

0

15

Gravely 00879200

Tee Fitting
(Superseded to M86863)

$

$

Not available

16

Gravely 07019700

Fitting, Adapter .562-18 Steel Thread

$6.99

$

Usually ships in 4-12 days

0

17

Gravely 00876700

Hose, High Pressure
(Superseded to D18394)

$92.99

$

Usually ships in 4-12 days

0

18

Gravely 00887400

Hose, Return, 25 Ft. Bulk - Cut to Length
(Superseded to TY22552)

$

$

Not available

19

Gravely 00954400

Adapter, Straight Fitting

$5.99

$

Usually ships in 4-12 days

0

20

Gravely 06200016

Carriage Bolt, Pump Mounting, M10

$

$

Not available

21

Gravely 06542400

Nut, Locking, Nylon M10-1.5

$3.49

$

Usually ships in 4-12 days

0

22

Gravely 00881400

Pump, LH
(Superseded to TCA14965)

Note:

$841.99

$

Usually ships in 4-12 days

0

23

Gravely 00881500

Pump, RH
(Superseded to TCA14966)

Note:

$841.99

$

Usually ships in 4-12 days

0

24

Gravely 06608700

Key, Woodruff .19 x .75 HRD #9

$1.49

$

In Stock, Qty 20+

0

25

Gravely 00955400

Hub, Rear Wheel
(Superseded to 00200954)

$241.99

$

Usually ships in 4-12 days

0

26

Gravely 00953300

Shim, .020 x .787 x 1.102
(Superseded to 24M7158)

$15.99

$

Usually ships in 4-12 days

0

27

Gravely 06714100

Pin, Center .125 x 2.00

$

$

Not available

28

Gravely 06500037

Castle Nut

$

$

Not available

29

Gravely 05948700

Bolt, Hex .38-16 x 1.00 Grade 5
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

Gravely 00879100

Tie Strap

$

$

Not available
