994104 (1934 FX) - Gravely Pro-Stance 34" Stand-On Mower, Fixed Deck, 19hp Kawasaki (SN: 000298 - 000500) Engine, Hydraulic And Main Frame Assembly Parts Diagram

Pro-Stance 34" Stand-On Mower, Fixed Deck, 19hp Kawasaki

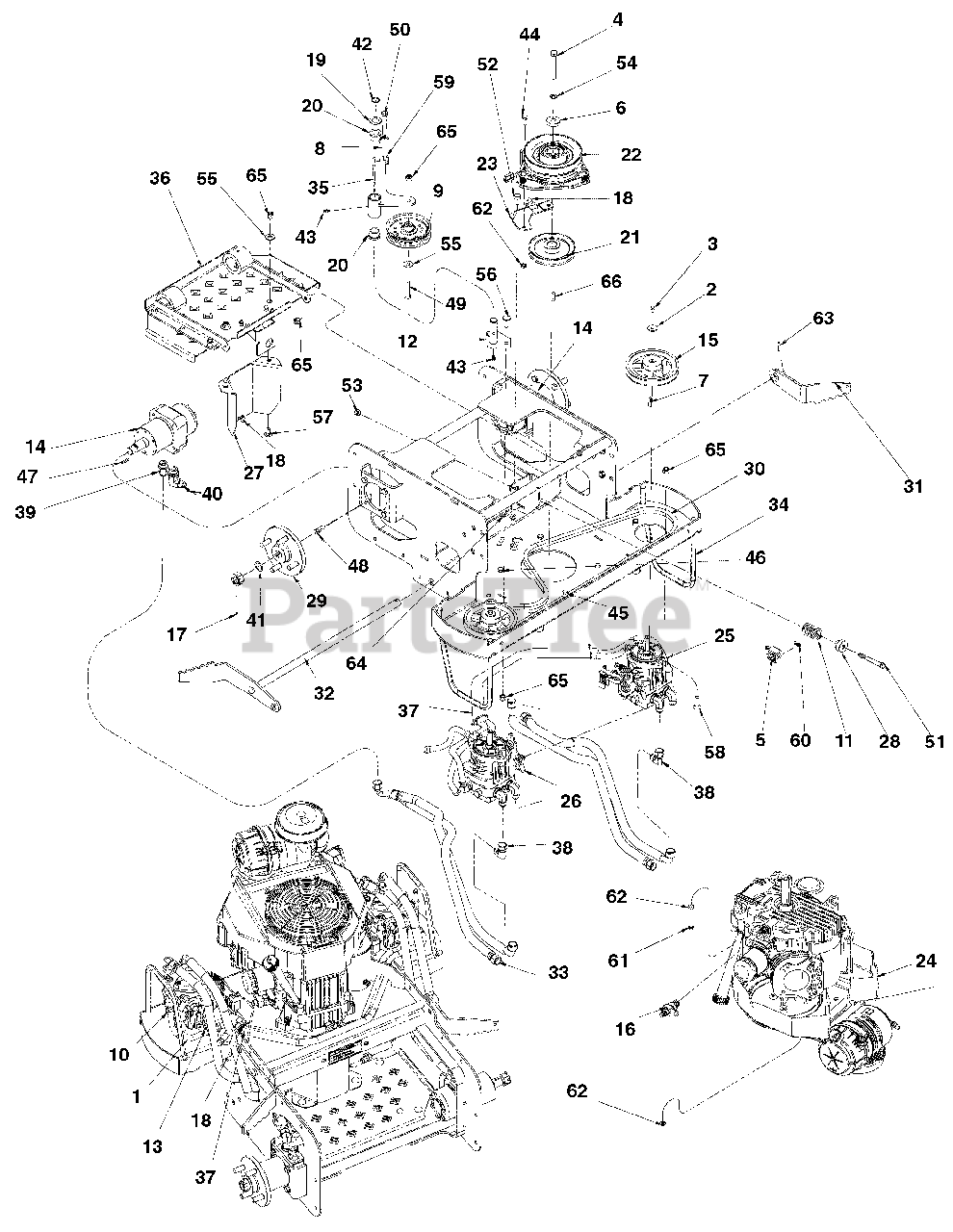

Engine, Hydraulic And Main Frame Assembly Parts Diagram

  • Title

1

Gravely 00945300

Hose, 3/8 SAE30r7 Fuel & Oil
(Superseded to DT5332)

$5.99

$

Usually ships in 4-12 days

0

2

Gravely 06308000

Washer, .250 Wide Heavy Flat Y

$0.99

$

Usually ships in 4-12 days

0

3

Gravely 05900124

Bolt, M6 x 1.00 x 10 Hex 8.8 Y

$

$

Not available

4

Gravely 05965700

Bolt, 7/16-20 x 3.00 Hex 5 Y
(Superseded to 05900037)

$6.99

$

In Stock, only 4 left!

0

5

Gravely 00875300

Switch (N.0.)
(Superseded to D18038)

Note: (N.0.)

$4.99

$

Usually ships in 4-12 days

0

6

Gravely 00875500

Spacer, .468 x 1.38 x .375 Y
(Superseded to D18056)

$20.99

$

Usually ships in 4-12 days

0

7

Gravely 06600005

Key, M5 x M5 x M30 RD
(Superseded to D18067)

$

$

Not available

8

Gravely 08300037

Spring, Ext .900 x .135x4.50 Y
(Superseded to D18071)

$11.99

$

Usually ships in 4-12 days

0

9

Gravely 07300111

Pulley, V-belt 4.00x.379 w/Bearing
(Superseded to 07350100)

$48.99

$

In Stock, Qty 20+

0

10

Gravely 00876600

Clamp, Hose - 1/2" Pinch

$

$

Not available

11

Gravely 08300038

Spring, Com 1.22x.162x2.50 Y
(Superseded to D38128)

$18.99

$

Usually ships in 4-12 days

0

12

Gravely 07300114

Weldment, Pivot Idler Mount

$3.49

$

Usually ships in 4-12 days

0

13

Gravely 00879200

Fitting, Tun 3/8 Hose
(Superseded to M86863)

$

$

Not available

14

Gravely 04915500

Motor, Wheel HGM-12p-7172
(Superseded to 05015500)

$905.99

$

Usually ships in 4-12 days

0

15

Gravely 07300116

Assembly, Pump Pulley w/Set Screw
(Superseded to TCA15316)

$47.99

$

Usually ships in 4-12 days

0

16

Gravely 00883700

Fitting, Oil Drain
(Superseded to TCA16240)

$

$

Not available

17

Gravely 06714100

Pin, Cot .125 x 2.00 EXTP Y

$

$

Not available

18

Gravely 07519900

Tie Wrap, Black

$3.49

$

Usually ships in 4-12 days

0

19

Gravely 05500132

Bushing, Machine .750 x 1.25 x .048
(Superseded to 00150052)

$4.99

$

Usually ships in 4-12 days

0

20

Gravely 05501700

Bearing, Flange .750 x 1.000 x .750 x 1.250
(Superseded to 00191179)

$5.99

$

Usually ships in 4-12 days

0

21

Gravely 07300118

Pulley, V-belt 4.78pd x 1.000
(Superseded to 00200318)

$56.99

$

Usually ships in 4-12 days

0

22

Gravely 00899800

Clutch Assembly, Ogura
(Superseded to 00200665)

$387.99

$

In Stock, only 1 left!

0

23

Gravely 00899900

Plate, Clutch Dog
(Superseded to 00200666)

$51.99

$

Usually ships in 4-12 days

0

24

Gravely 00200675

Engine, Kawasaki 19hp FH580V

$

$

Not available

25

Gravely 00200721

Assembly, Hyd Pump

$

$

Not available

26

Gravely 00200722

Assembly, Hyd Pump

$1612.99

$

Usually ships in 4-12 days

0

27

Gravely 00941500

Cover, Operator Presence Control

$9.49

$

Usually ships in 4-12 days

0

28

Gravely 06400027

Washer, Spring Y
(Superseded to 00200770)

$

$

Not available

29

Gravely 00200959

Assy, Rear Wheel Hub

$189.99

$

In Stock, only 2 left!

0

30

Gravely 00201009

Belt, HA 68.2 EL AMD OHR

$45.99

$

Usually ships in 4-12 days

0

31

Gravely 00201025

Weldment, RH Brake Arm

$51.99

$

Usually ships in 4-12 days

0

32

Gravely 00201027

Weldment, LH Brake Shaft

$

$

Not available

33

Gravely 00201091

Hose, Hyd 1/2 x 26 1/2 Ezflex

$75.99

$

Usually ships in 4-12 days

0

34

Gravely 03729402

Weldment, Frame 34 w/Decals

$

$

Not available

35

Gravely 00201143

Weldment, Idler Pivot

$

$

Not available

36

Gravely 00201199

Assy, Foot Plate

$

$

Not available

37

Gravely 00201051

Abrasion Sleeve

$

$

Not available

38

Gravely 00942900

Adapter, .75 FESW x 3/4MJICX90
(Superseded to 00231046)

$

$

Not available

39

Gravely 07025800

Adapter, Hydraulic Steel 7/8 "O" To .75

$13.99

$

In Stock, only 2 left!

0

40

Gravely 07036500

Adapter, 8MJ-10MB90

$

$

Not available

41

Gravely 00953300

Shim, .020 x .787 x 1.102
(Superseded to 24M7158)

$15.99

$

Usually ships in 4-12 days

0

42

Gravely 05701200

Ring, Retaining-External .750 x .042
(Superseded to 05700135)

$2.49

$

In Stock, Qty 8

0

43

Gravely 07037900

Grease Zerk, .25-28 Straight .69 LG
(Superseded to 00959995)

$3.49

$

Usually ships in 4-12 days

0

44

Gravely 05947000

Bolt, Hex .31-18 x .75 Grade 5
(Superseded to 05901704)

$1.49

$

In Stock, Qty 12

0

45

Gravely 05952400

Bolt, Hex .31-18 x 1.50 Grade 5
(Superseded to 05901710)

$1.49

$

Usually ships in 4-12 days

0

46

Gravely 05957400

Bolt, Hex .31-18 x 1.75 Grade 5
(Superseded to 05901804)

$2.99

$

In Stock, Qty 12

0

47

Gravely 06608700

Key, Woodruff .1875 x .75

$1.49

$

In Stock, Qty 20+

0

48

Gravely 05900120

Bolt, 3/8-16 x 1.00 Hex 5
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

49

Gravely 00960049

Bolt, 3/8-16 x 1.75 Hex 5
(Superseded to 05958500)

$1.49

$

In Stock, only 4 left!

0

50

Gravely 05958400

Bolt, 3/8-16 x 2.50 Hex 5
(Superseded to 05901812)

$3.99

$

In Stock, Qty 20+

0

51

Gravely 05961100

Bolt, 3/8-16 x 3.25 Hex 5
(Superseded to 05901817)

$3.99

$

In Stock, only 1 left!

0

52

Gravely 05900121

Bolt, 7/16-14 x .750 Hex 5

$

$

Not available

53

Gravely 06529200

Nut-Hex .31-18
(Superseded to 06500938)

$0.99

$

In Stock, Qty 16

0

54

Gravely 06308800

Washer, .375 Medium Spring Lock Y
(Superseded to 06300116)

$0.99

$

In Stock, Qty 18

0

55

Gravely 06435900

Washer-Flat-Steel .438 x 1.00 x .083
(Superseded to 06401008)

$1.49

$

In Stock, only 2 left!

0

56

Gravely 06223600

Bolt, Round Head Square Neck .38-16x1.00 G 5
(Superseded to 06200313)

$2.49

$

In Stock, Qty 19

0

57

Gravely 06223900

Bolt, Round Head Square Neck .38-16x1.00 G 5
(Superseded to 06200312)

$1.49

$

Usually ships in 4-12 days

0

58

Gravely 06224100

Bolt, Round Head Square Neck .38-16x1.25 G 5
(Superseded to 06200415)

$2.49

$

In Stock, Qty 19

0

59

Gravely 00964001

Nut, .38-16 Jam Grade 5
(Superseded to 06500910)

$0.99

$

In Stock, Qty 9

0

60

Gravely 06536000

Nut-Locking-Nylon 10-24 with Insert
(Superseded to 06500915)

$0.99

$

In Stock, only 4 left!

0

61

Gravely 06536100

Nut-Jam .312-18
(Superseded to 06500909)

$0.99

$

In Stock, only 3 left!

0

62

Gravely 06530200

Nut-Locking-Nylon .312-18
(Superseded to 06500820)

$0.99

$

Usually ships in 4-12 days

0

63

Gravely 05802900

Pin-Roll .156 x 1.00

$0.99

$

In Stock, Qty 5

0

64

Gravely 06111100

Screw, Machine 10-24 x .625 Panhead

$0.99

$

In Stock, Qty 16

0

65

Gravely 06535800

Nut-Locking-Nylon .38-16
(Superseded to 06500831)

$2.49

$

In Stock, Qty 19

0

66

Gravely 06535800

Key, .250 x .250 x .995 TPR
(Superseded to 06500831)

$2.49

$

In Stock, Qty 19

0
