994105 (1948 FX) - Gravely Pro-Stance 48" Stand-On Mower, Fixed Deck, 19hp Kawasaki (SN: 000101 & Above) Pump Componets Parts Diagram

Pro-Stance 48" Stand-On Mower, Fixed Deck, 19hp Kawasaki

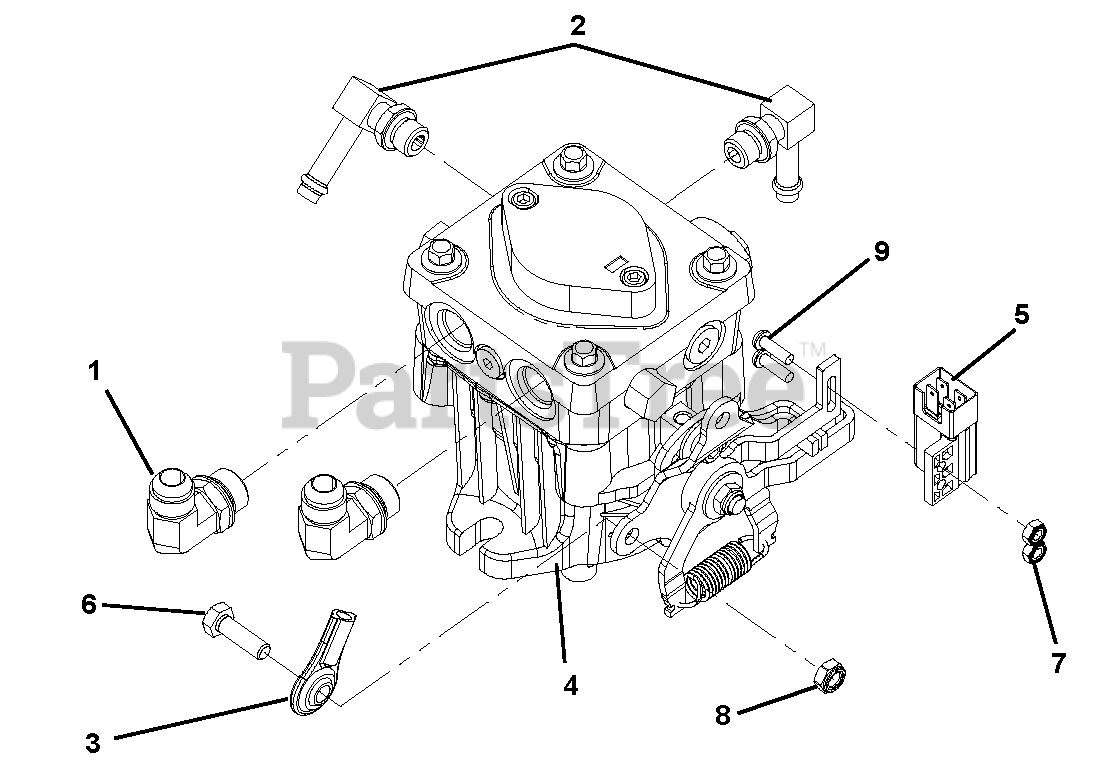

Pump Componets Parts Diagram

  • Title

1

Gravely D14196

Fitting, Includes O-Ring

$5.99

$

Usually ships in 4-12 days

0

2

Gravely D24028

Fitting - Adaptor .562-18 Steel Thread

$9.99

$

Usually ships in 4-12 days

0

3

Gravely 03787100

Rod End, 5/16 RH

$12.99

$

In Stock, Qty 5

0

4

Gravely TCA14965

Pump, Hydraulic LH

$841.99

$

Usually ships in 4-12 days

0

Gravely TCA14966

Pump, Hydraulic RH

$841.99

$

Usually ships in 4-12 days

0

5

Gravely 00191256

Switch, Plunger Diametral Pitch -N.O. -N.C.
(Superseded to 08828100)

$20.99

$

In Stock, only 1 left!

0

6

Gravely 05946900

Bolt, Hex .31 x 1.00 Grade 5
(Superseded to 05901701)

$1.49

$

In Stock, Qty 8

0

7

Gravely 06536000

Nut, Locking, Nylon 10-24 w/Insert
(Superseded to 06500915)

$0.99

$

In Stock, only 4 left!

0

8

Gravely 06530200

Nut, Locking, Nylon .312-18
(Superseded to 06500820)

$0.99

$

Usually ships in 4-12 days

0

9

Gravely 06111100

Screw, Machine 10-24 x .62 P/HD

$0.99

$

In Stock, Qty 16

0
