994115 - Gravely Pro-Stance 61" Stand-On Mower, Kohler EFI (SN: 000101 - 029999) Operator Controls - Choke And Parking Brake Parts Diagram

Pro-Stance 61" Stand-On Mower, Kohler EFI

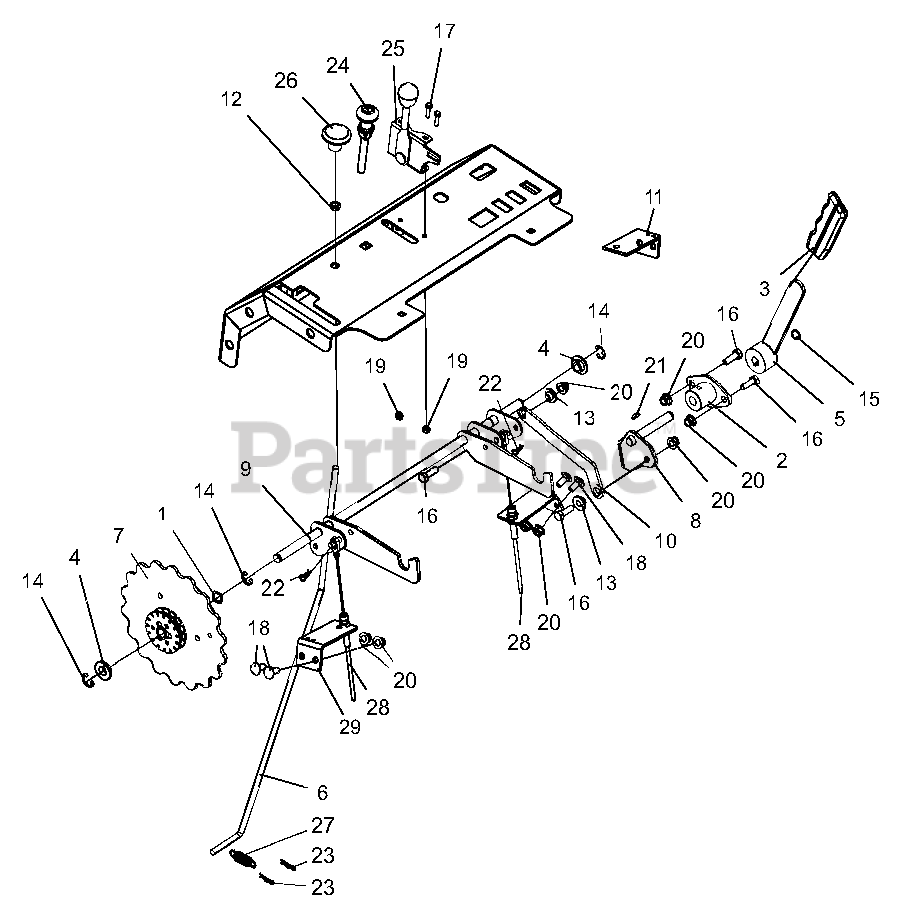

Operator Controls - Choke And Parking Brake Parts Diagram

  • Title

1

Gravely 00325400

WAVE WASHER .531 X .781 X .125 FH

$0.99

$

In Stock, Qty 20+

0

2

Gravely 01522000

BUSHING, FLANGED

$21.99

$

In Stock, only 1 left!

0

3

Gravely 03826900

GRIP, PARKING BRAKE (YELLOW)

Note: (YELLOW)

$3.99

$

In Stock, Qty 10

0

4

Gravely 03989100

BSHG-FLG .515 X .750 X .395 X 1.120

$3.49

$

In Stock, Qty 20+

0

5

Gravely 04392900

WLDMT, PARKING BRAKE LEVER

$193.99

$

Usually ships in 4-12 days

0

6

Gravely 04521200

ARM, WIREFORM

$31.99

$

Usually ships in 4-12 days

0

7

Gravely 04399500

WLDMT, HEIGHT OF CUT
(Superseded to 04714400)

$271.99

$

Usually ships in 4-12 days

0

8

Gravely 04412500

WLDMT, PARKING BRAKE ACTUATING

$293.99

$

Usually ships in 4-12 days

0

9

Gravely 04412800

WLDMT, BRAKE INTERLOCK

$75.99

$

Usually ships in 4-12 days

0

10

Gravely 04412951

LINK, INTERLOCK

$8.99

$

Usually ships in 4-12 days

0

11

Gravely 04553151

BRKT, CABLE MTG RIGHT HAND

$56.99

$

Usually ships in 4-12 days

0

12

Gravely 05500020

BSHG POLYLINER .38 SNAPIN

$2.99

$

In Stock, only 2 left!

0

13

Gravely 05514800

BSHG FLG .312 X .500 X .344

$3.99

$

In Stock, Qty 18

0

14

Gravely 05710200

RG-RTNG-EXT .500 X .042 €

$0.99

$

In Stock, Qty 20+

0

15

Gravely 05717100

RG-RTNG-EXT .500 X .050 (SNAP)

Note: (SNAP)

$2.49

$

Usually ships in 4-12 days

0

16

Gravely 05946900

BLT-HEX .31-18 X 1.00 GR5 YWZC
(Superseded to 05901701)

$1.49

$

In Stock, Qty 8

0

17

Gravely 06116900

BLT-HEX .31-18 X 1.00 GR5 YWZC
(Superseded to 05901837)

$2.49

$

In Stock, only 1 left!

0

18

Gravely 06215700

BLT-RDHDSQNK .41-18 X .75 G5 YWZC
(Superseded to 06200232)

$2.49

$

In Stock, Qty 20+

0

19

Gravely 06536000

NUT-LK-NYL #10-24 YWZC
(Superseded to 06500915)

$0.99

$

In Stock, only 4 left!

0

20

Gravely 06545400

NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

21

Gravely 06608400

KEY, WDRF .13 X .63 HRD #5 GM124545 P

$2.99

$

In Stock, only 3 left!

0

22

Gravely 06713500

PIN, HAIR INT .08 X .18 X 1.18 Y
(Superseded to 06700222)

$0.99

$

In Stock, Qty 7

0

23

Gravely 06714800

PIN-HAIR, ENDRIES #25 YWZC
(Superseded to 06700223)

$0.99

$

In Stock, only 4 left!

0

24

Gravely 06900408

CABLE, CHOKE SNAP IN (994111,112,114,117,118)

Note: (994111,112,114,117,118)

$39.99

$

Usually ships in 4-12 days

0

25

Gravely 06900412

CABLE, PRO-CONTROL CHOKE

$60.99

$

In Stock, only 4 left!

0

26

Gravely 07539900

KNOB, PUSH-PULL .312-18

$5.99

$

Usually ships in 4-12 days

0

27

Gravely 08326700

SPRG, TENS .072 X .565 X 1.87

$20.99

$

In Stock, only 1 left!

0

28

Gravely B106849

CABLE, BRAKE

$19.99

$

Usually ships in 4-12 days

0

29

Gravely 04576451

BRKT, CABLE MTG LEFT HAND

$77.99

$

Usually ships in 4-12 days

0
