994119 - Gravely Pro-Stance 36" Stand-On Mower, Kawasaki FS (SN: 040000 & Above) Brake And Height Of Cut Dial Parts Diagram

Pro-Stance 36" Stand-On Mower, Kawasaki FS

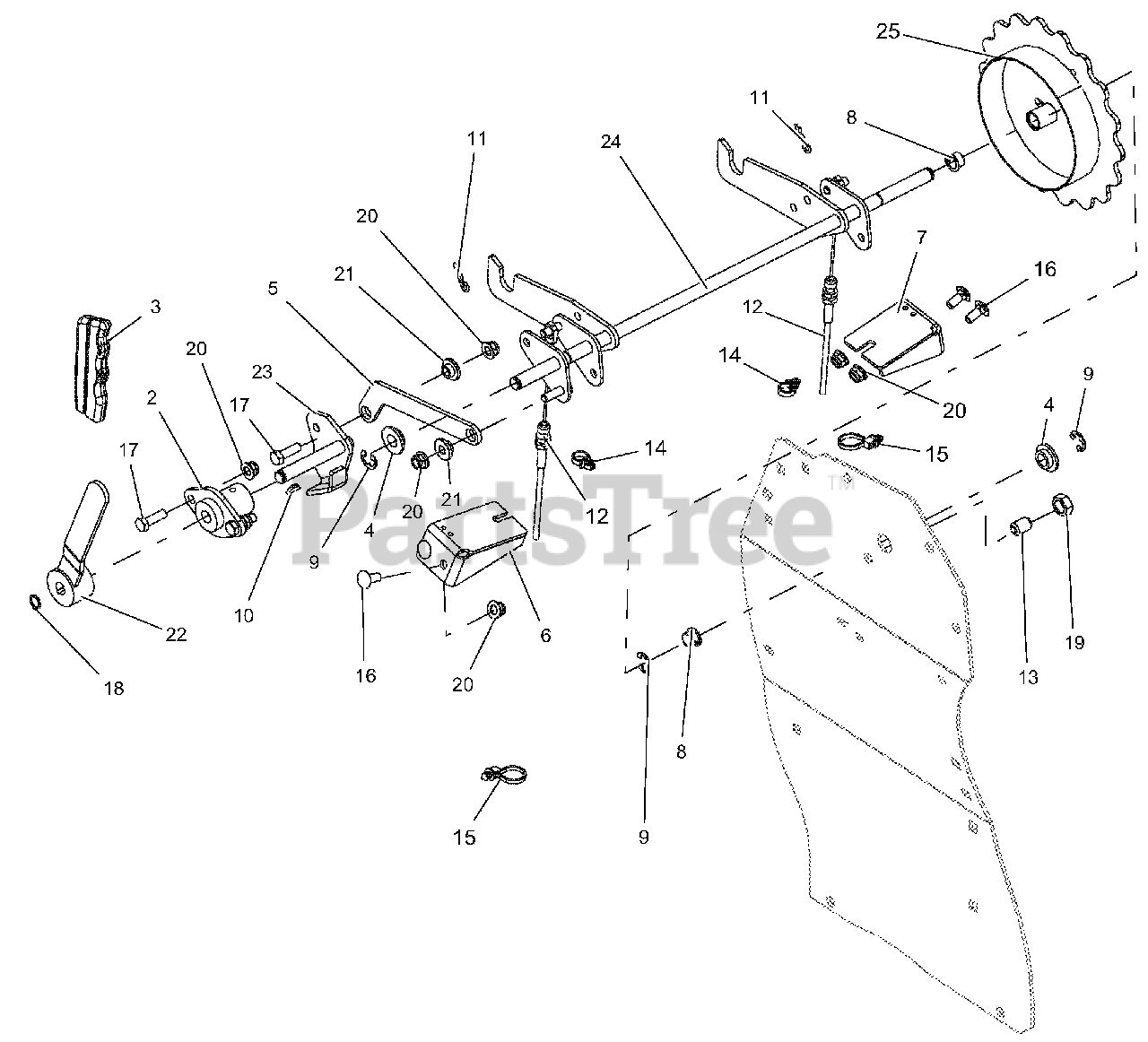

Brake And Height Of Cut Dial Parts Diagram

  • Title

2

Gravely 01522000

BSHG, FLANGE .500 ID

$21.99

$

In Stock, only 1 left!

0

3

Gravely 03826900

GRIP, PARKING BRAKE (YELLOW )

Note: (YELLOW )

$3.99

$

In Stock, Qty 10

0

4

Gravely 03989100

BSHG, FLANGE .515X.750X.31X1.12

$3.49

$

In Stock, Qty 20+

0

5

Gravely 04412951

LINK, INTERLOCK

$8.99

$

Usually ships in 4-12 days

0

6

Gravely 04553151

BRKT, CABLE MTG.

$56.99

$

Usually ships in 4-12 days

0

7

Gravely 04576451

BRKT, LH CABLE MTG

$77.99

$

Usually ships in 4-12 days

0

8

Gravely 05500026

BUSHING, POLYLINER - .50 SPLIT

$2.99

$

In Stock, Qty 20+

0

9

Gravely 05710200

RG-RTNG-EXT .500X.042 (E)

Note: (E)

$0.99

$

In Stock, Qty 20+

0

10

Gravely 06608400

KEY, WDRF .13x.63 HRD#5 GM124545 P

$2.99

$

In Stock, only 3 left!

0

11

Gravely 06713500

PIN, HAIR INT .08X.18X1.18 YWZC
(Superseded to 06700222)

$0.99

$

In Stock, Qty 6

0

12

Gravely 06900522

CABLE, PROSTANCE P. BRAKE

$46.99

$

In Stock, only 2 left!

0

13

Gravely 07001704

BALL SPRING PLUNGER, .500-13

$9.49

$

Usually ships in 4-12 days

0

14

Gravely 00367900

CLIP, ROUTING (.50 ID)

Note: (.50 ID)

$1.49

$

In Stock, only 1 left!

0

15

Gravely 07500040

CABLE TIE W/ TREE (.25 HOLE)

Note: (.25 HOLE)

$3.99

$

In Stock, only 1 left!

0

16

Gravely 06215700

BLT-RDHDSQNK .31-18X.75 G5 YWZC
(Superseded to 06200232)

$2.49

$

In Stock, Qty 20+

0

17

Gravely 05946900

BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.49

$

In Stock, Qty 11

0

18

Gravely 05717100

RG-RTNG-EXT .500x.050

$2.49

$

Usually ships in 4-12 days

0

19

Gravely 06529300

NUT, JAM .500-13 YWZC
(Superseded to 06500911)

$1.49

$

In Stock, Qty 18

0

20

Gravely 06545400

NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

21

Gravely 05514800

BSHG, FLG .32X.500.344X.880

$3.99

$

In Stock, Qty 16

0

22

Gravely 04392900

W LDMT, PARKING BRAKE LEVER

$193.99

$

Usually ships in 4-12 days

0

23

Gravely 04412500

W LDMT, PARKING BRAKE ACTUATING

$293.99

$

Usually ships in 4-12 days

0

24

Gravely 04412800

W LDMT, BRAKE INTERLOCK

$75.99

$

Usually ships in 4-12 days

0

25

Gravely 04714400

W LDMT, HEIGHT OF CUT

$271.99

$

Usually ships in 4-12 days

0
