995033 (CL-130) - Gravely 30" Walk-Behind Reel Mower, Kohler (SN: 000101 & Above) Caster Wheel Assembly Parts Diagram

30" Walk-Behind Reel Mower, Kohler

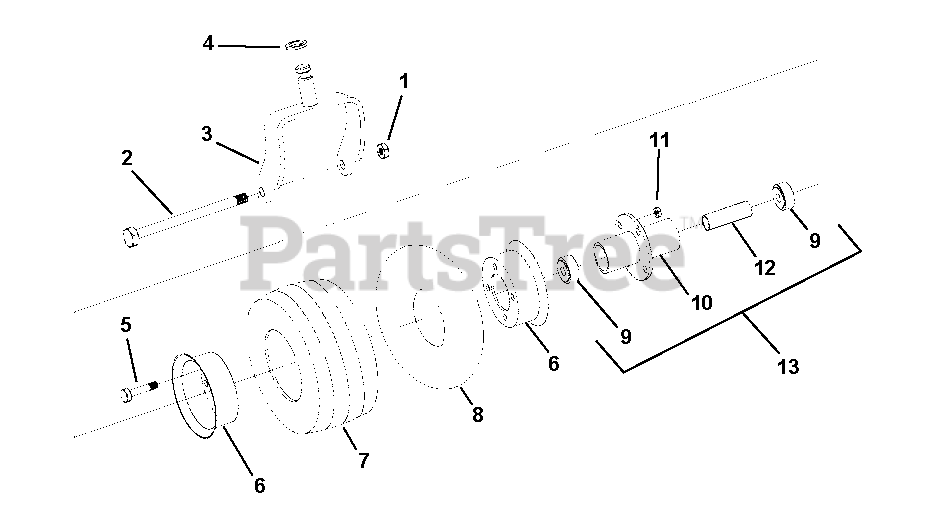

Caster Wheel Assembly Parts Diagram

  • Title

1

Gravely 02136000

Nut, Jam Nyloc .50-13

$

$

Not available

2

Gravely 05900815

Cap Screw, Hex Head .50-13 x 5.50

$5.99

$

Usually ships in 4-12 days

0

3

Gravely 02797253

Fork Assembly

$

$

Not available

4

Gravely 02106800

Shim

$

$

Not available

5

Gravely 05900801

Cap Screw, Hex Head .38-16 x 1
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 07100630

Rim, Two-Piece, Without Bolts

$

$

Not available

7

Gravely 07100627

Tire, Turf Tread

$

$

Not available

8

Gravely 07100629

Tube

$

$

Not available

9

Gravely 05400238

Bearing, Flange

$

$

Not available

10

Gravely 07100653

Weldment, Hub

$

$

Not available

11

Gravely 06500610

Nut, Hex .38-16

$

$

Not available

12

Gravely 06400540

Spacer, Wheel Hub Bearing

$

$

Not available

13

Gravely 03758000

Assembly, Wheel Hub (Includes Items 9 – 12)

Note: (Includes Items 9 – 12)

$

$

Not available

N/A

Gravely 03758300

Assembly, Wheel/Fork (Includes Items 1 – 3 and 5 – 12)

Note: (Includes Items 1 – 3 and 5 – 12)

$

$

Not available
