996200 (JSV 3000) - Gravely Atlas JSV Utility Vehicle, Base, Gas (SN: 150101 - 159999) Engine And Transmission Mounting Parts Diagram

Atlas JSV Utility Vehicle, Base, Gas

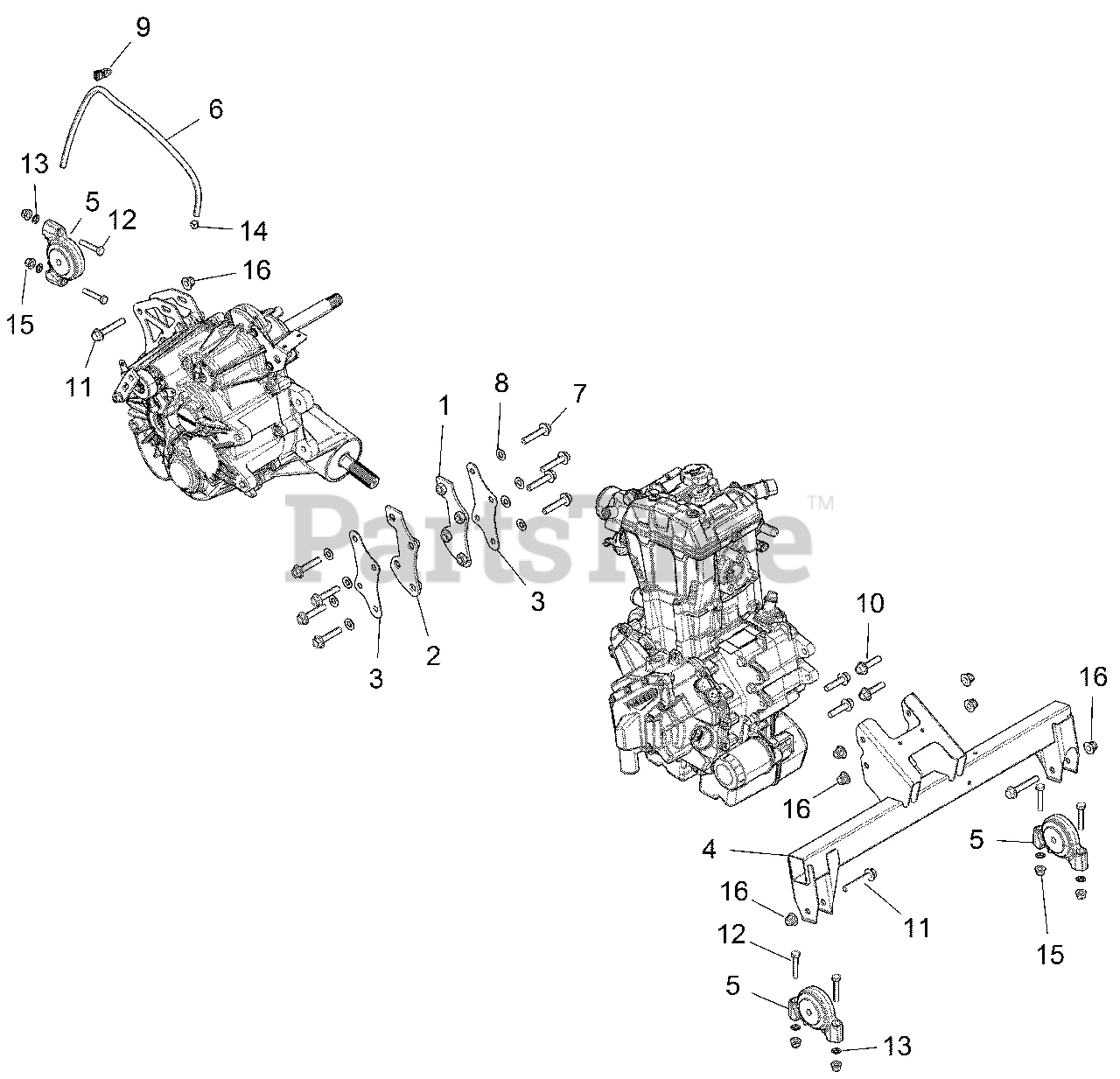

Engine And Transmission Mounting Parts Diagram

  • Title

1

Gravely 21900016

WELD-TRANS,INNER,LEFT

$

$

Not available

2

Gravely 21900017

WELD-TRANS,INNER,RIGHT

$

$

Not available

3

Gravely 21900193

BRKT-COUPLER,TRANS,OUTER

$

$

Not available

4

Gravely 21900832

WELD-MOUNT,ENGINE,BLK

$

$

Not available

5

Gravely 21900038

MOUNT-ISOLATOR,DRIVELINE

$

$

Not available

6

Gravely 21901254

LINE,FUEL,1/4 ID(1525 CM.)

$

$

Not available

7

Gravely 21900410

SCR-M10X1.5X50 8.8 HX/FL ZOD

$

$

Not available

8

Gravely 21900486

WASHER,3/8 FW

$

$

Not available

9

Gravely 21900352

STRAP-CABLE TIE W/EDGE CLIP

$

$

Not available

10

Gravely 21900440

SCR-HXFL-M10X1.25X40 8.8 ZOD

$

$

Not available

11

Gravely 21900399

BOLT-M10X1.25X60,HXFLG-OLIVE D

$

$

Not available

12

Gravely 21900419

SCR-HH M8X1.25X45 8.8 ZOD

$

$

Not available

13

Gravely 21900460

PALNUT

$

$

Not available

14

Gravely 21900326

CLAMP,HOSE(10)

$

$

Not available

15

Gravely 21900464

NUT-M8X1.25,FLG,NYLOC-OLIVE D

$

$

Not available

16

Gravely 21900465

NUT-M10X1.25,FLG,NYLOC-OLIVE D

$

$

Not available
