996200 (JSV 3000) - Gravely Atlas JSV Utility Vehicle, Base, Gas (SN: 150101 - 159999) Seat And Seat Belts Parts Diagram

Atlas JSV Utility Vehicle, Base, Gas

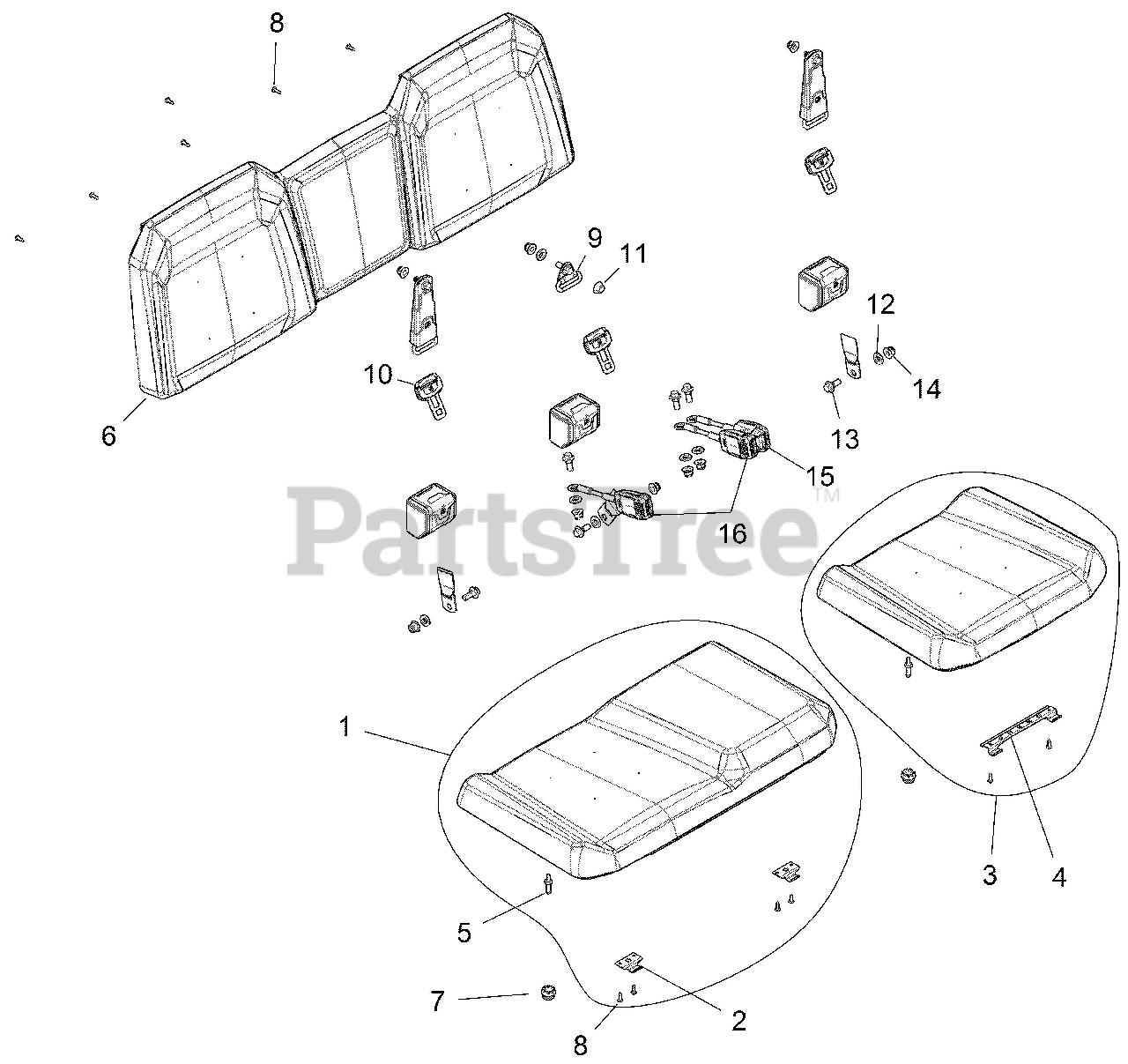

Seat And Seat Belts Parts Diagram

  • Title

1

Gravely 21900890

ASM-SEAT,BTM,60,GRAVELY GRAY

Note: [INCL. 2, QTY 1 OF 8, QTY 4 OF 11]

$

$

Not available

2

Gravely 21900853

BRKT-SEAT HINGE

$

$

Not available

3

Gravely 21900891

ASM-SEAT,BTM,40,GRAVELY GRAY

Note: [INCL. 6, QTY 1 OF 8, QTY 2 OF 11]

$

$

Not available

4

Gravely 21900854

BRKT-SEAT HINGE,DOUBLE

$

$

Not available

5

Gravely 21900306

PIN-SEAT LATCH

$

$

Not available

6

Gravely 21900892

ASM-SEAT,3PASS,BACK,GRVLY GRAY

$

$

Not available

7

Gravely 21900264

GROMMET

$

$

Not available

8

Gravely 21900414

SCR-TX TRUSS-#14X3/4,HI/LO ZBK

$

$

Not available

9

Gravely 21900088

ASM-SEAT BELT,3PT,CENTER

$

$

Not available

10

Gravely 21900089

ASM-SEAT BELT,3PT

$

$

Not available

11

Gravely 21900276

CAP-BOLT HEAD

$

$

Not available

12

Gravely 21900301

WASHER-SEATBELT,RUBBER

$

$

Not available

13

Gravely 21900449

SCR-HXFLSH-M12X1.75-M14X9 ZOD

$

$

Not available

14

Gravely 21900471

NUT-HXFL M12X1.75 NYLOC ZOD

$

$

Not available

15

Gravely 21900090

BUCKLE-SEATBELT,9.6,DRIVER

$

$

Not available

16

Gravely 21900091

BUCKLE-SEATBELT,9.6,PASSENGER

$

$

Not available
