A2-083202 (LT-832) - Toro Lawn Tractor (1983) DRIVE BELT AND PULLEYS Parts Diagram

Lawn Tractor

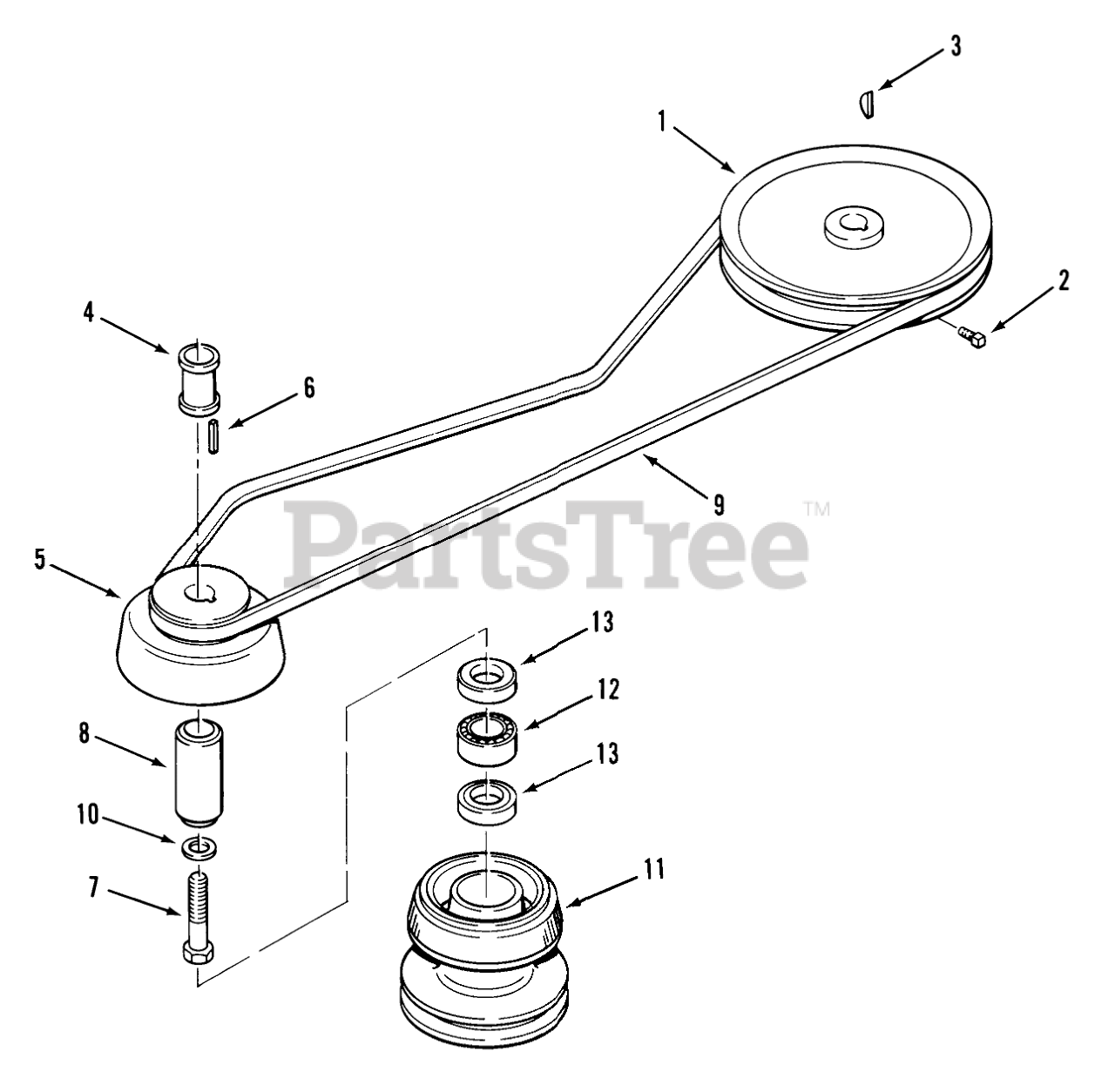

DRIVE BELT AND PULLEYS Parts Diagram

  • Title

1

Toro 106387

PULLEY-TRANSMISSION

$166.99

$

Usually ships in 3-6 days

0

2

Toro 909540

Set Screw
(Superseded to 3242-2)

$1.99

$

In Stock, Qty 6

0

3

Toro 937222

HARD HI PRO KEY

$3.49

$

In Stock, Qty 20+

0

4

Toro 106563

TUBE SPACER

$126.99

$

Usually ships in 3-6 days

0

4

Toro 109731

TUBE SPACER

$

$

Not available

5

Toro 106562

PULLEY-ENGINE

$

$

Not available

6

Toro 105453

Key

$1.99

$

In Stock, only 2 left!

0

7

Toro 908195

HEX HD CAP SCREW

$

$

Not available

8

Toro 106564

RACE BEARING

$

$

Not available

9

Toro 106518

V-BELT

$52.99

$

Usually ships in 3-6 days

0

10

Toro 107750

WASHER

$

$

Not available

11

Toro 106565

Assy Pulley Mwr Dr
(Superseded to 111321)

$

$

Not available

12

Toro 106769

BRG-NEEDLE OPEN END

$52.99

$

In Stock, Qty 5

0

13

Toro 6663

SEAL-OIL

$11.99

$

In Stock, Qty 6

0
