A2-16BP01 (LT-1600) - Toro Lawn Tractor (1984) FUEL AND EXHAUST SYSTEMS Parts Diagram

Lawn Tractor

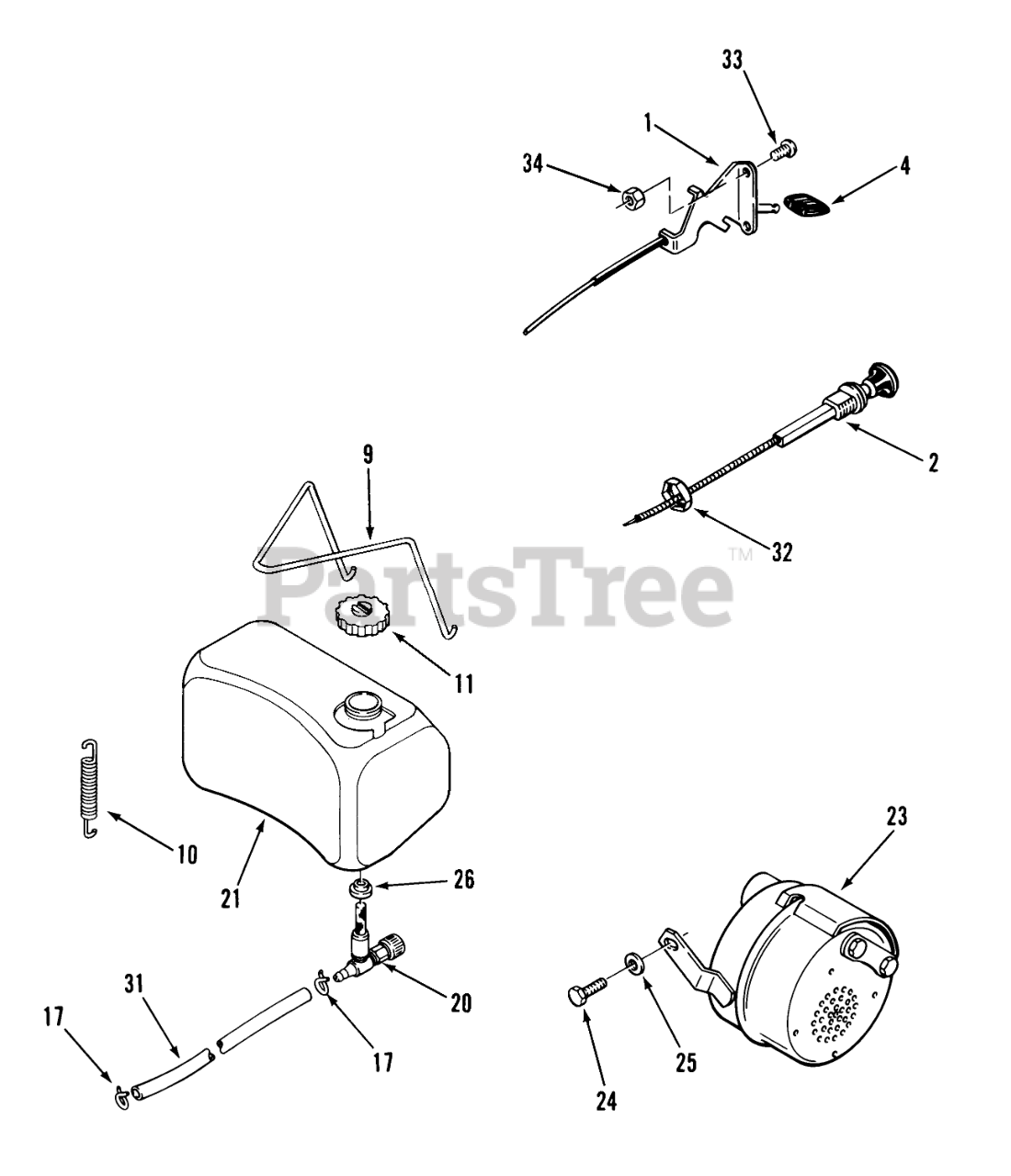

FUEL AND EXHAUST SYSTEMS Parts Diagram

  • Title

1

Toro 109533

CONTROL- THROTTLE

$

$

Not available

1

Toro 109532

Choke/Throttle Control LT-1100 Only

$

$

Not available

2

Toro 109483

CONTROL-CHOKE

$

$

Not available

4

Toro 108917

KNOB-THROTTLE

$2.99

$

In Stock, only 2 left!

0

9

Toro 109960

Hold Down Wire

$

$

Not available

10

Toro 107788

SPRING-EXTENSION

$14.99

$

Usually ships in 3-6 days

0

11

Toro 108011

CAP-GASOLINE

$61.99

$

In Stock, only 1 left!

0

17

Toro 108898

Clamp
(Superseded to 950154)

$

$

Not available

20

Toro 104048

VALVE-FUEL

$31.99

$

In Stock, Qty 5

0

21

Toro 109961

Fuel Tank Assy

$

$

Not available

23

Toro 108614

ASSY-MUFFLER

$

$

Not available

24

Toro 908001

Bolt
(Superseded to 321-2)

$3.49

$

Usually ships in 3-6 days

0

25

Toro 920007

USE 920007P WASHER
(Superseded to 3256-22)

$0.99

$

In Stock, Qty 20+

0

26

Toro 104047

BUSHING
(Superseded to 46-6560)

$5.99

$

In Stock, Qty 20+

0

31

Toro 110433

Fuel Hose 14.5 in. (36.8 cm) B-115 Only
(Superseded to 100061)

$

$

Not available

31

Toro 9147

Hose
(Superseded to 100061)

$

$

Not available

32

Toro 109530

NUT-HEX PALNUT

$0.99

$

In Stock, only 4 left!

0

33

Toro 910792

Screw
(Superseded to 910790)

$0.99

$

In Stock, only 2 left!

0

34

Toro 915740

Nut
(Superseded to 3296-2)

$2.49

$

In Stock, Qty 20+

0
