AH 242 - Shindaiwa Articulating Hedge Trimmer (SN: T48514001001 - T48514999999) Fan Case Parts Diagram

Articulating Hedge Trimmer

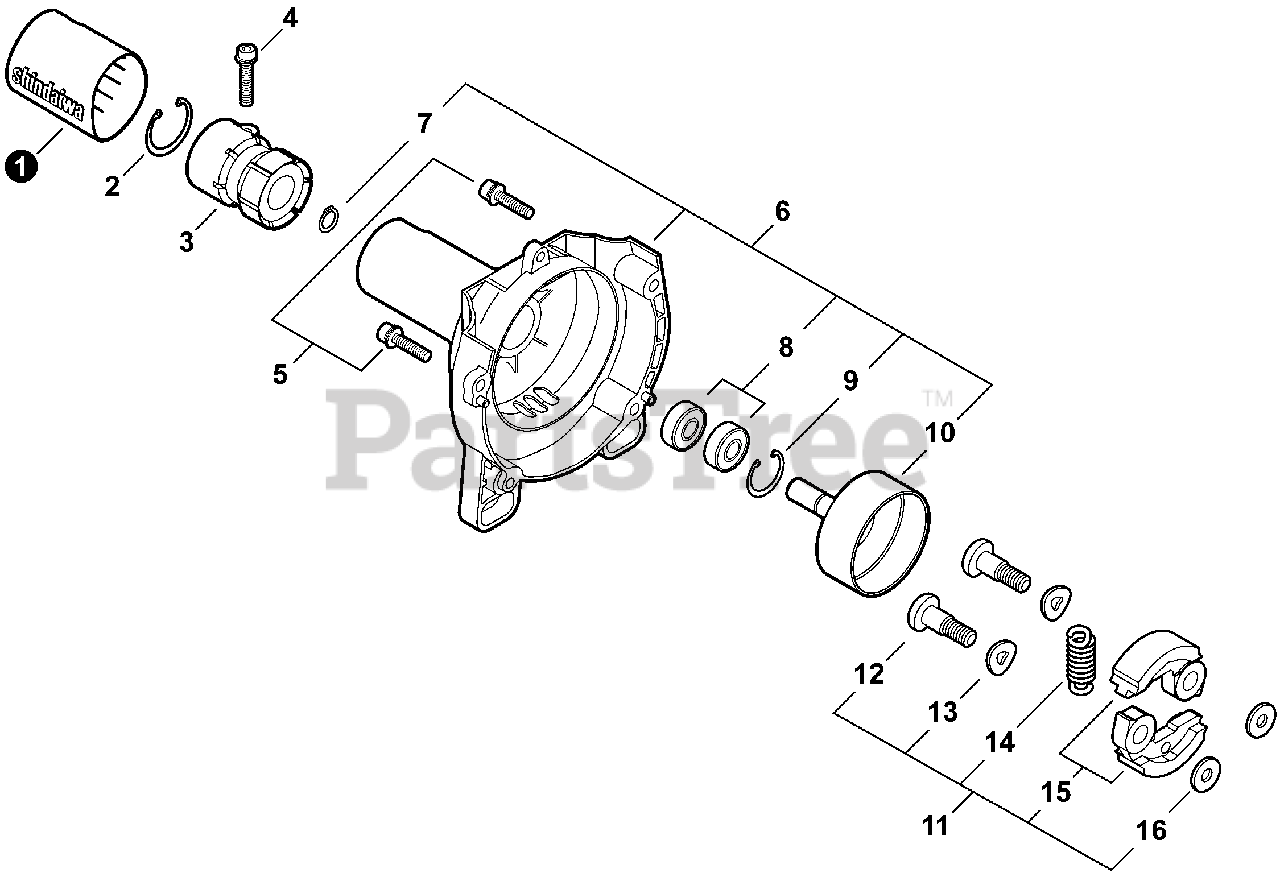

Fan Case Parts Diagram

  • Title

1

Echo A413000000

PROTECTOR

$1.99

$

In Stock, Qty 5

0

2

Echo 90070200040

RING, SNAP Ø40

$1.99

$

Usually ships in 2-4 days

0

3

Echo A575000470

CUSHION, AV

$16.99

$

Usually ships in 2-4 days

0

4

Echo 9112205022

BOLT M5×22

$0.99

$

In Stock, Qty 14

0

5

Echo 90016205018

BOLT 5×18

$0.99

$

In Stock, Qty 19

0

6

Echo P021035702

COVER ASSY, FAN

Note: Includes Items 7-10

$92.99

$

Usually ships in 2-4 days

0

7

Echo 90070100010

E-RING 10

$0.99

$

In Stock, Qty 10

0

8

Echo 90080206000

BEARING, BALL 6000DDU

$13.99

$

In Stock, Qty 20+

0

9

Echo 90070200026

RING, SNAP 26

$1.99

$

In Stock, Qty 13

0

10

Echo A556001300

DRUM, CLUTCH

$23.99

$

In Stock, Qty 20+

0

11

Echo A056000260

CLUTCH ASSY

Note: Includes Items 12-16

$32.99

$

In Stock, Qty 20+

0

12

Echo A557000040

BOLT, CLUTCH

$2.99

$

Usually ships in 2-4 days

0

13

Echo V346000040

WASHER, SPRING

$0.99

$

Usually ships in 2-4 days

0

14

Echo A566000050

SPRING, CLUTCH

$2.99

$

In Stock, Qty 10

0

15

Echo A553000060

SHOE, CLUTCH

$18.99

$

In Stock, only 4 left!

0

16

Echo V304000150

WASHER 6MM

$0.99

$

Usually ships in 2-4 days

0
