AHS 242 - Shindaiwa Articulating Hedge Trimmer (SN: T48614001001 - T48614999999) BLADES, GEAR CASE - WITH TIP GUARD Parts Diagram

Articulating Hedge Trimmer

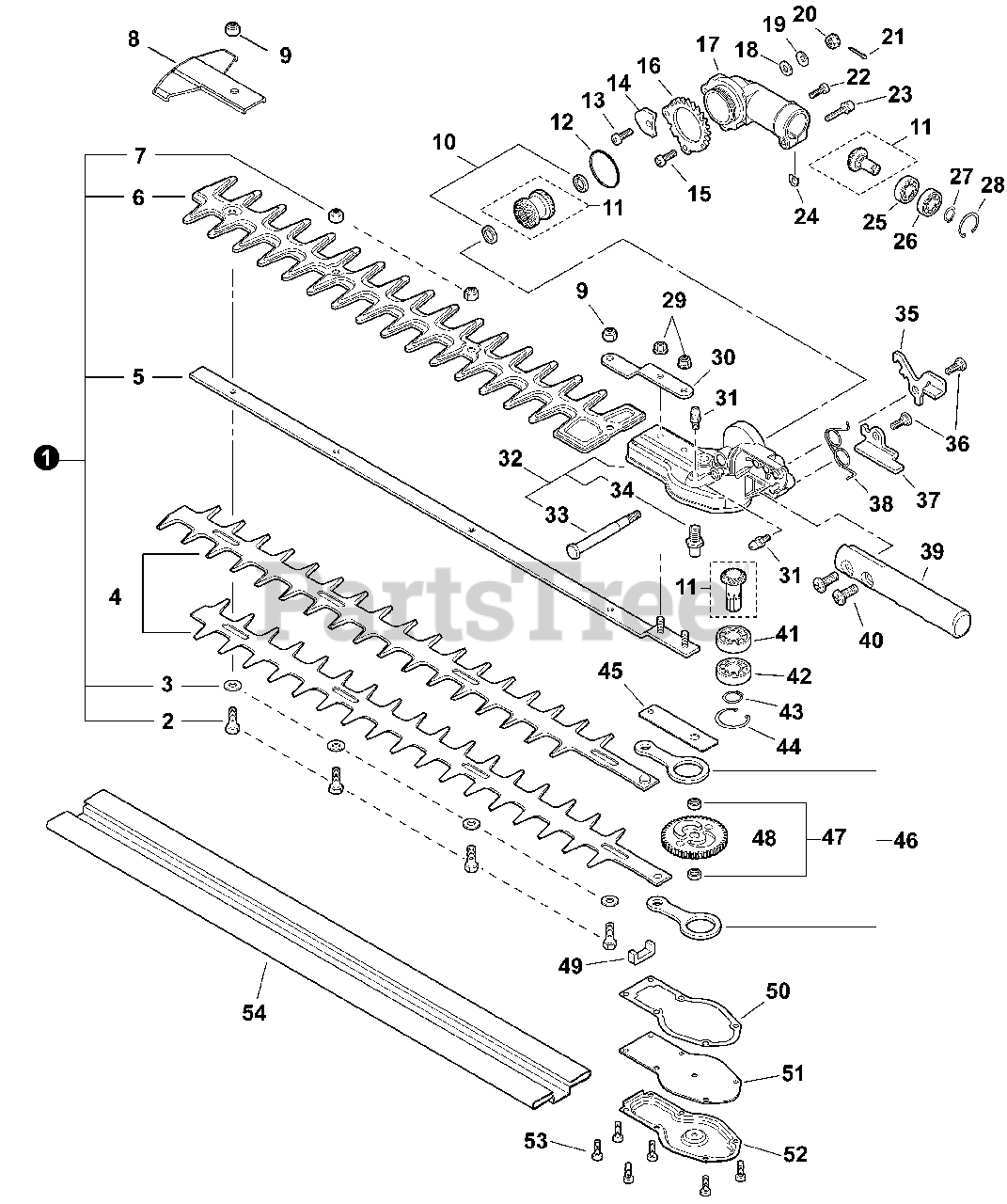

BLADES, GEAR CASE - WITH TIP GUARD Parts Diagram

  • Title

1

Echo X041000520

CUTTER ASSY, 22"

Note: Includes Items 2-7

$236.99

$

Usually ships in 2-4 days

0

2

Echo V204000570

BOLT M6×20

$1.99

$

In Stock, Qty 20+

0

3

Echo V304000240

WASHER M6

$0.99

$

In Stock, Qty 20+

0

4

Echo X411001151

CUTTER 22"

$62.99

$

In Stock, Qty 20+

0

5

Echo X425000940

GUIDE BAR 22"

$28.99

$

Usually ships in 2-4 days

0

6

Echo X431000080

GUARD, CUTTER BLADE

$17.99

$

In Stock, Qty 7

0

7

Echo 43302206460

NUT M6

$1.49

$

In Stock, Qty 20+

0

8

Echo E278000280

GUARD, TIP

$24.99

$

Usually ships in 2-4 days

0

9

Echo 43302206460

NUT M6

$1.49

$

In Stock, Qty 20+

0

10

Echo V307000250

COLLAR 16×10×L= 2

$1.49

$

In Stock, only 3 left!

0

11

Echo P021035780

GEAR SET

$66.99

$

In Stock, only 1 left!

0

12

Echo 9250703150

O-RING

$1.99

$

In Stock, only 4 left!

0

13

Echo V254000100

SCREW M5×16

$1.99

$

Usually ships in 2-4 days

0

14

Echo C629000040

PLATE, STOPPER

$1.99

$

Usually ships in 2-4 days

0

15

Echo 90010505012

BOLT 5×12

$1.49

$

In Stock, Qty 20+

0

16

Echo C465000020

RING, LOCKING

$30.99

$

Usually ships in 2-4 days

0

17

Echo C531000700

HOUSING, UPPER GEAR CASE

$46.99

$

Usually ships in 2-4 days

0

18

Echo 90060300006

WASHER 6.5×13×1

$0.99

$

In Stock, Qty 20+

0

19

Echo V347000030

WASHER, CONE M6

$0.99

$

In Stock, Qty 20+

0

20

Echo V264000170

NUT M6

$1.99

$

In Stock, only 3 left!

0

21

Echo 9300216150

PIN, COTTER 1.6×15

$0.99

$

In Stock, Qty 7

0

22

Echo 90010505012

BOLT 5×12

$1.49

$

In Stock, Qty 20+

0

23

Echo V203000560

BOLT M5×25

$1.99

$

In Stock, Qty 8

0

24

Echo V340000300

D-WASHER

$0.99

$

In Stock, Qty 10

0

25

Echo 90080000609

BEARING, BALL 609

$9.99

$

In Stock, Qty 16

0

26

Echo 90080400609

BEARING, BALL 609ZZ

$15.99

$

In Stock, Qty 7

0

27

Echo 90070600009

RING, SNAP 9

$1.49

$

In Stock, Qty 17

0

28

Echo 90070200024

RING, SNAP 24

$1.99

$

In Stock, Qty 5

0

29

Echo V263000330

NUT, FLANGE M5

$0.99

$

In Stock, Qty 17

0

30

Echo V152002391

BRACKET, CUTTER

$6.99

$

In Stock, only 1 left!

0

31

Echo V187000080

FITTING, GREASE

$1.99

$

In Stock, Qty 20+

0

32

Echo P021028811

GEAR CASE HOUSING ASSY

Note: Includes Items 33-34

$75.99

$

In Stock, only 1 left!

0

33

Echo C534000670

SHAFT

$17.99

$

Usually ships in 2-4 days

0

34

Echo C534000660

MAINSHAFT

$8.49

$

In Stock, only 1 left!

0

35

Echo C661000070

LEVER, LOCK

$8.99

$

In Stock, Qty 8

0

36

Echo V204000580

PIN, RATCHET M6

$1.99

$

In Stock, Qty 20+

0

37

Echo C661000080

RELEASE, LOCK

$6.49

$

Usually ships in 2-4 days

0

38

Echo V452000710

SPRING, TORSION

$2.49

$

In Stock, only 1 left!

0

39

Echo C403000480

LEVER, ADJUSTMENT

$5.49

$

In Stock, only 4 left!

0

40

Echo 9146306020

SCREW, TRUSS M6×20

$0.99

$

Usually ships in 2-4 days

0

41

Echo 90080036001

BEARING, BALL 6001

$9.49

$

In Stock, only 4 left!

0

42

Echo 90080406001

BEARING, BALL 6001ZZ

$11.99

$

In Stock, Qty 6

0

43

Echo 9242312000

RING, SNAP 12

$0.99

$

In Stock, only 3 left!

0

44

Echo 90070200028

RING, SNAP 28

$1.49

$

In Stock, Qty 20+

0

45

Echo V150002460

PLATE, GUIDE

$1.99

$

Usually ships in 2-4 days

0

46

Echo C532000220

CONROD

$10.99

$

In Stock, Qty 15

0

47

Echo V355000440

SPACER 11×8×3.4

$2.49

$

In Stock, Qty 7

0

48

Echo V650000530

GEAR, CAM

$29.99

$

Usually ships in 2-4 days

0

49

Echo V541000220

PACKING, FELT

$1.99

$

In Stock, Qty 6

0

50

Echo V110000140

GASKET, GEAR CASE

$1.99

$

In Stock, Qty 20+

0

51

Echo C542000040

SPACER

$7.49

$

Usually ships in 2-4 days

0

52

Echo C539000081

COVER, GEAR CASE

$8.99

$

In Stock, only 1 left!

0

53

Echo 90010504010

BOLT 4×10

$1.49

$

In Stock, Qty 20+

0

54

Echo X495000590

SCABBARD

$15.99

$

Usually ships in 2-4 days
