Shindaiwa B 530 - Shindaiwa Brush Cutter (SN: 09018344 - 09099783) Carburetor Parts Lookup with Diagrams

1

Echo A021002570

CARBURETOR

Note: 62035-81013

$99.99

$

Usually ships in 2-4 days

2

Echo 12411305910

COVER - TOP

Note: 62083-81310

$15.99

$

Usually ships in 2-4 days

3

Echo 12417411120

CAP, DUST

Note: 72920-81130

$1.49

$

In Stock, Qty 20+

4

Echo 12415813411

NUT, CABLE ADJUST

Note: 20020-81110

$8.49

$

In Stock, only 3 left!

5

Echo 12411105810

LOCKNUT

Note: 20000-81260

$3.49

$

In Stock, only 4 left!

6

Echo 12411411120

SPRING, THROTTLE

Note: 20020-81140

$2.49

$

Usually ships in 2-4 days

7

Echo P004002740

NEEDLE, JET

Note: 62035-81432

$11.99

$

Usually ships in 2-4 days

8

Echo 12411511120

WASHER

Note: 20020-81150

$1.99

$

Usually ships in 2-4 days

9

Echo P004002680

SLIDE VALVE

Note: 62035-81330

$39.99

$

Usually ships in 2-4 days

10

Echo P004002690

PUMP COVER ASSY

Note: 62035-81340

$35.99

$

Usually ships in 2-4 days

11

Echo P004003250

COVER, PUMP

Note: 62035-81350

$16.99

$

Usually ships in 2-4 days

12

Echo 12437455430

VALVE

Note: 68501-81340

$13.99

$

Usually ships in 2-4 days

13

Echo 12436755430

SPRING

Note: 62035-81360

$2.99

$

Usually ships in 2-4 days

14

Echo P004002720

DIAPHRAGM, METERING

Note: 62035-81410

$25.99

$

Usually ships in 2-4 days

15

Echo 12435521330

SPRING, ADJUST

Note: 20011-81360

$1.99

$

In Stock, Qty 10

16

Echo 12435412710

NEEDLE - HIGH SPEED

Note: 20070-81350

$15.99

$

In Stock, only 1 left!

17

Echo 12416011120

SPRING

Note: 72920-81820

$2.49

$

In Stock, only 1 left!

18

Echo 12415905530

SCREW, IDLE ADJUST

Note: 20000-81310

$2.49

$

In Stock, Qty 6

19

Echo 12436312710

GASKET, PUMP

Note: 20019-81660

$6.99

$

Usually ships in 2-4 days

20

Echo 12436212710

PLATE, PUMP

Note: 20019-81610

$18.99

$

In Stock, only 1 left!

21

Echo 12436412710

DIAPHRAGM, PUMP

Note: 20019-81620

$15.99

$

Usually ships in 2-4 days

22

Echo 12436112710

GASKET, PUMP

Note: 20019-81630

$2.99

$

In Stock, only 2 left!

23

Echo 12435861830

GASKET

Note: 62035-81370

$3.49

$

Usually ships in 2-4 days

24

Echo P004002700

SCREW

Note: 62035-81380

$0.99

$

Usually ships in 2-4 days

25

Echo P004001720

COVER, DIAPHRAGM

Note: 20019-81670

$7.99

$

Usually ships in 2-4 days

26

Echo P004001340

LEVER, METERING

Note: 20011-81451

$4.99

$

Usually ships in 2-4 days

27

Echo P004001350

SCREW, METERING LEVER PIN

Note: 20011-81470

$0.99

$

Usually ships in 2-4 days

28

Echo 12433221330

PIN, METERING LEVER

Note: 20011-81460

$1.99

$

In Stock, only 3 left!

29

Echo P004001660

VALVE, NEEDLE

Note: 20019-81440

$11.99

$

In Stock, only 1 left!

30

Echo 12433149930

SPRING

Note: 20040-81430

$1.99

$

In Stock, only 1 left!

31

Echo P004003000

GASKET

Note: 70210-81440

$3.49

$

Usually ships in 2-4 days

32

Echo P004003010

PLATE

Note: 70210-81451

$13.99

$

Usually ships in 2-4 days

33

Echo 12438012710

BULB, PURGE

Note: 20087-81820

$9.99

$

In Stock, only 4 left!

34

Echo P004001000

SCREW

Note: 20000-81540

$0.99

$

Usually ships in 2-4 days

35

Echo P004000890

SPRING

Note: 20000-81340

$0.99

$

In Stock, Qty 6

36

Echo P004000880

SCREW, SLOW AIR

Note: 20000-81330

$2.99

$

Usually ships in 2-4 days

37

Echo P004002730

NEEDLE, JET

Note: 62035-81420

$25.99

$

Usually ships in 2-4 days

38

Echo P004002980

HOLDER, JET

Note: 70210-81420

$13.99

$

Usually ships in 2-4 days

39

Echo P004001640

SCREEN, SPARK ARRESTOR

Note: 68501-81480

$3.49

$

Usually ships in 2-4 days

40

Echo P004002710

PLATE, PUMP

Note: 62035-81390

$12.99

$

Usually ships in 2-4 days

41

Echo V430002930

CABLE, THROTTLE

Note: 62035-83111

$7.99

$

Usually ships in 2-4 days

42

Echo V475004500

TUBE

Note: 33013-62311

$3.49

$

Usually ships in 2-4 days

43

Echo V485001700

LEAD - IGNITION

Note: 14352-13100

$3.99

$

Usually ships in 2-4 days

44

Echo V485001710

LEAD - GROUND

Note: 14350-13000

$5.99

$

Usually ships in 2-4 days

45

Echo A023000160

AIR FILTER CASE ASSY

Note: 62035-82011

$18.99

$

Usually ships in 2-4 days

46

Echo V323000090

INSULATOR

Note: 62035-82362

$5.99

$

Usually ships in 2-4 days

47

Echo V203000530

SCREW - 5X40

Note: 11022-05400

$1.99

$

Usually ships in 2-4 days

48

Echo A226000660

FILTER, AIR

(Superseded to A226001860) 

Note: 62035-82121

$32.99

$

Usually ships in 2-4 days

49

Echo V103001040

GASKET, INTAKE

Note: 62035-82330

$0.99

$

Usually ships in 2-4 days

50

Echo A244000180

PLATE

Note: 62035-82340

$2.99

$

Usually ships in 2-4 days

51

Echo 90010505075

SCREW - 5X75

Note: 01020-05750

$1.99

$

Usually ships in 2-4 days

52

Echo 90060500005

LOCKWASHER - 5

Note: 01600-05131

$0.99

$

In Stock, Qty 6

53

Echo P021027800

AIR FILTER COVER ASSY

Note: 62035-82040

$31.99

$

Usually ships in 2-4 days

54

Echo A232000840

COVER, AIR FILTER

Note: 62035-82131

$12.99

$

Usually ships in 2-4 days

55

Echo V299000410

THUMBSCREW

Note: 20870-33120

$6.49

$

In Stock, Qty 8

56

Echo V303000200

WASHER

Note: 62035-82350

$1.99

$

Usually ships in 2-4 days

57

Echo V103001030

GASKET, INTAKE

Note: 62035-81310

$0.99

$

Usually ships in 2-4 days

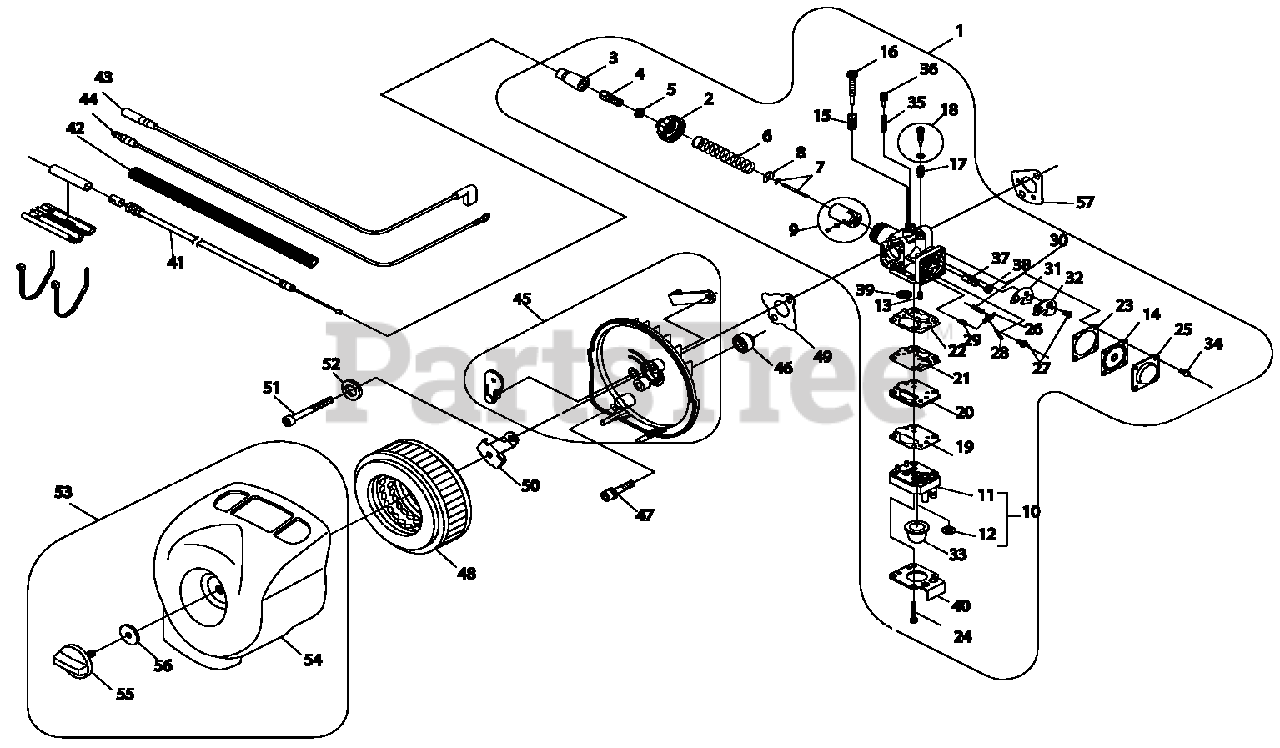

B 530 - Shindaiwa Brush Cutter (SN: 09018344 - 09099783) Carburetor Parts Diagram

Carburetor Parts Diagram
