DD 2024 - Toro EarthPro Directional Drill (2007) ROD LOADER ASSEMBLY Parts Diagram

EarthPro Directional Drill

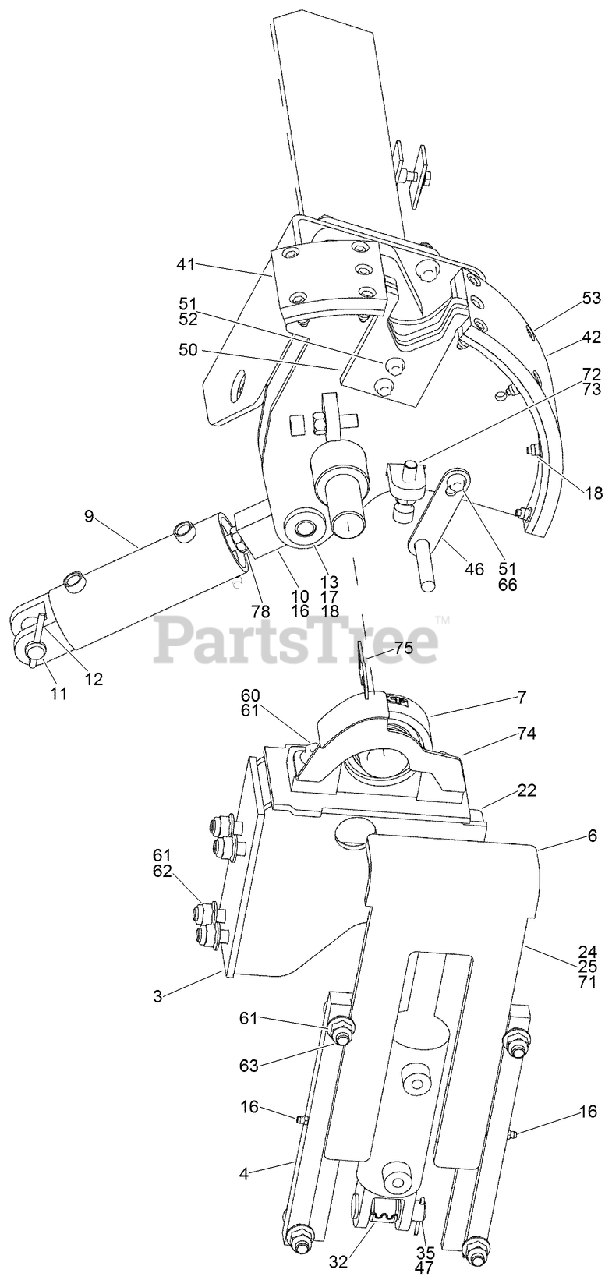

ROD LOADER ASSEMBLY Parts Diagram

  • Title

Toro AU110471

ASSEMBLY - Rod Loader

Note: Not illustrated

$

$

Currently unavailable

3

Toro AU109966

ASSEMBLY - Bearing Mount
(Superseded to AU109966-03)

$

$

Not available

4

Toro AU12GB2036

PLATE - Elevator Guide
(Superseded to AU12GB2036-03)

$

$

Not available

6

Toro AU12GB2035

ASSEMBLY - Elevator
(Superseded to AU12GB2035-03)

$

$

Not available

7

Toro AU109963

BEARING-PILLOW

$

$

Currently unavailable

9

Toro AU8HC20005

HYD CYLINDER ASM

$

$

Currently unavailable

10

Toro AU12GB7338

EYE-ROD, CYLINDER

$

$

Not available

11

Toro AUH30262

PIN-CLEVIS

$13.99

$

Usually ships in 3-6 days

0

12

Toro AU432-1628

PIN-COTTER

$2.99

$

Usually ships in 3-6 days

0

13

Toro AU109680

PIN-STRAIGHT

$

$

Currently unavailable

16

Toro AU219-8

FITTING-Lube 1/4-28 Tpr SAE-LT .54 Long
(Superseded to 302-57)

$1.99

$

Usually ships in 3-6 days

0

17

Toro AU109721

SCREW, METRIC FLANGE w/BODY - M6 x 50

$

$

Currently unavailable

18

Toro AU100525

NUT, METRIC FLANGE PREVAILING - M6 Zinc

$1.49

$

Usually ships in 3-6 days

0

22

Toro AU8EP65159

SWITCH-PROXIMITY

$

$

Currently unavailable

24

Toro AU495-31020

WASHER - 0.203 x 0.469 x 0.049 in CST ZND
(Superseded to 3256-14)

$0.99

$

In Stock, Qty 20+

0

25

Toro AU231-14409

NUT - Prev Trq # 10 GRB ZND Insert
(Superseded to 3296-2)

$2.49

$

In Stock, Qty 20+

0

32

Toro AU109676

BUSHING-SPRING

$

$

Currently unavailable

35

Toro AU432-820

PIN-Cotter, 1/8 x 1-1/4 in ZN
(Superseded to 3272-12)

$0.99

$

In Stock, Qty 20+

0

41

Toro AU114756

PAD-WEAR, ROD LOADER

$

$

Currently unavailable

42

Toro AU114757

PAD-WEAR, ROD LOADER

$

$

Currently unavailable

46

Toro AU12GB7339

FLAG-SENSOR

$

$

Currently unavailable

47

Toro AU109885

PIN-CLEVIS

$

$

Currently unavailable

50

Toro AU111864

PLATE-GUIDE, PIPE
(Superseded to AU111864-03)

Note: Optional Equipment

$

$

Not available

51

Toro AU100526

NUT-TORQUE, PREVAILING

$0.99

$

Usually ships in 3-6 days

0

52

Toro AU100319

SCREW, METRIC FLANGE w/BODY - M8 x 40

$

$

Currently unavailable

53

Toro AU100870

SCREW, METRIC FLANGE w/BODY-M6 x 25

$1.49

$

Usually ships in 3-6 days

0

60

Toro AU100348

SCREW-HHF

$4.99

$

In Stock, Qty 7

0

72

Toro AU962-12050

SCREW - Soc Hd M12 x 50 Class 10.9 ZND

$

$

Currently unavailable

73

Toro AU829-1412

NUT

$

$

Not available

62

Toro AU100416

SCREW-HFH

$3.99

$

0

61

Toro AU100528

NUT-HHF, LOCK

$3.49

$

In Stock, Qty 15

0

63

Toro AU100418

SCREW, METRIC FLANGE FULL - M12 x 50

$

$

Currently unavailable

66

Toro AU100873

SCREW-HH

$1.99

$

Usually ships in 3-6 days

0

71

Toro AU470-11016

SCREW - Phd Sltd #10-24 x 1.00 CST ZND

$0.99

$

Usually ships in 3-6 days

0

74

Toro AU111657

ASSEMBLY - Row Decal Mount

$

$

Currently unavailable

75

Toro AU111660

PLATE-POINTER

$

$

Currently unavailable

78

Toro AU05-JN0625NF

NUT - Jam, Hex, 5/8 - 18 NF

$

$

Currently unavailable
