  • Title

Toro AU114974

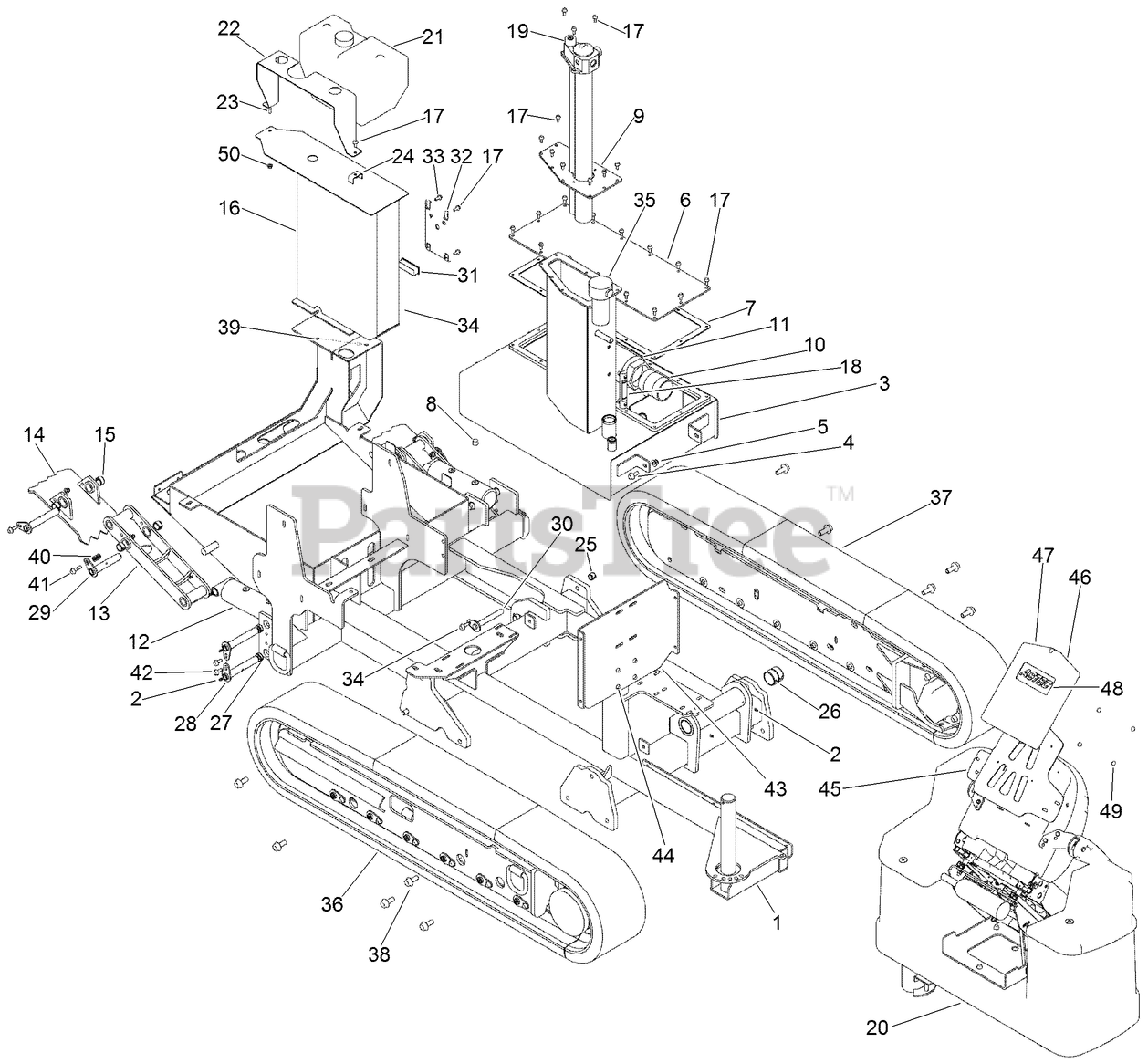

ASSEMBLY - Undercarriage

Note: Not illustrated

$

$

Currently unavailable

1

Toro AU109877

FRAME - Main

$

$

Currently unavailable

2

Toro AU219-8

FITTING-Lube 1/4-28 Tpr SAE-LT .54 Long
(Superseded to 302-57)

$1.99

$

Usually ships in 3-6 days

0

3

Toro AU109880

TANK - Hydraulic

$

$

Currently unavailable

4

Toro AU101477

SCREW, METRIC FLANGE w/BODY-M12 x 30

$5.49

$

Usually ships in 3-6 days

0

5

Toro AU100528

NUT-HHF, LOCK

$3.49

$

In Stock, Qty 15

0

6

Toro AU12GB3355

PLATE - Hydraulic Tank Cover
(Superseded to AU12GB3355-03)

$

$

Not available

7

Toro AU12GB2331

GASKET-COVER LID, HYDRAULIC TANK

$

$

Currently unavailable

8

Toro AU217-439

PLUG-PIPE, HEX SOCKET

$1.99

$

Usually ships in 3-6 days

0

9

Toro AU113816

PLATE - Hydraulic Tank Lid
(Superseded to AU113816-03)

$

$

Not available

10

Toro AU8PN24800

NIPPLE-PIPE

$

$

Currently unavailable

11

Toro AU8FL10008

STRAINER-SUCTION, 100 MESH

$

$

Currently unavailable

12

Toro AU103989A1

HYD CYLINDER ASM

$

$

Not available

13

Toro AU108449

WELDMENT - Stabilizer Leg

$

$

Currently unavailable

14

Toro AU108446

WELDMENT - Stabilizer Foot
(Superseded to AU108446-03)

$

$

Not available

15

Toro AU109014

BUSHING-SPRING

$

$

Currently unavailable

16

Toro AU114676

WELDMENT - Rear Controls Box

$

$

Not available

17

Toro AU100872

SCREW, METRIC FLANGE w/BODY - M8 x 20

$1.49

$

Usually ships in 3-6 days

0

18

Toro AUL116247

GAUGE-SIGHT
(Superseded to AU8PG00005)

$

$

Not available

19

Toro AU113815

FILTER ASM (HYDRAULIC TANK)

$

$

Currently unavailable

20

Toro AU114804

ASSEMBLY - Operators Console

$

$

Currently unavailable

21

Toro AU113533

BOTTLE - Mud Pump System Anti-Freeze
(Superseded to 127-0905)

$

$

Not available

22

Toro AU113714

BRACKET - Anti-Freeze Bottle
(Superseded to AU113714-03)

$

$

Not available

23

Toro AU100320

SCREW, METRIC FLANGE w/BODY - M8 x 45

$1.99

$

Usually ships in 3-6 days

0

24

Toro AU100526

NUT-TORQUE, PREVAILING

$0.99

$

Usually ships in 3-6 days

0

25

Toro AU108957

BUSHING-SPRING

$

$

Currently unavailable

26

Toro AU108955

BUSHING-SPRING

$

$

Currently unavailable

27

Toro AU108958

BUSHING-SPRING

$

$

Currently unavailable

28

Toro AU108615

PIN-FLAG

$

$

Currently unavailable

29

Toro AU111526

PIN-FLAG

$

$

Currently unavailable

30

Toro AU109348

PIN-FLAGGED

$

$

Currently unavailable

31

Toro AU50GB2302

LATCH-TRIGGER, RAISED (W/LOCK)

$

$

Not available

32

Toro AU100862

NUT-U

$4.49

$

Usually ships in 3-6 days

0

33

Toro AU114684

PLATE - Rear Controls Panel
(Superseded to 127-0906)

$

$

Not available

34

Toro AU100877

SCREW-HH

$17.99

$

Usually ships in 3-6 days

0

35

Toro AU8FL20024

FILTER-HYD, 350PSI (6 MICRON)

$

$

Currently unavailable

36

Toro AU109342

ASSEMBLY - Track RH

$

$

Currently unavailable

37

Toro AU109343

ASSEMBLY - Track LH

$

$

Currently unavailable

38

Toro AU100831

SCREW-HHF

$6.99

$

Usually ships in 3-6 days

0

39

Toro AU100527

NUT-FLANGE, NYLOCK

$1.49

$

Usually ships in 3-6 days

0

40

Toro AU495-81129

WASHER - 0.406 x 0.750 x 0.119 in CST ZND

$

$

Currently unavailable

41

Toro AU100331

SCREW-HHF

$

$

Currently unavailable

42

Toro AU100876

SCREW-FLANGE
(Superseded to 108-1531)

$1.99

$

Usually ships in 3-6 days

0

43

Toro AU114971

PLATE - Fuse Box Mount

$

$

Currently unavailable

44

Toro AU100873

SCREW-HH

$1.99

$

Usually ships in 3-6 days

0

45

Toro AU111717

PLATE - Operators Manual Case Mounting
(Superseded to AU111717-03)

$

$

Not available

46

Toro AU103216

HOLDER-MANUAL, OPERATOR

$68.99

$

Usually ships in 3-6 days

0

47

Toro AUR46465

LANYARD

$22.99

$

Usually ships in 3-6 days

0

48

Toro AUR46463

POST-MANUAL

$1.99

$

Usually ships in 3-6 days

0

49

Toro AU151-522

RIVET

$0.99

$

Usually ships in 3-6 days

0

50

Toro AU100443

NUT, METRIC HEX FLANGE - M8, Zinc

$0.99

$

Usually ships in 3-6 days

0
