DD 4045 - Toro EarthPro Directional Drill (2009) 5 SECTION VALVE ASSEMBLY Parts Diagram

EarthPro Directional Drill

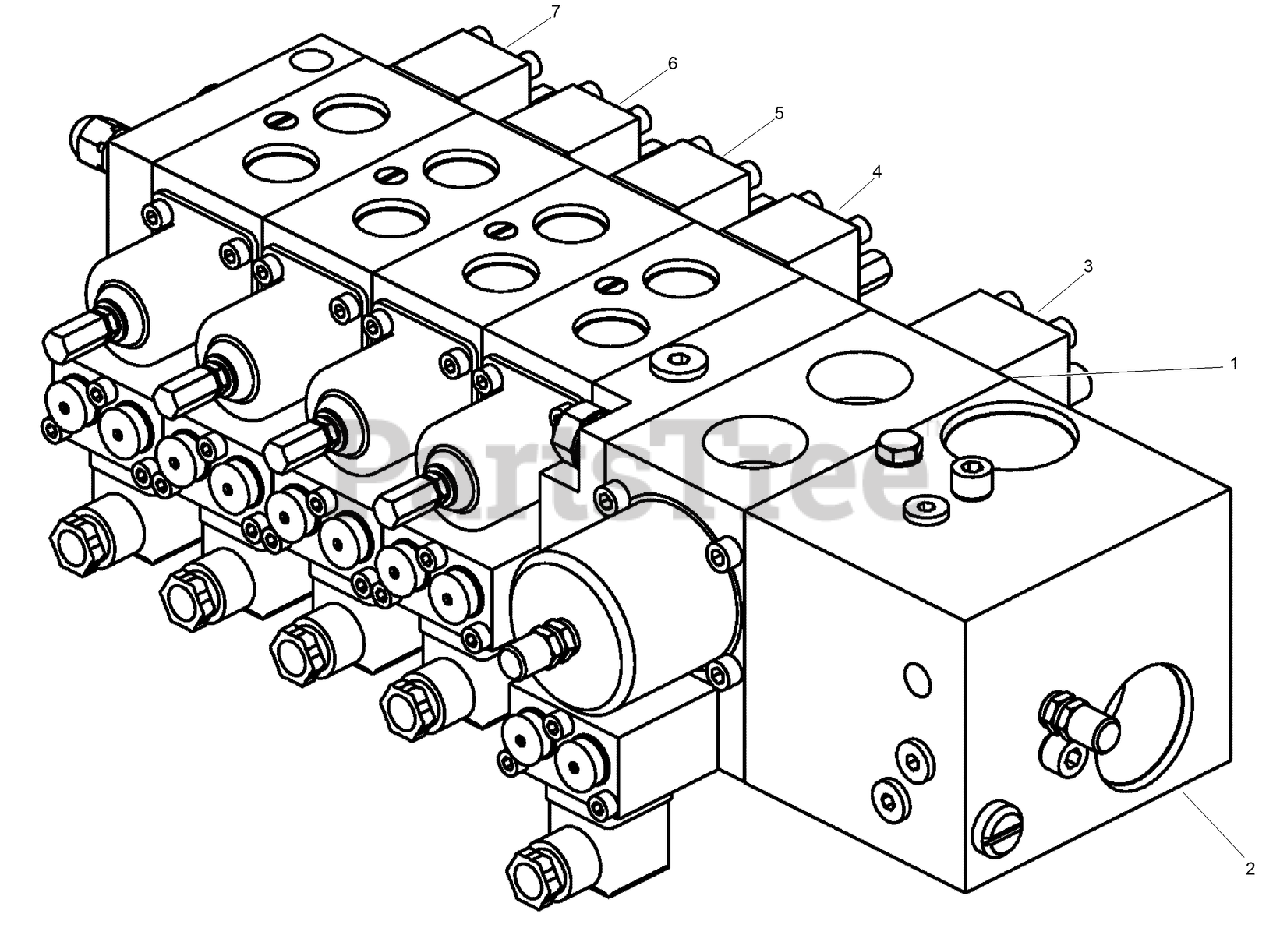

5 SECTION VALVE ASSEMBLY Parts Diagram

  • Title

Toro AU116575

VALVE - Dir, El / Hyd Prop, 5 Section

Note: Not illustrated

$

$

Currently unavailable

1

PORT - Tank

Note: Not serviced separately

$

$

Not available

2

PORT - Pressure

Note: Not serviced separately

$

$

Not available

3

SECTION - Carriage

Note: Not serviced separately

$

$

Not available

4

SECTION - Fan

Note: Not serviced separately

$

$

Not available

5

SECTION - Left Track

Note: Not serviced separately

$

$

Not available

6

SECTION - Right Track

Note: Not serviced separately

$

$

Not available

7

SECTION - Auxiliary

Note: Not serviced separately

$

$

Not available
