DD 4045 - Toro EarthPro Directional Drill (2009) HOOD MOUNTING ASSEMBLY Parts Diagram

EarthPro Directional Drill

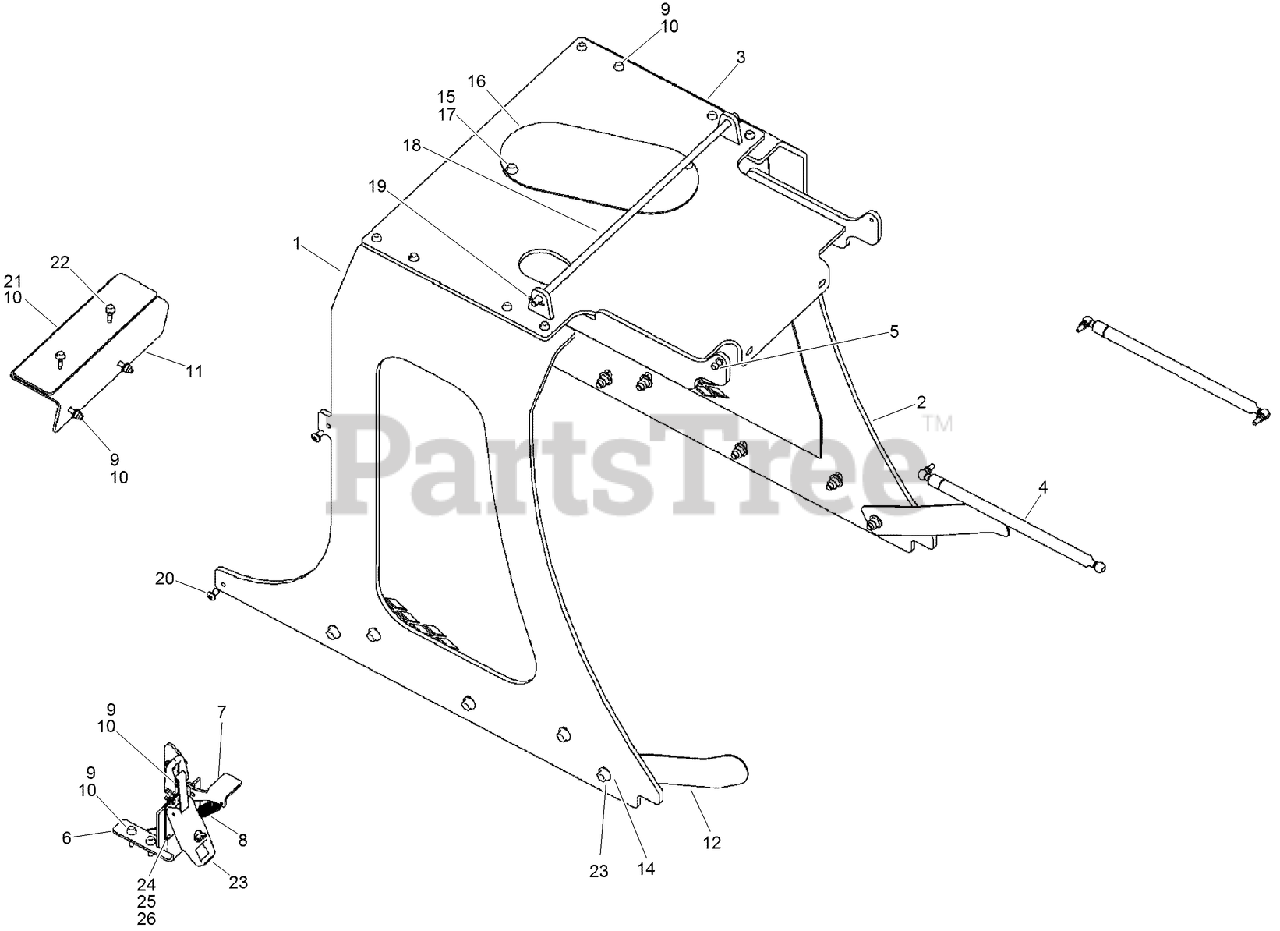

HOOD MOUNTING ASSEMBLY Parts Diagram

  • Title

Toro AU118310

ASSEMBLY - Hood

Note: Not illustrated

$

$

Currently unavailable

1

Toro AU121461

PLATE - Mounting, Hood, Weldment

$

$

Currently unavailable

2

Toro AU121462

PLATE - Mounting, Hood, Weldment

$

$

Currently unavailable

3

Toro AU118309

WELDMENT - Hood Mounting

$

$

Currently unavailable

4

Toro AU32GB5110

SPRING-GAS

$

$

Currently unavailable

5

Toro AU8HH96100

STUD-BALL

$

$

Currently unavailable

6

Toro AU118512

MOUNT - Hood Safety Latch

$

$

Currently unavailable

7

Toro AU111869

LATCH - Hood Safety
(Superseded to AU111869-03)

$

$

Not available

8

Toro AU112966

SPRING-TENSION

$

$

Currently unavailable

9

Toro AU100318

SCREW, METRIC FLANGE w/BODY - M8 x 35

$1.99

$

Usually ships in 3-6 days

0

10

Toro AU100526

NUT-TORQUE, PREVAILING

$0.99

$

Usually ships in 3-6 days

0

11

Toro AU118515

PLATE - Rear Hood Stop

$

$

Currently unavailable

12

Toro AU32GB5016

GUIDE - Hood

$

$

Currently unavailable

13

Toro AU100830

SCREW

Note: Not illustrated

$3.49

$

In Stock, Qty 7

0

14

Toro AU100528

NUT-HHF, LOCK

$3.49

$

In Stock, Qty 15

0

15

Toro AU100863

NUT-U

$

$

Currently unavailable

16

Toro AU118526

PLATE - Cover

$

$

Currently unavailable

17

Toro AU100876

SCREW-FLANGE
(Superseded to 108-1531)

$1.99

$

Usually ships in 3-6 days

0

18

Toro AU118537

PIN-MOUNT, HOOD

$

$

Currently unavailable

19

Toro AU8CP10403

PIN - Cotter, 1/8 Dia x 1 Long

$

$

Currently unavailable

20

Toro AU119330

SCREW-HSH

$

$

Currently unavailable

21

Toro AU119331

PLATE - Sandwich

$

$

Currently unavailable

22

Toro AU100874

SCREW-HHF

$1.49

$

Usually ships in 3-6 days

0

23

Toro AU122811

LATCH - Lockable, Draw

$

$

Currently unavailable

24

Toro AU470-11012

SCREW - PHd Sltd # 10-24 x 0.75 CST ZND

$2.49

$

Usually ships in 3-6 days

0

25

Toro AU495-11022

WASHER - 0.219 x 0.438 x 0.049 in CST ZND

$

$

Not available

26

Toro AU193-1004

NUT-#10-24 KEPS
(Superseded to 32149-7)

$0.99

$

In Stock, Qty 10

0
