DD 4045 - Toro EarthPro Directional Drill (2009) THRUST FRAME ELEVATOR ASSEMBLY Parts Diagram

EarthPro Directional Drill

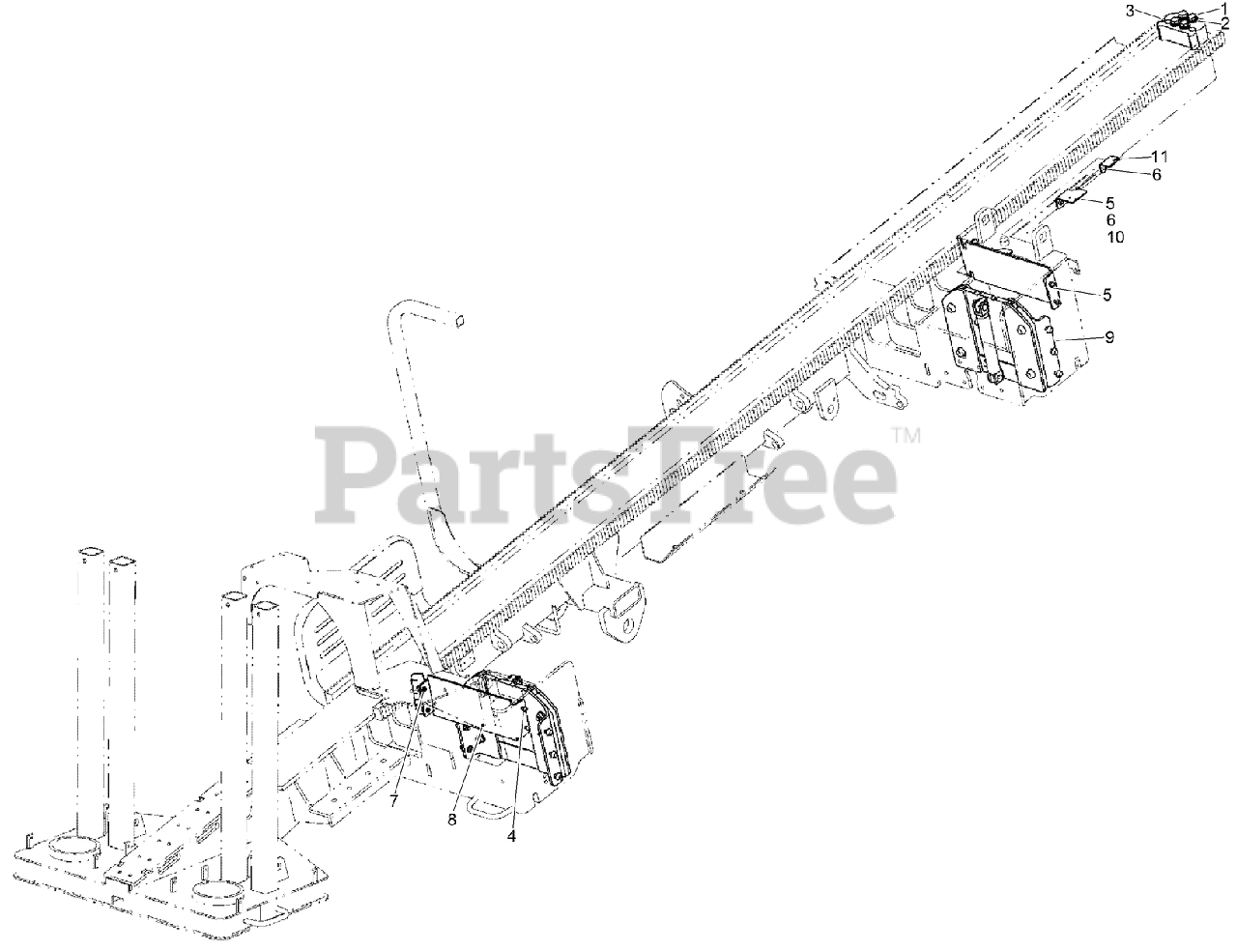

THRUST FRAME ELEVATOR ASSEMBLY Parts Diagram

  • Title

Toro AU115522

ASSEMBLY - Thrust Frame

Note: Not illustrated

$

$

Currently unavailable

1

Toro AU426-1256

SCREW-HH

$8.49

$

Usually ships in 3-6 days

0

2

Toro AU496-11081

WASHER

$0.99

$

Usually ships in 3-6 days

0

3

Toro AU32GB2011

STOP - Carriage

$

$

Currently unavailable

4

Toro AU100318

SCREW, METRIC FLANGE w/BODY - M8 x 35

$1.99

$

Usually ships in 3-6 days

0

5

Toro AU100526

NUT-TORQUE, PREVAILING

$0.99

$

Usually ships in 3-6 days

0

6

Toro AU100873

SCREW-HH

$1.99

$

Usually ships in 3-6 days

0

7

Toro AU100874

SCREW-HHF

$1.49

$

Usually ships in 3-6 days

0

8

Toro AU118917

ASSEMBLY - Deflector Plate

$

$

Currently unavailable

9

Toro AU121923

ASSEMBLY - Elevator

$

$

Currently unavailable

10

Toro AU122460

PLATE - Proximity Switch Mount

$

$

Currently unavailable

11

Toro AU122537

PLATE - Switch Mount

$

$

Currently unavailable
