DD 4045 - Toro EarthPro Directional Drill (2009) TOOL JOINT LUBE APPLICATOR ASSEMBLY Parts Diagram

EarthPro Directional Drill

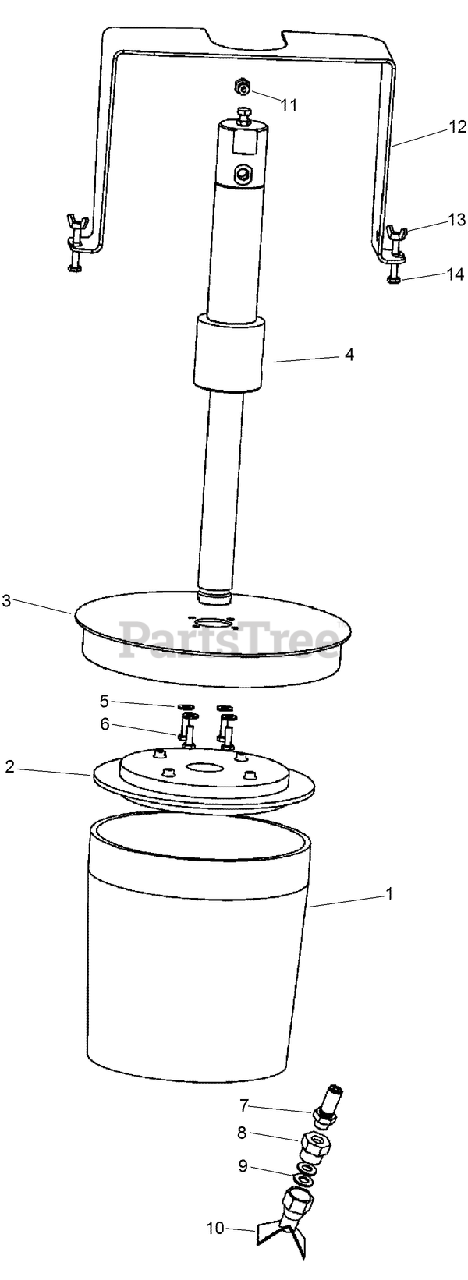

TOOL JOINT LUBE APPLICATOR ASSEMBLY Parts Diagram

  • Title

Toro AU108820

ASSEMBLY - Tool Joint Lube Applicator

Note: Not illustrated

$

$

Currently unavailable

1

Toro AU01DT9904

COMPOUND-THREAD

$

$

Not available

2

Toro AU108646

SEAL - Rubber, Follower

$

$

Currently unavailable

3

Toro AU108790

WELDMENT - Cover
(Superseded to AU108790-03)

$

$

Not available

4

Toro AU108837

HYD GREASE PUMP ASM

$

$

Not available

5

Toro AU495-11028

WASHER-FLAT

$

$

Not available

6

Toro AU426-412

BOLT

$0.99

$

Usually ships in 3-6 days

0

7

Toro AU8OAA0404

CONNECTION - Bulkhead, Straight -4 ORFS / -4 ORB

$

$

Currently unavailable

8

Toro AU8SA31004

REDUCER-STRAIGHT, THREADED

$

$

Currently unavailable

9

Toro AU496-11041

WASHER - 0.406 x 0.812 x 0.065 in HDN ZND

$

$

Currently unavailable

10

Toro AU108817

NOZZLE - Spray, Airless

$

$

Not available

11

Toro AU218-5153

PLUG - Hex, ORB 1/4

$3.49

$

Usually ships in 3-6 days

0

12

Toro AU109840

TIE DOWN - Grease Cover
(Superseded to AU109840-03)

$

$

Not available

13

Toro AU129-409

NUT - Wing, 1/4 - 20 UNC ZND

$

$

Currently unavailable

14

Toro AU426-428

BOLT - Hex Hd 0.25 x 1.75 GR8 ZND

$

$

Not available
