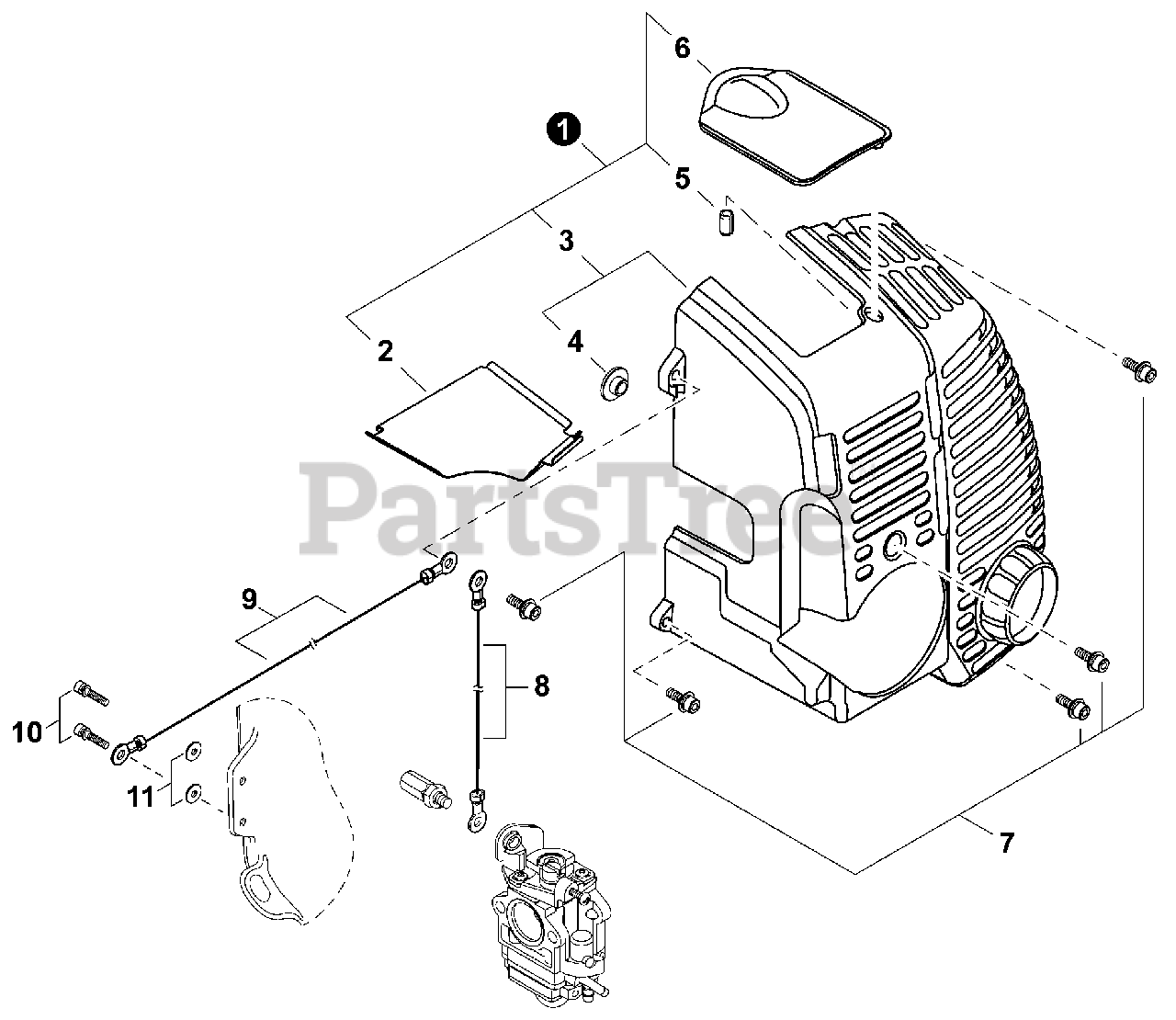

EB 802 - Shindaiwa Backpack Blower (SN: P43814001001 - P43814999999) Engine Cover Parts Diagram

Backpack Blower

Engine Cover Parts Diagram

  • Title

1

Echo P021041070

COVER ASSY, ENGINE

Note: Includes ITEMS 2-6

$71.99

$

Usually ships in 2-4 days

0

2

Echo A322000083

HEAT SHIELD, EXHAUST

$9.49

$

Usually ships in 2-4 days

0

3

Echo A190001210

COVER, ENGINE

Note: Includes ITEM 4

$50.99

$

Usually ships in 2-4 days

0

4

Echo V353000610

COLLAR 5

$2.49

$

Usually ships in 2-4 days

0

5

Echo 90034240008

PIN, SPRING 4×8
(Superseded to Discontinued)

$

$

Not available

6

Echo A429000080

COVER, SPARK PLUG

$7.49

$

In Stock, only 1 left!

0

7

Echo 9111305018

BOLT M5×18

$0.99

$

Usually ships in 2-4 days

0

8

Echo V485001310

WIRE, STATIC DISCHARGE 110MM

$1.99

$

Usually ships in 2-4 days

0

9

Echo V485001320

LEAD 0.75mm2 L= 590

$1.99

$

Usually ships in 2-4 days

0

10

Echo V203000460

BOLT, ADHESIVE M5×18

$1.99

$

Usually ships in 2-4 days

0

11

Echo V303000140

WASHER Ø15×Ø5.2×1.6

$0.99

$

In Stock, Qty 8

0
