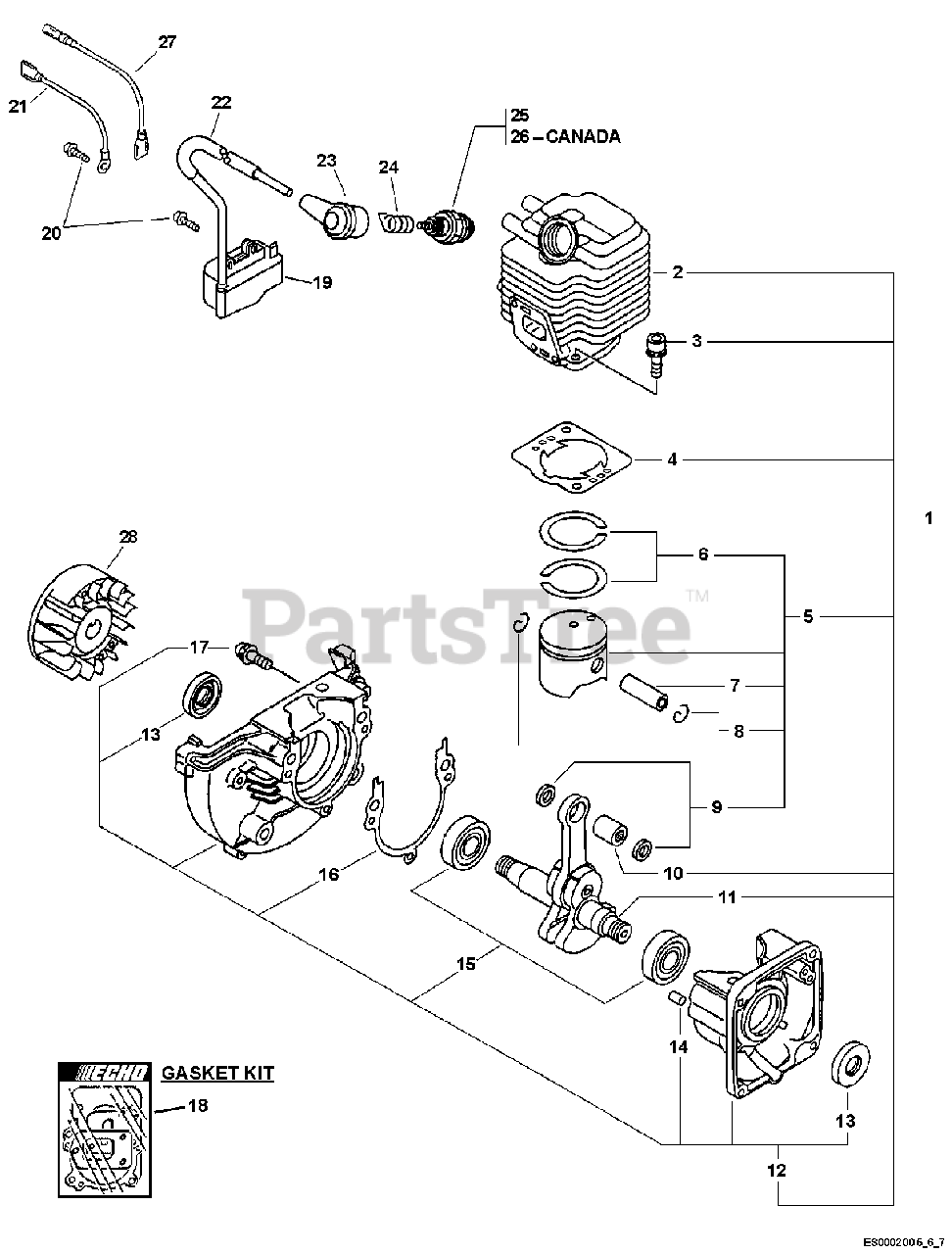

ES-211 - Echo Shred N Vac Blower (SN: 06001001 - 06999999) Engine, Short Block, Ignition Parts Diagram

Shred N Vac Blower

Engine, Short Block, Ignition Parts Diagram

  • Title

1

Echo SB1066

SHORT BLOCK -- SB1066
(Superseded to Discontinued)

Note: INCLUDES 2-17

$

$

Not available

2

Echo A130000420

CYLINDER

$93.99

$

Usually ships in 2-4 days

0

3

Echo 90016205022

SCREW - 5X22

$0.99

$

In Stock, Qty 20+

0

4

Echo V100000080

GASKET, CYLINDER

$5.99

$

In Stock, only 3 left!

0

5

Echo P021001101

PISTON KIT
(Superseded to P021001102)

Note: Includes ITEMS 6-9

$77.99

$

In Stock, Qty 6

0

6

Echo A101000000

RING, PISTON

$8.49

$

In Stock, Qty 20+

0

7

Echo 10001311520

PIN, PISTON

$7.49

$

In Stock, only 1 left!

0

8

Echo 10001504630

RING, RETAINING

$0.99

$

In Stock, Qty 20+

0

9

Echo 10001411520

SPACER, PISTON

$3.49

$

In Stock, only 2 left!

0

10

Echo V553000030

BEARING, NEEDLE

Note: Includes ITEM 10

$9.99

$

In Stock, only 2 left!

0

11

Echo A011000150

CRANKSHAFT ASSY
(Superseded to A011000151)

$150.99

$

Usually ships in 2-4 days

0

12

Echo 10020452132

CRANKCASE KIT
(Superseded to 10020452133)

$140.99

$

Usually ships in 2-4 days

0

13

Echo 10021242031

SEAL, OIL

$6.49

$

In Stock, Qty 20+

0

14

Echo V622000020

PIN - LOCATING

$0.99

$

In Stock, Qty 9

0

15

Echo 9403536201

BEARING, BALL - 6201

$7.99

$

In Stock, Qty 12

0

16

Echo 10024242030

GASKET, CRANKCASE

$1.49

$

In Stock, Qty 20+

0

17

Echo 90016205028

SCREW - 5X28

$1.99

$

In Stock, Qty 20+

0

18

Echo P021004650

GASKET KIT
(Superseded to P021004651)

$

$

Not available

19

Echo A411000130

COIL, IGNITION
(Superseded to A411000131)

$70.99

$

In Stock, Qty 20+

0

20

Echo 90016204020

SCREW - 4X20

$1.49

$

In Stock, Qty 20+

0

21

Echo 16202120660

LEAD - GROUND
(Superseded to Discontinued)

$

$

Not available

22

Echo V471000660

TUBE, INSULATOR

$0.99

$

In Stock, Qty 5

0

23

Echo 15901201620

CAP, SPARK PLUG

$1.49

$

In Stock, Qty 20+

0

24

Echo 15901103432

TERMINAL, SPARK PLUG CAP

$1.49

$

In Stock, Qty 20+

0

25

Echo 15901019830

SPARK PLUG -- BPM-8Y

$3.49

$

In Stock, Qty 20+

0

26

Echo A425000000

SPARK PLUG -- BPMR-8Y

Note: CANADA MODELS: 07001001-07999999

$3.49

$

In Stock, Qty 20+

0

27

Echo V485000040

LEAD - IGNITION

$9.99

$

Usually ships in 2-4 days

0

28

Echo A409000160

FLYWHEEL

$63.99

$

Usually ships in 2-4 days

0
