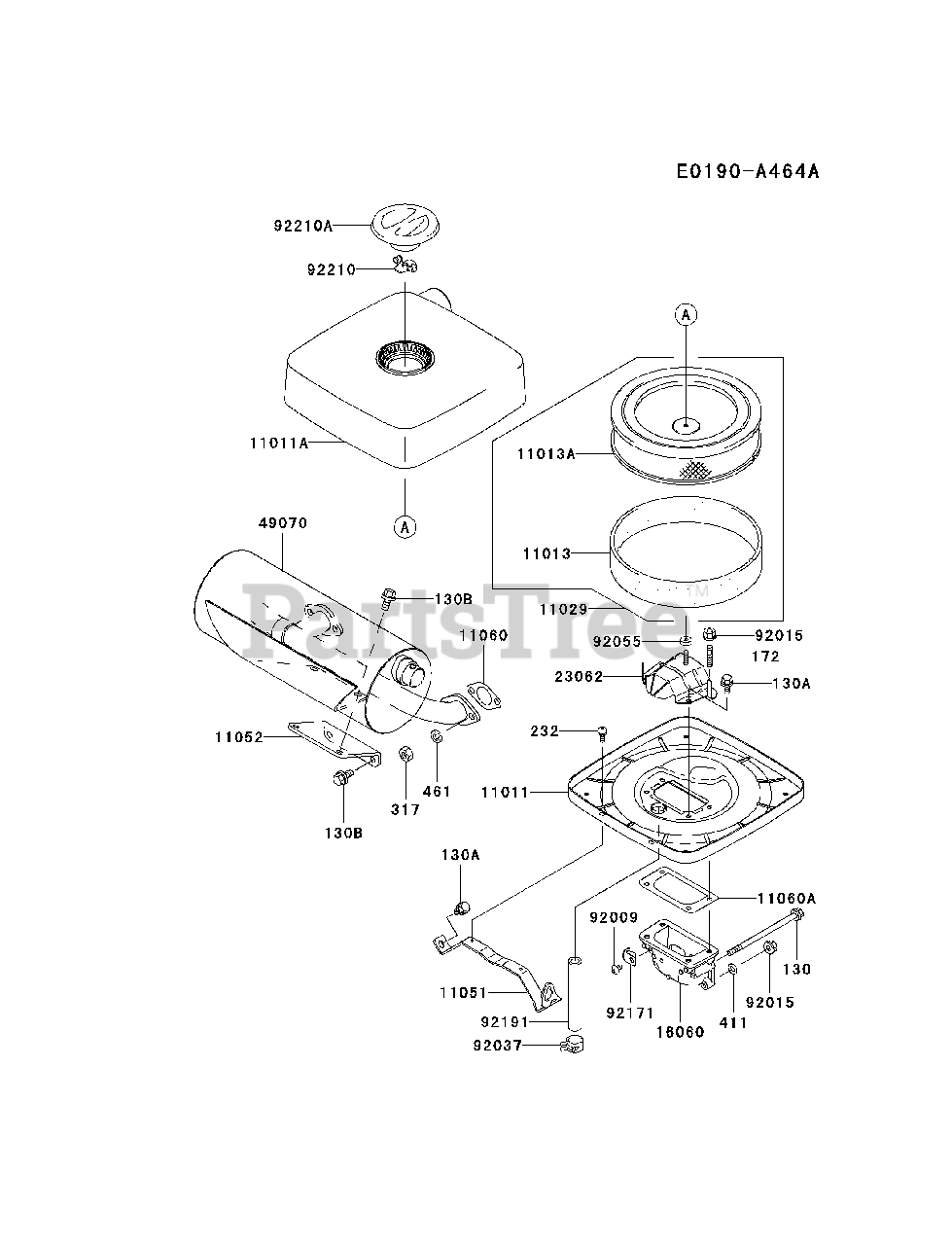

FH680D-AS01 - Kawasaki Engine AIR-FILTER/MUFFLER Parts Diagram

Engine

AIR-FILTER/MUFFLER Parts Diagram

  • Title

11011

Kawasaki 11011-7004

CASE-AIR FILTER

$23.99

$

Usually ships in 2-5 days

0

11011A

Kawasaki 11011-7005

CASE-AIR FILTER

$25.99

$

Usually ships in 2-5 days

0

11013

Kawasaki 11013-7007

ELEMENT-AIR FILTER
(Superseded to 11013-7023)

$14.99

$

In Stock, only 3 left!

0

11013A

Kawasaki 11013-7011

ELEMENT-AIR FILTER
(Superseded to 11013-7022)

$14.99

$

In Stock, only 1 left!

0

11029

Kawasaki 11029-7004

ELEMENT-ASSY-AIR FILTER
(Superseded to 11029-0022)

$48.99

$

Usually ships in 2-5 days

0

11051

Kawasaki 11051-7007

BRACKET

$7.49

$

Usually ships in 2-5 days

0

11052

Kawasaki 11052-7001

BRACKET

$12.99

$

Usually ships in 2-5 days

0

11060

Kawasaki 11060-7016

GASKET,MUFFLER

$2.49

$

In Stock, Qty 20+

0

11060A

Kawasaki 11060-7022

GASKET

$2.99

$

In Stock, only 3 left!

0

16060

Kawasaki 16060-7002

PIPE-INTAKE

$

$

Not available

23062

Kawasaki 23062-7006

BRACKET-COMP

$6.49

$

In Stock, only 4 left!

0

49070

Kawasaki 49070-7009

MUFFLER-COMP

$356.99

$

Usually ships in 2-5 days

0

92009

Kawasaki 92009-2166

SCREW,5X8

$0.99

$

Usually ships in 2-5 days

0

92210A

Kawasaki 92210-7010

NUT

$

$

Not available

130

Kawasaki 130B06105

BOLT-FLANGED
(Superseded to 130AA06105)

$2.49

$

In Stock, Qty 7

0

130A

Kawasaki 130B0612

BOLT-FLANGED
(Superseded to 130AA0612)

$0.99

$

In Stock, Qty 20+

0

130B

Kawasaki 130B0816

BOLT-FLANGED
(Superseded to 130AA0816)

$0.99

$

In Stock, Qty 9

0

172

Kawasaki 172G0612

BOLT-STUD
(Superseded to 172BA0612)

$0.99

$

Usually ships in 2-5 days

0

232

Kawasaki 232B0514

SCREW-PAN-WS+-
(Superseded to 232AA0514)

$0.99

$

In Stock, only 3 left!

0

317

Kawasaki 317R0800

NUT-HEX-SMALL
(Superseded to 92210-0887)

$2.99

$

In Stock, Qty 20+

0

411

Kawasaki 411B0600

WASHER-PLAIN
(Superseded to 411AA0600)

$4.49

$

In Stock, only 1 left!

0

461

Kawasaki 461F0800

WASHER-SPRING
(Superseded to 461DA0800)

$0.99

$

In Stock, Qty 20+

0

92015

Kawasaki 92015-1193

NUT
(Superseded to 92015-1367)

$4.49

$

In Stock, Qty 9

0

92037

Kawasaki 92037-2079

CLAMP
(Superseded to 92173-7003)

$2.49

$

In Stock, Qty 7

0

92055

Kawasaki 92055-7005

RING-O

$1.49

$

In Stock, only 1 left!

0

92171

Kawasaki 92171-7003

CLAMP

$0.99

$

Usually ships in 2-5 days

0

92191

Kawasaki 92191-7011

TUBE,12X18X115
(Superseded to 92191-7020)

$3.49

$

Usually ships in 2-5 days

0

92210

Kawasaki 92210-7004

NUT

$3.49

$

In Stock, Qty 7

0
