FS481V-AS13 - Kawasaki Engine AIR-FILTER/MUFFLER Parts Diagram

Engine

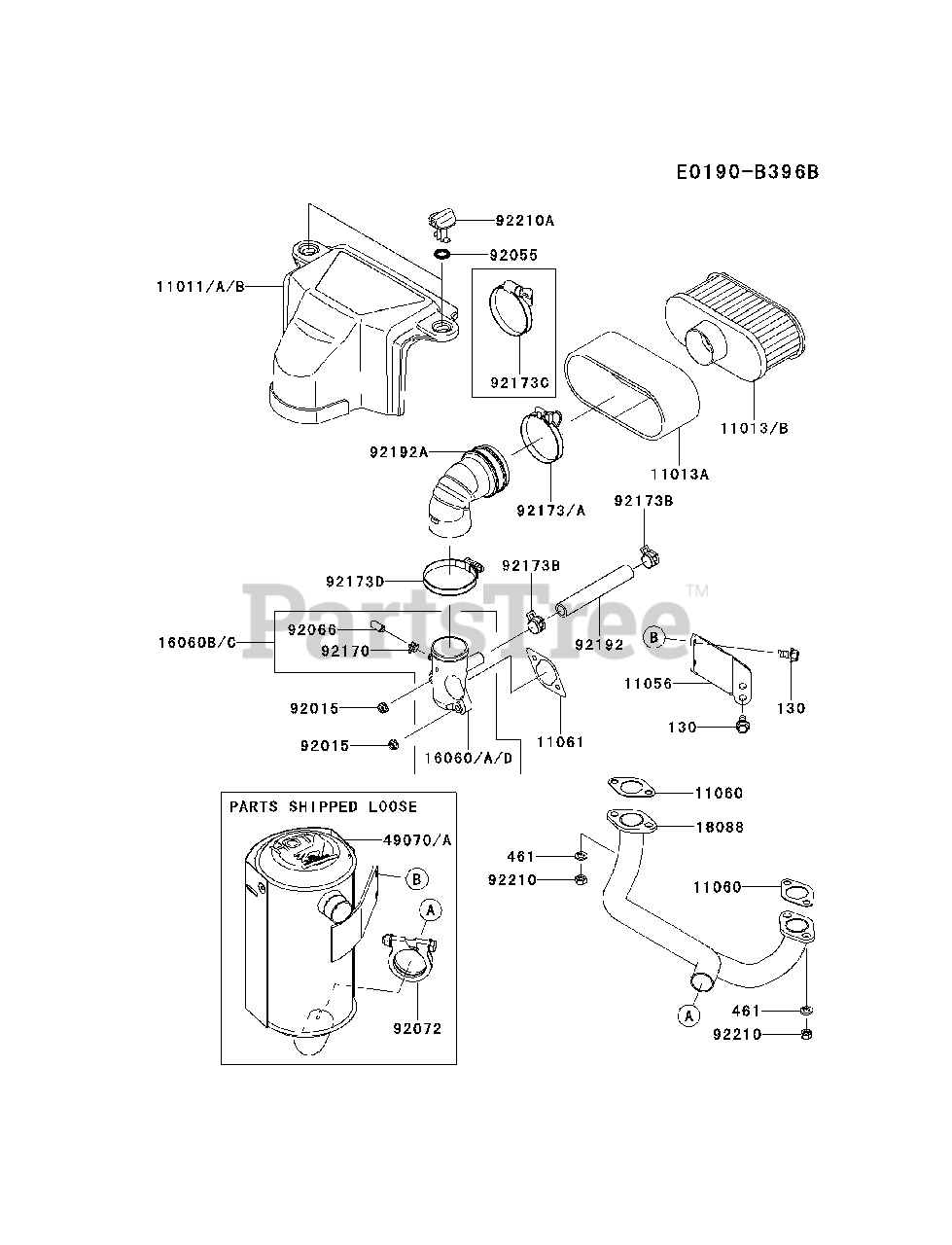

AIR-FILTER/MUFFLER Parts Diagram

  • Title

11011

Kawasaki 11011-7060

CASE-AIR FILTER
(Superseded to 11011-7064)

$33.99

$

In Stock, Qty 11

0

11013

Kawasaki 11013-0726

ELEMENT-AIR FILTER
(Superseded to 110130752)

$17.99

$

In Stock, Qty 20+

0

11013A

Kawasaki 11013-7046

ELEMENT-AIR FILTER
(Superseded to 11013-7041)

$5.99

$

In Stock, Qty 20+

0

11013B

Kawasaki 11013-7049

ELEMENT-AIR FILTER
(Superseded to 110130752)

$17.99

$

In Stock, Qty 20+

0

11056

Kawasaki 11056-7006-9H

BRACKET
(Superseded to 99999-0392)

$14.99

$

Usually ships in 2-5 days

0

11060

Kawasaki 11060-7016

GASKET,MUFFLER

$2.49

$

In Stock, Qty 20+

0

11061

Kawasaki 11061-7095

GASKET,AIR CLEANER

$4.49

$

In Stock, Qty 16

0

16060A

Kawasaki 16060-0740

PIPE-INTAKE

$12.99

$

In Stock, only 1 left!

0

16060C

Kawasaki 16060-0742

PIPE-INTAKE

$14.99

$

In Stock, only 1 left!

0

16060D

Kawasaki 16060-7039

PIPE-INTAKE
(Superseded to 160600742)

$14.99

$

In Stock, only 1 left!

0

18088

Kawasaki 18088-7009

PIPE-EXHAUST

$87.99

$

Usually ships in 2-5 days

0

49070

Kawasaki 49070-0038

MUFFLER-COMP
(Superseded to 49070-7032)

$223.99

$

Usually ships in 2-5 days

0

49070A

Kawasaki 49070-7032

MUFFLER-COMP
(Superseded to 49070-0038)

$223.99

$

Usually ships in 2-5 days

0

92015

Kawasaki 92015-1367

NUT

$4.49

$

In Stock, only 4 left!

0

92055

Kawasaki 92055-7025

RING-O

$1.49

$

In Stock, Qty 20+

0

92066

Kawasaki 92066-0095

PLUG

$5.49

$

In Stock, Qty 5

0

92072

Kawasaki 92072-7013

BAND

$8.99

$

In Stock, only 1 left!

0

92170

Kawasaki 92170-2042

CLAMP

$1.49

$

In Stock, only 3 left!

0

92173A

Kawasaki 92173-1001

CLAMP

$3.99

$

In Stock, only 1 left!

0

92173B

Kawasaki 92173-7003

CLAMP

$2.49

$

In Stock, Qty 7

0

92173C

Kawasaki 92173-7007

CLAMP
(Superseded to 92173-1001)

$3.99

$

In Stock, only 1 left!

0

92173D

Kawasaki 92173-7009

CLAMP

$8.49

$

In Stock, only 4 left!

0

92192

Kawasaki 92192-7146

TUBE,12.6X18.6X118

$1.99

$

In Stock, only 2 left!

0

92192A

Kawasaki 92192-7164

TUBE,A/C

$13.99

$

Usually ships in 2-5 days

0

92210

Kawasaki 92210-7027

NUT,M8

$1.99

$

In Stock, Qty 20+

0

92210A

Kawasaki 92210-7038

NUT
(Superseded to 92210-1730)

$1.49

$

In Stock, Qty 20+

0

130

Kawasaki 130AA0816

BOLT-FLANGED,8X16
(Superseded to 130B0816)

$0.99

$

In Stock, Qty 9

0

461

Kawasaki 461DA0800

WASHER-SPRING,8MM
(Superseded to 92200-0918)

$0.99

$

In Stock, Qty 20+

0
