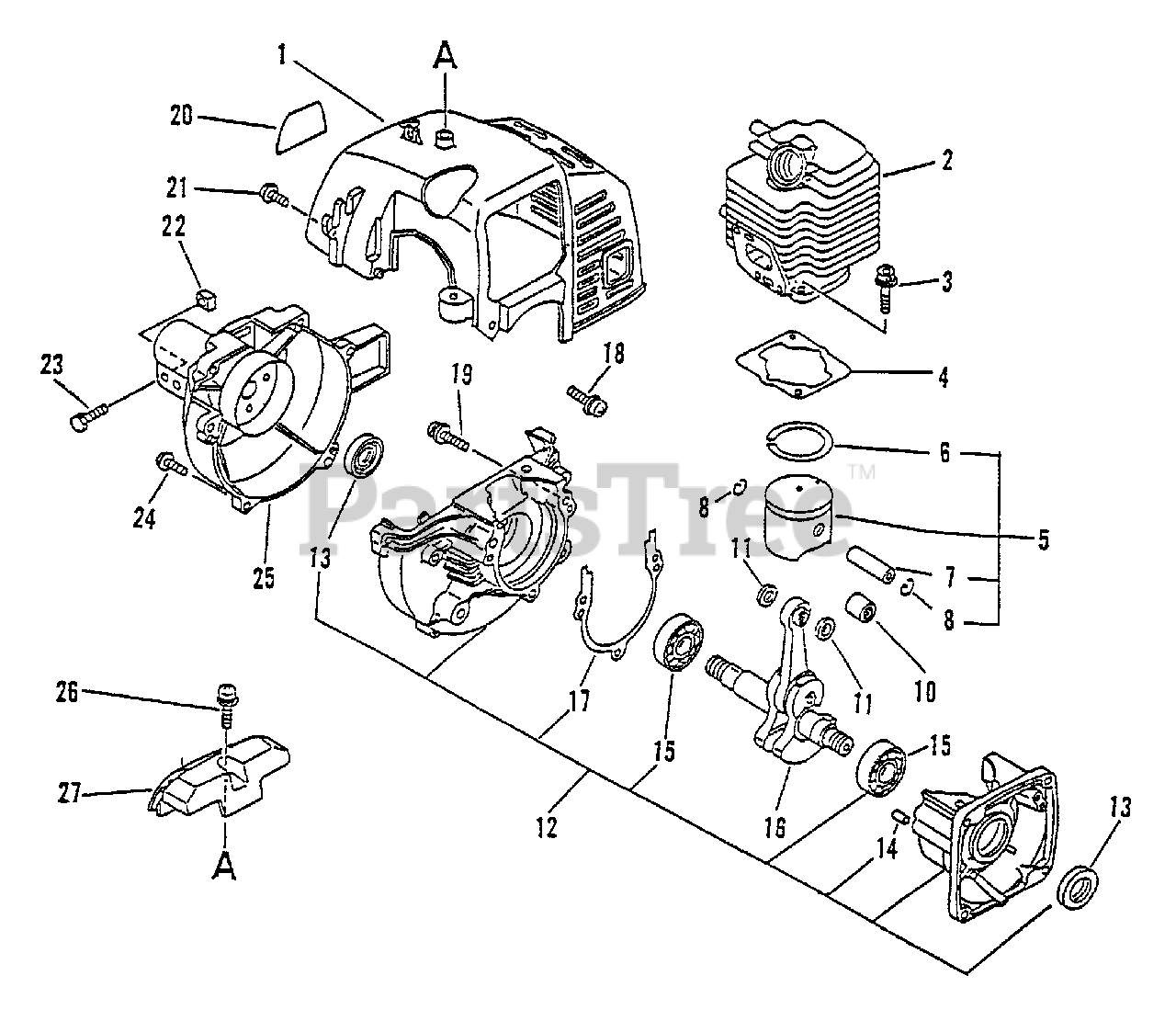

GT-1100 - Echo String Trimmer (SN: 181001 - 252599) Engine, Crankcase, Fan Housing, Cover Parts Diagram

String Trimmer

Engine, Crankcase, Fan Housing, Cover Parts Diagram

  • Title

1

Echo 10151448730

COVER, ENGINE - GRAY
(Superseded to 10151448731)

$19.99

$

Usually ships in 2-4 days

0

2

Echo 10101147630

CYLINDER
(Superseded to 10101148730)

$126.99

$

Usually ships in 2-4 days

0

3

Echo 90016205022

SCREW - 5X22

$0.99

$

In Stock, Qty 20+

0

4

Echo 10101044330

GASKET, CYLINDER
(Superseded to 10101044331)

Note: Use Kit 88900040631

$3.99

$

In Stock, Qty 20+

0

5

Echo 10000044330

PISTON KIT
(Superseded to 10000044331)

Note: Includes items 6, 7, & 8

$65.99

$

Usually ships in 2-4 days

0

6

Echo 10001105330

RING, PISTON

$8.49

$

In Stock, Qty 20+

0

7

Echo 10001311520

PIN, PISTON

$7.49

$

In Stock, only 1 left!

0

8

Echo 10001504630

RING, RETAINING

$0.99

$

In Stock, Qty 20+

0

10

Echo 10001251230

BEARING, NEEDLE
(Superseded to V553000010)

$9.99

$

In Stock, only 2 left!

0

11

Echo 10001411520

SPACER, PISTON

$3.49

$

In Stock, only 2 left!

0

12

Echo 10020442030

CRANKCASE KIT
(Superseded to 10020451030)

Note: Includes items 13, 14, 15 & 17

$131.99

$

Usually ships in 2-4 days

0

13

Echo 10021242031

SEAL, OIL

$6.49

$

In Stock, Qty 20+

0

14

Echo V622000020

PIN - LOCATING

$0.99

$

In Stock, Qty 9

0

15

Echo 9403536201

BEARING, BALL - 6201

$7.99

$

In Stock, Qty 12

0

16

Echo 10010044731

CRANKSHAFT ASSY
(Superseded to 10010044732)

$155.99

$

In Stock, only 1 left!

0

17

------------------

GASKET, CRANKCASE

Note: Use Kit 88900040631

$

$

Not available

18

Echo 90025304012

SCREW - 4X12 -- TAPPING

$1.49

$

In Stock, Qty 20+

0

19

Echo 90023805028

SCREW - 5X28

$0.99

$

Usually ships in 2-4 days

0

20

Echo 89011248730

LABEL - MODEL
(Superseded to Discontinued)

$

$

Not available

21

Echo 90023804016

SCREW - 4X16
(Superseded to Discontinued)

$

$

Not available

22

Echo 90056500005

NUT - 5 -- SQUARE
(Superseded to 90056550005)

$0.99

$

In Stock, Qty 20+

0

23

Echo 90014205028

BOLT - 5X28

$0.99

$

In Stock, Qty 20+

0

24

Echo 90023804018

SCREW - 4X18

$0.99

$

In Stock, Qty 13

0

25

Echo 10150348730

FAN CASE ASSY
(Superseded to 10150356630)

Note: (Includes Clutch Drum, Bearings & Circlip)

$

$

Not available

26

Echo 90025305016

SCREW - 5X16 -- TAPPING

$0.99

$

In Stock, Qty 20+

0

27

Echo 15991244530

GUARD, TOP - BLACK

$6.99

$

In Stock, only 1 left!

0

Echo SB1007

SHORT BLOCK -- SB1007
(Superseded to SB1026)

$

$

Not available

Echo 88900040631

GASKET KIT

Note: OPTIONAL

$11.99

$

Usually ships in 2-4 days

0

Echo 10101044330

GASKET, CYLINDER
(Superseded to 10101044331)

Note: OPTIONAL

$3.99

$

In Stock, Qty 20+

0

------------------

GASKET, CRANKCASE

Note: OPTIONAL

$

$

Not available

Echo 13001642031

GASKET, INTAKE

Note: OPTIONAL

$1.49

$

In Stock, Qty 20+

0

Echo V103000490

SHIELD, INTAKE
(Superseded to V103001360)

Note: OPTIONAL

$2.49

$

In Stock, Qty 20+

0

Echo 14586642031

GASKET, EXHAUST

Note: OPTIONAL

$2.49

$

In Stock, Qty 20+

0

Echo V104000160

GASKET, EXHAUST

Note: OPTIONAL

$0.99

$

In Stock, Qty 20+

0

Echo 21560040

GT ECHOMATIC HEAD
(Superseded to 99944200908)

Note: Accessory

$33.99

$

Usually ships in 2-4 days

0

Echo 99944200020

GT MANUAL HEAD

Note: Accessory

$

$

Currently unavailable

Echo 215111

MAXI-CUT

Note: Accessory

$

$

Currently unavailable

Echo 215111

MAXI-CUT

Note: Accessory

$

$

Currently unavailable
