GT-2101 - Echo String Trimmer Carburetor Parts Diagram

String Trimmer

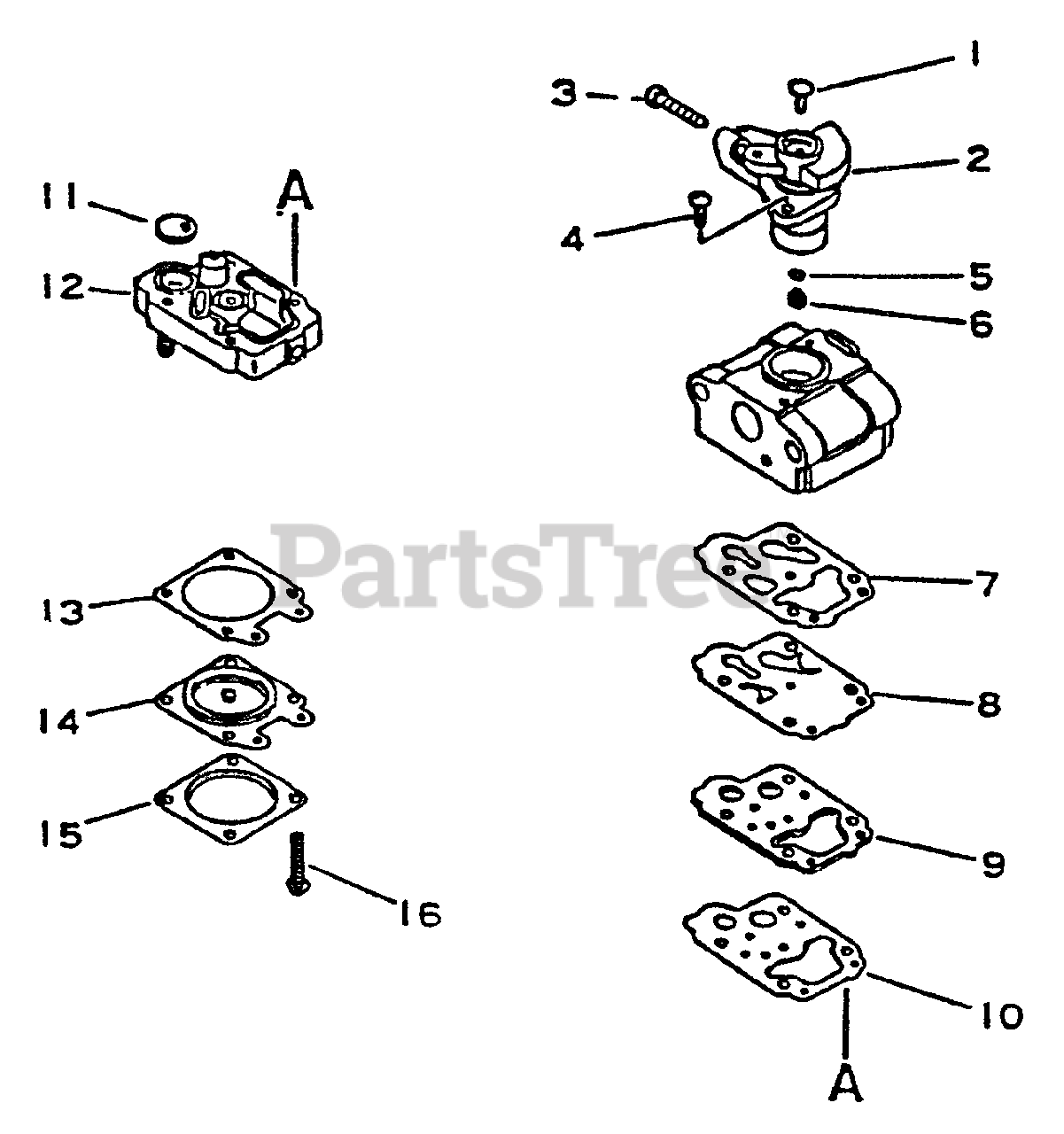

Carburetor Parts Diagram

  • Title

Echo 12300044430

CARBURETOR WYL-1
(Superseded to Discontinued)

$

$

Not available

1

Echo 12314644330

PLUG, WELCH

$0.99

$

In Stock, only 1 left!

0

2

Echo 12311644330

VALVE, THROTTLE

$19.99

$

Usually ships in 2-4 days

0

3

Echo 12313440030

SCREW, IDLE ADJUST

$1.49

$

Usually ships in 2-4 days

0

4

Echo 12311444330

SCREW

$0.99

$

Usually ships in 2-4 days

0

5

------------------

O-RING

Note: Included in Carburetor Repair Kit P/N 12310044430, and Carburetor Diaphragm/Gasket Kit P/N 12310144430

$

$

Not available

6

------------------

JET

Note: Included in Carburetor Repair Kit P/N 12310044430

$

$

Not available

7

------------------

GASKET, PURGE

Note: Included in Carburetor Repair Kit P/N 12310044430, and Carburetor Diaphragm/Gasket Kit P/N 12310144430

$

$

Not available

8

------------------

DIAPHRAGM, PURGE

Note: Included in Carburetor Repair Kit P/N 12310044430, and Carburetor Diaphragm/Gasket Kit P/N 12310144430

$

$

Not available

9

Echo 12316040630

PLATE, PUMP

$3.99

$

Usually ships in 2-4 days

0

10

------------------

GASKET, PLATE

Note: Included in Carburetor Repair Kit P/N 12310044430, and Carburetor Diaphragm/Gasket Kit P/N 12310144430

$

$

Not available

11

------------------

STRAINER

Note: Included in Carburetor Repair Kit P/N 12310044430

$

$

Not available

12

------------------

BASE, PURGE

Note: Included in Carburetor Repair Kit P/N 12310044430

$

$

Not available

13

------------------

GASKET, METERING

Note: Included in Carburetor Repair Kit P/N 12310044430, and Carburetor Diaphragm/Gasket Kit P/N 12310144430

$

$

Not available

14

------------------

DIAPHRAGM, METERING

Note: Included in Carburetor Repair Kit P/N 12310044430, and Carburetor Diaphragm/Gasket Kit P/N 12310144430

$

$

Not available

15

Echo 12314203930

COVER, METERING

$3.99

$

Usually ships in 2-4 days

0

16

Echo 12314444330

SCREW

$1.99

$

Usually ships in 2-4 days

0

Echo 13001044430

GASKET, INTAKE
(Superseded to 13001044431)

Note: Included in Carburetor Repair Kit P/N 12310044430, and Carburetor Diaphragm/Gasket Kit P/N 12310144430

$2.49

$

In Stock, Qty 13

0

Echo 90072000015

O-RING - 15

Note: Included in Carburetor Repair Kit P/N 12310044430, and Carburetor Diaphragm/Gasket Kit P/N 12310144430

$1.99

$

In Stock, Qty 20+

0

Echo 12310144430

DIAPHRAGM/GASKET KIT

$11.99

$

Usually ships in 2-4 days

0

Echo 12310044430

REPAIR KIT

$27.99

$

Usually ships in 2-4 days

0
