GT-2103 - Echo String Trimmer (SN: 001001 - 031001) Intake, Exhaust, Air Cleaner Parts Diagram

String Trimmer

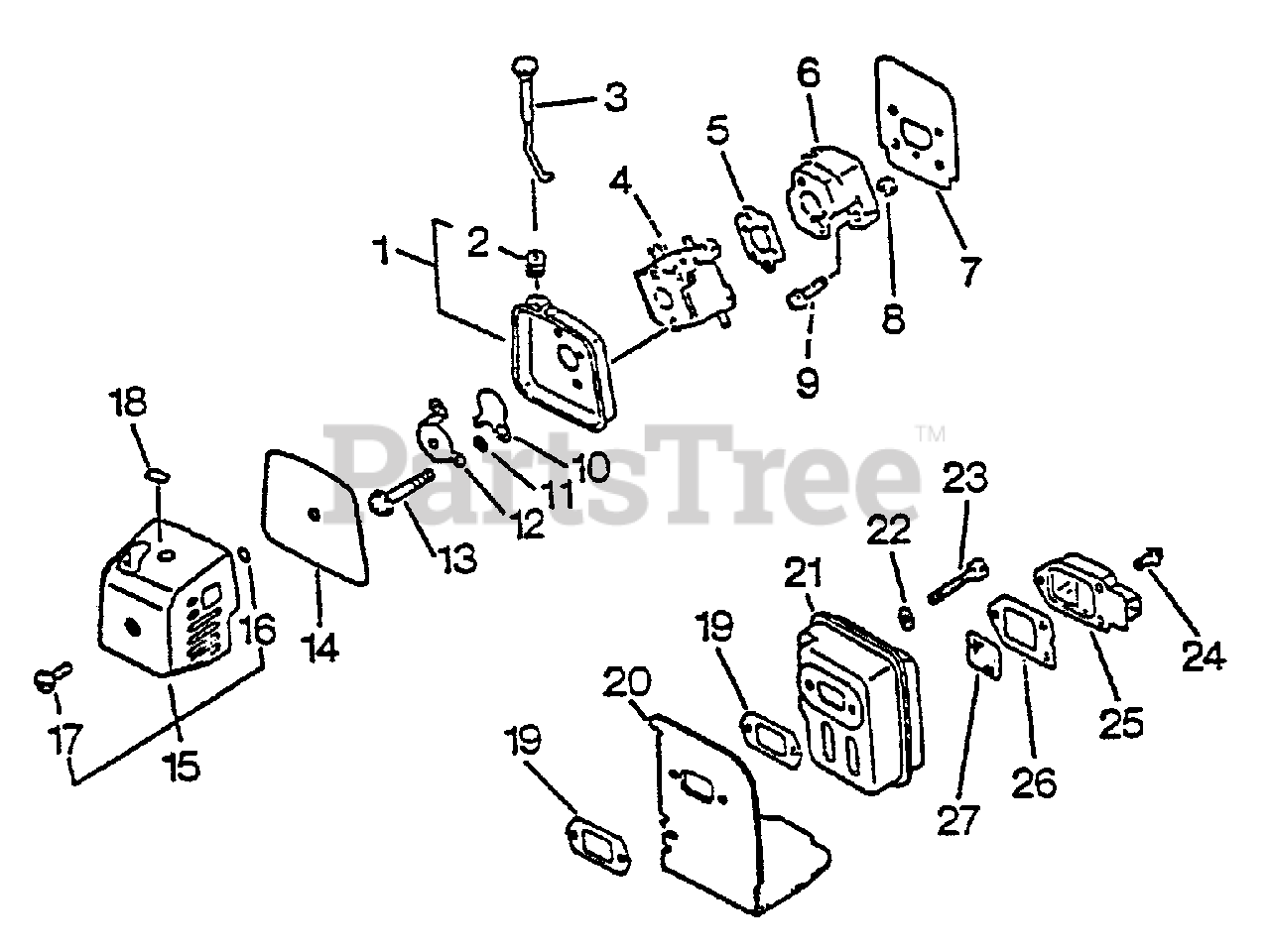

Intake, Exhaust, Air Cleaner Parts Diagram

  • Title

1

Echo 13030104560

CASE, AIR FILTER

Note: Includes ITEM 2

$8.49

$

Usually ships in 2-4 days

0

2

Echo 17881005230

GROMMET

$1.99

$

In Stock, Qty 16

0

3

Echo 17851048830

ROD, CHOKE

$7.49

$

In Stock, only 1 left!

0

4

Echo 12520047630

CARBURETOR C1U-K12
(Superseded to Discontinued)

$

$

Not available

5

Echo 13001642031

GASKET, INTAKE

$1.49

$

In Stock, Qty 20+

0

6

Echo 13001742031

INSULATOR, INTAKE

$9.49

$

In Stock, Qty 16

0

7

Echo V103000490

SHIELD, INTAKE
(Superseded to V103001360)

$2.49

$

In Stock, Qty 20+

0

8

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

9

Echo 90023805020

SCREW - 5X20

$0.99

$

In Stock, Qty 20+

0

10

Echo 17851504560

SHUTTER, CHOKE

$2.49

$

In Stock, only 1 left!

0

11

Echo 17851600830

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

12

Echo 13041044730

BRACKET, AIR CLEANER

$9.99

$

In Stock, only 1 left!

0

13

Echo 90024205057

SCREW - 5X57

$0.99

$

In Stock, Qty 8

0

14

Echo 13031004560

FILTER, AIR

$4.99

$

In Stock, Qty 20+

0

15

Echo 13030248830

AIR FILTER COVER ASSY
(Superseded to Discontinued)

Note: Includes ITEMS 16-17

$

$

Not available

16

Echo 90072000004

O-RING - 4

$1.99

$

In Stock, Qty 14

0

17

Echo 13041540630

SCREW

$2.99

$

In Stock, only 4 left!

0

18

Echo X506000070

LABEL - CHOKE

$0.99

$

In Stock, Qty 9

0

19

Echo V104000160

GASKET, EXHAUST

$0.99

$

In Stock, Qty 20+

0

20

Echo 14587144330

COVER, EXHAUST
(Superseded to 14587144331)

$4.99

$

In Stock, Qty 20+

0

21

Echo 14580047630

MUFFLER ASSY
(Superseded to 14580042031)

Note: Includes Items 19,20 & 22-27

$46.99

$

In Stock, Qty 5

0

22

Echo 90060000005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

23

Echo 90010505055

SCREW - 5X55

$1.49

$

In Stock, Qty 20+

0

24

Echo 90024204010

SCREW - 4X10

$0.99

$

In Stock, Qty 20+

0

25

Echo 14580942030

GUIDE, EXHAUST - OUTER

$7.49

$

Usually ships in 2-4 days

0

26

Echo 14586642031

GASKET, EXHAUST

$2.49

$

In Stock, Qty 20+

0

27

Echo 14586240630

SCREEN, SPARK ARRESTOR

$1.99

$

In Stock, Qty 20+

0
