GT-225 - Echo String Trimmer (SN: S09313001001 - S09313999999) Intake Parts Diagram

String Trimmer

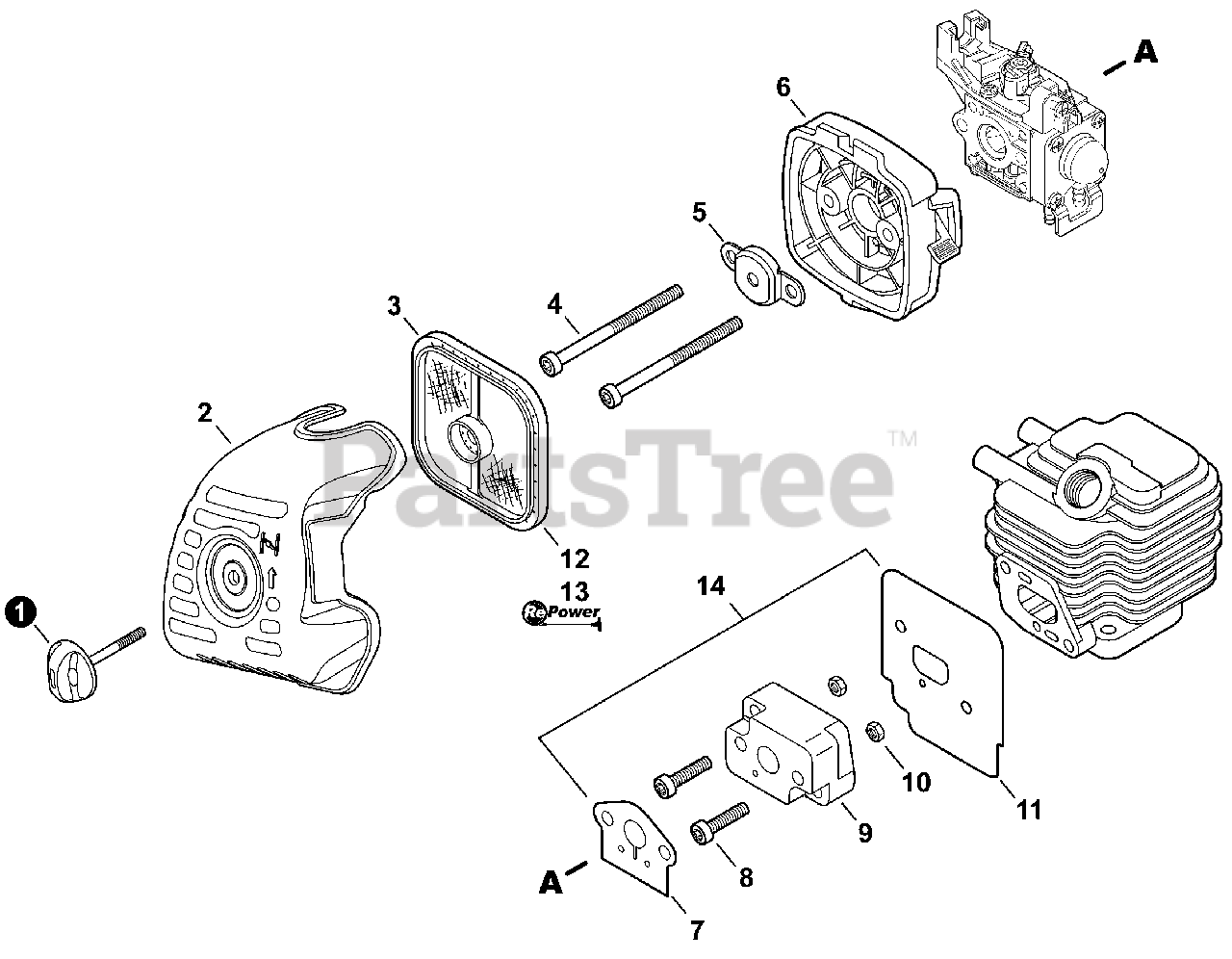

Intake Parts Diagram

  • Title

1

Echo V299000250

THUMBSCREW

$3.99

$

In Stock, Qty 20+

0

2

Echo A232001850

COVER, AIR FILTER

$5.49

$

In Stock, Qty 20+

0

3

Echo A226001410

FILTER, AIR - DOUBLE LAYER

$7.49

$

In Stock, Qty 20+

0

4

Echo V805000100

SCREW - 5×65 -- TORX

$1.99

$

In Stock, Qty 20+

0

5

Echo 12901152730

PLATE, PREVENT

$3.99

$

In Stock, Qty 20+

0

6

Echo P021012870

CASE, AIR FILTER

$11.99

$

In Stock, Qty 20+

0

7

Echo V103001500

GASKET, INTAKE

$0.99

$

In Stock, Qty 20+

0

8

Echo V805000160

SCREW - 5×20

$0.99

$

In Stock, Qty 20+

0

9

Echo 13001744331

INSULATOR, INTAKE

$9.99

$

In Stock, Qty 20+

0

10

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

11

Echo V103001360

SHIELD, INTAKE

$2.49

$

In Stock, Qty 20+

0

12

Echo 90152

TUNE-UP KIT - REPOWER
(Superseded to 90152Y)

$20.99

$

In Stock, Qty 20+

0

13

Echo 90008

FILTER KIT - REPOWER
(Superseded to 90152)

$20.99

$

In Stock, Qty 20+

0

14

Echo P021015981

GASKET KIT

$22.99

$

In Stock, Qty 10

0
