GTH 2648 (960430030-00) - Husqvarna 48" Garden Tractor (2006-12) Electrical Parts Diagram

48" Garden Tractor

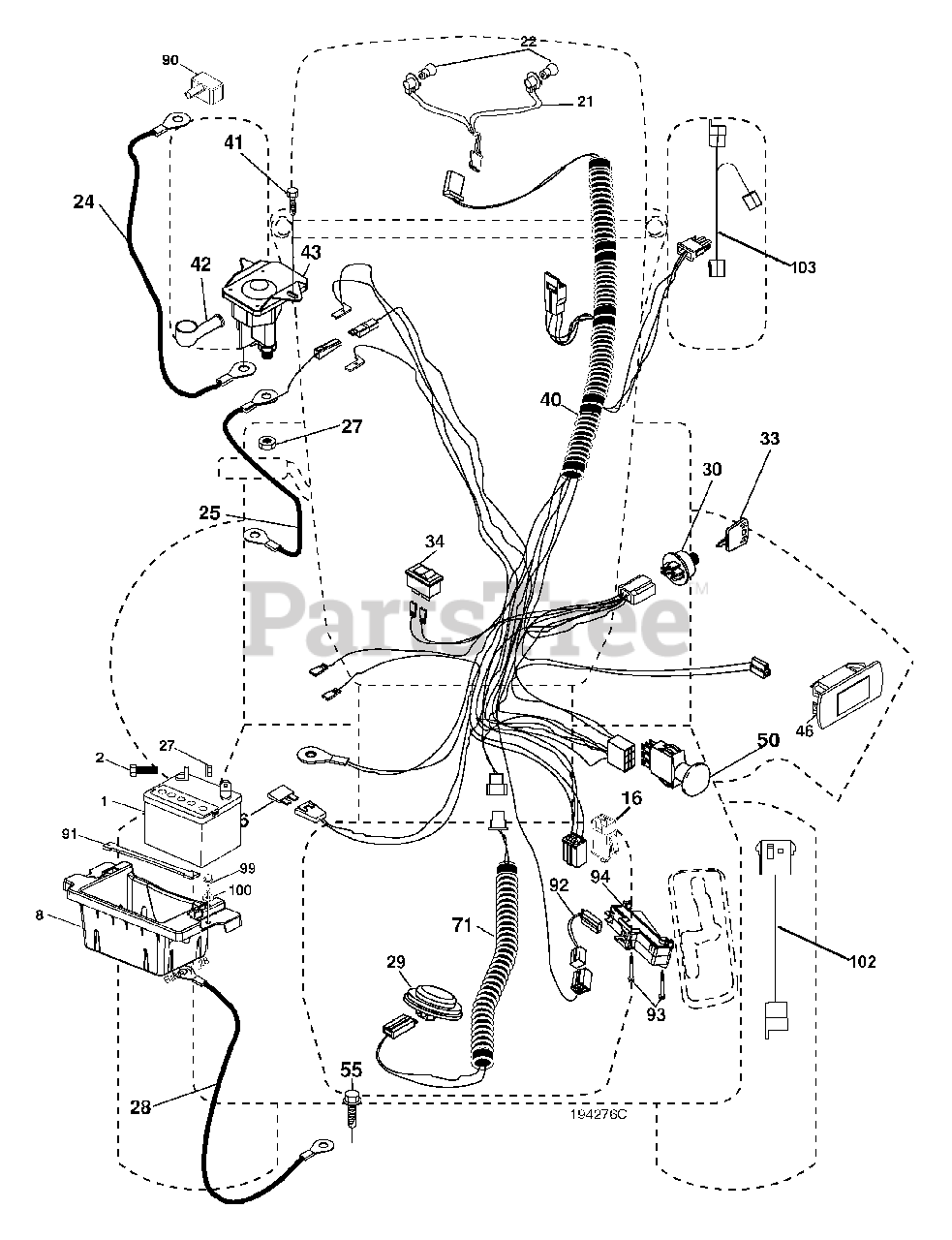

Electrical Parts Diagram

  • Title

1

Husqvarna 532144927

Battery
(Superseded to 532125603)

$194.99

$

Usually ships in 3-10 days

0

2

Husqvarna 874760412

Bolt Hex Hd 1/4-20 unc x 3/4

$7.49

$

In Stock, Qty 5

0

8

Husqvarna 532186491

Battery Box

$

$

Not available

16

Husqvarna 532176138

Switch Interlock

$15.99

$

In Stock, Qty 6

0

21

Husqvarna 532183759

Harness Socket Light

$47.99

$

In Stock, only 3 left!

0

22

Husqvarna 532004152

Bulb, Light # 1156

$4.99

$

In Stock, Qty 20+

0

24

Husqvarna 532400253

Cable Battery
(Superseded to 585555601)

$8.99

$

In Stock, Qty 14

0

25

Husqvarna 532198893

Cable Starter

$15.99

$

Usually ships in 3-10 days

0

26

Husqvarna 532175158

Fuse

$7.49

$

In Stock, Qty 13

0

27

Husqvarna 873510400

Nut Keps Hex 1/4-20 unc
(Superseded to 873680400)

$3.99

$

In Stock, Qty 20+

0

28

Husqvarna 532145491

Cable Ground 21 Blk 6 Ga.

$10.99

$

In Stock, only 1 left!

0

29

Husqvarna 532401545

Switch Seat

$39.99

$

In Stock, Qty 20+

0

30

Husqvarna 532193350

Switch Ign

$13.99

$

In Stock, Qty 20+

0

33

Husqvarna 532140401

Key Ign Molded Generic

$6.49

$

In Stock, Qty 20+

0

34

Husqvarna 532110712

Switch Light/Reset

$8.99

$

In Stock, Qty 12

0

40

Husqvarna 532401104

Harness Ign. Dash

$120.99

$

In Stock, only 4 left!

0

41

Husqvarna 817720408

Screw Thd Cut 1/4-20 x 1/2
(Superseded to 874780408)

$3.99

$

Usually ships in 3-10 days

0

42

Husqvarna 532131563

Cover Terminal Red
(Superseded to 532154336)

$8.99

$

Usually ships in 3-10 days

0

43

Husqvarna 532192507

Solenoid
(Superseded to 582042802)

$13.99

$

In Stock, Qty 20+

0

46

Husqvarna 532401763

Gauge Hourmeter
(Superseded to 594919101)

$24.99

$

In Stock, Qty 20+

0

50

Husqvarna 532174651

Switch PTO
(Superseded to 582107601)

$13.99

$

In Stock, Qty 20+

0

55

Husqvarna 817490512

Screw Thdrol 5/16-18 x 3/4
(Superseded to 874780512)

$3.99

$

In Stock, Qty 20+

0

59

Husqvarna 532400303

Outlet 12-Volt

$27.99

$

Usually ships in 3-10 days

0

71

Husqvarna 532194276

Harness Chassis

$40.99

$

In Stock, only 3 left!

0

90

Husqvarna 532400724

Cover Terminal Battery

$4.99

$

Usually ships in 3-10 days

0

91

Husqvarna 532190270

Strap Battery

$9.99

$

In Stock, Qty 19

0

92

Husqvarna 532196615

Harness Pigtail Console ROS

$18.99

$

In Stock, only 1 left!

0

93

Husqvarna 532192540

Screw Plastite 10-14 x 2.0

$4.99

$

Usually ships in 3-10 days

0

94

Husqvarna 532191834

Module Reverse ROS

$37.99

$

In Stock, only 2 left!

0

99

Husqvarna 817670412

Screw Hexwsh Thdrol 1/4-20 x 3/4

$6.49

$

In Stock, only 2 left!

0

100

Husqvarna 819091416

Washer 9/32 x 7/8 x 16 Ga.

$6.49

$

Usually ships in 3-10 days

0

102

Husqvarna 532198317

Pigtail MATNLK Harness

$9.99

$

Usually ships in 3-10 days

0

103

Husqvarna 532407962

Harness Pigtail 12v Outlet

$15.99

$

In Stock, only 1 left!

0
