HCS 13 F (965869401) - Husqvarna Collection System (2008-07) Drive Kit Assembly Parts Diagram

Collection System

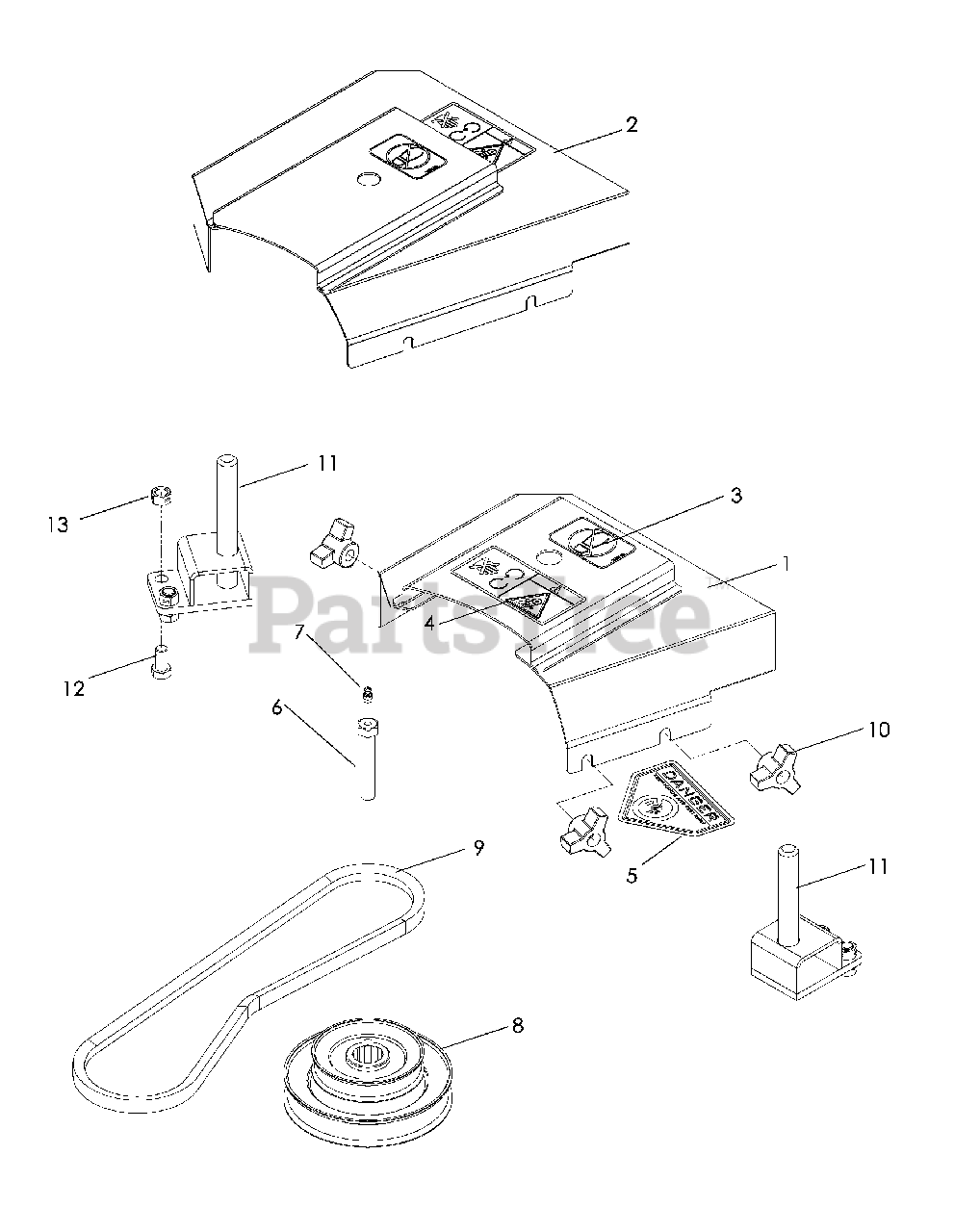

Drive Kit Assembly Parts Diagram

  • Title

1

Husqvarna 539111268

SHIELD W/DECALS 52"

$121.99

$

Usually ships in 3-10 days

0

2

Husqvarna 539111269

SHIELD W/DECALS 61"

$133.99

$

Usually ships in 3-10 days

0

3

Husqvarna 539105743

DECAL, NO STEP
(Superseded to 581724301)

$4.99

$

In Stock, only 3 left!

0

4

Husqvarna 539105744

DECAL, BELT DRIVE

$6.49

$

In Stock, only 4 left!

0

5

Husqvarna 539913010

DECAL, CPSC

$4.99

$

In Stock, only 1 left!

0

6

Husqvarna 539112138

HCS 7/16-20 x 2½ SPECIAL

$40.99

$

In Stock, only 1 left!

0

7

Husqvarna 539976998

ZERK
(Superseded to 596899901)

$2.49

$

In Stock, Qty 20+

0

8

Husqvarna 539108947

PULLEY, DBL STACKED 52"

$84.99

$

Usually ships in 3-10 days

0

9

Husqvarna 539108948

PULLEY, DBL STACKED 61"

$

$

Not available

10

Husqvarna 539106725

BELT 52"

$30.99

$

In Stock, only 1 left!

0

11

Husqvarna 539106726

BELT 61"

$34.99

$

Usually ships in 3-10 days

0

12

Husqvarna 539102070

KNOB, THREE PRONG

$7.49

$

In Stock, Qty 13

0

13

Husqvarna 539108944

BLOWER PIN, SM

$27.99

$

Usually ships in 3-10 days

0

14

Husqvarna 539990134

HCS 3/8-16 x ¾

$3.99

$

Usually ships in 3-10 days

0

15

Husqvarna 539990546

NUT 3/8 -16 CENTERLOCK

$

$

Not available

Husqvarna 539111296

DRIVE KIT 52"

Note: Not Shown

$420.99

$

Usually ships in 3-10 days

0

Husqvarna 539111297

DRIVE KIT 61"

Note: Not Shown

$420.99

$

Usually ships in 3-10 days

0
