HUV 4210 EXP - Husqvarna 4x2 Utility Vehicle, Electric (2006-11) Battery Charger (Model 22110), Domestic Parts Diagram

4x2 Utility Vehicle, Electric

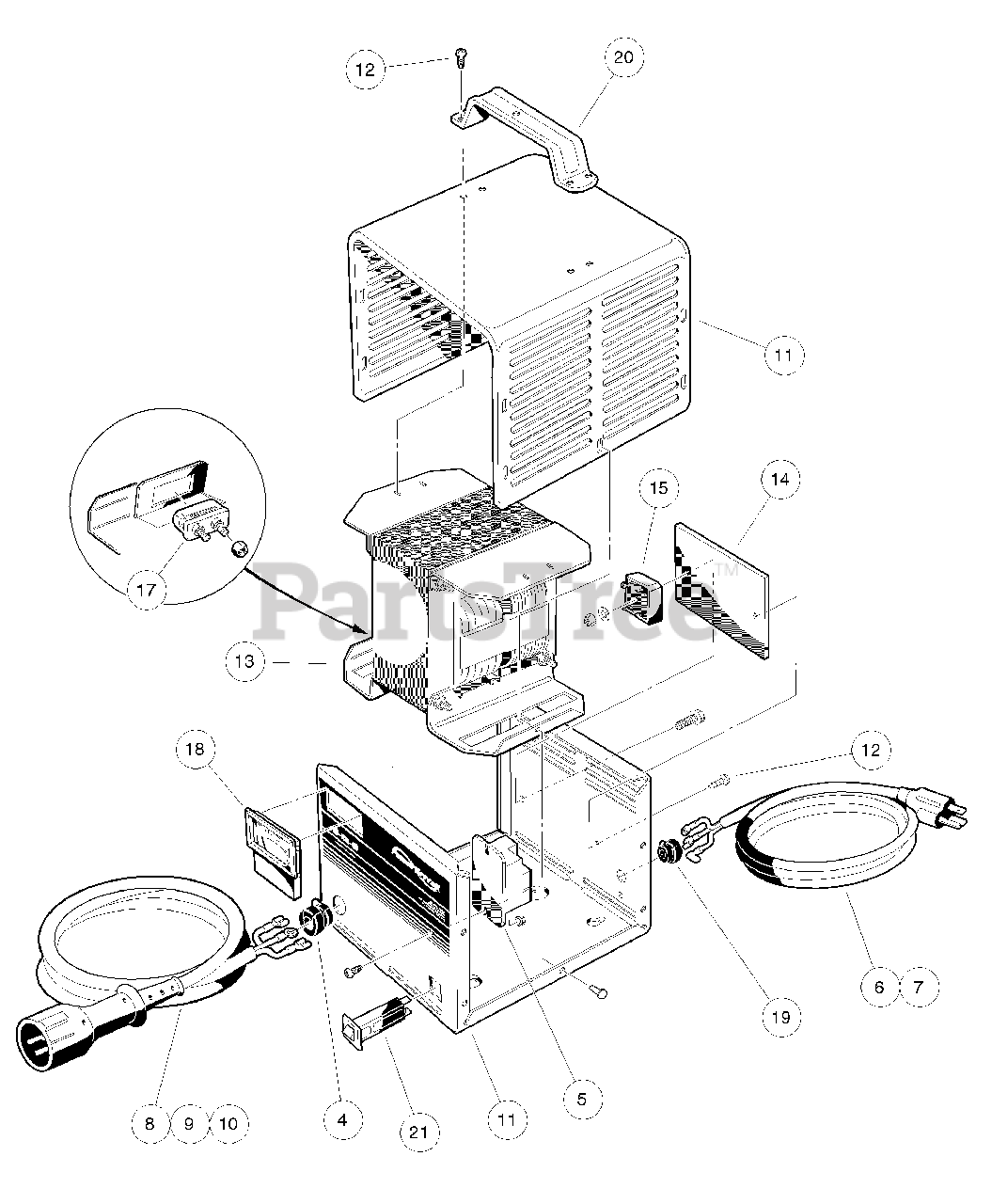

Battery Charger (Model 22110), Domestic Parts Diagram

  • Title

1

48-V/13-A PowerDrive 2

Note: (9-ft. DC, 6-ft. AC)

$

$

Not available

2

48-V/13-A PowerDrive 2

Note: (12-ft. DC, 9-ft. AC)

$

$

Not available

3

48-V/13-A PowerDrive 2

Note: (20-ft. DC, 9-ft. AC) (includes items 4 through 21)

$

$

Not available

4

Husqvarna 603003650

Bushing, DC Cord

$

$

Not available

5

Husqvarna 603003666

Relay, 48-Volt

$

$

Not available

6

Husqvarna 603003667

Cord, AC, 80-Inch (203 cm)

$

$

Not available

7

Husqvarna 603003668

Cord, AC, 108-Inch (274 cm)

$

$

Not available

8

Husqvarna 603003669

PD2 DC Cordset, 113-inch

$

$

Not available

9

Husqvarna 603003670

PD2 DC Cordset, 154-inch

$

$

Not available

10

Husqvarna 603003671

Pd2 Dc Cordset 250 Inch

$

$

Not available

11

Husqvarna 603003746

PD2 Case

Note: (includes item 12)

$

$

Not available

12

Husqvarna 603003649

Screw, #10 X 0.50 Phillips Pan-Head

$

$

Not available

13

Husqvarna 603003747

PD2 Transformer Asm

$

$

Not available

14

Husqvarna 603003748

PD2 Heatsink

$

$

Not available

15

Husqvarna 603003749

PD2 Diode Bridge w/Film
(Superseded to 603004397)

$

$

Not available

16

Husqvarna 603003750

PD2 Wire Asm

Note: Item 16 not shown. Level 1 Battery Charger part numbers include one AC and one DC cord. They do not include all of the level 2 cords listed.

$

$

Not available

17

Husqvarna 603003751

PD2 Fuse Asm

$

$

Not available

18

Husqvarna 603003752

PD2 Ammeter

$

$

Not available

19

Husqvarna 603003753

PD2 AC Cord Bushing

$

$

Not available

20

Husqvarna 603003754

PD2 Handle

$

$

Not available

21

Husqvarna 603002503

Circuit Breaker, 15-Amp/120-Volt

$

$

Not available
