HUV 4210 EXP - Husqvarna 4x2 Utility Vehicle, Electric (2006-11) Steering Gear Assembly Parts Diagram

4x2 Utility Vehicle, Electric

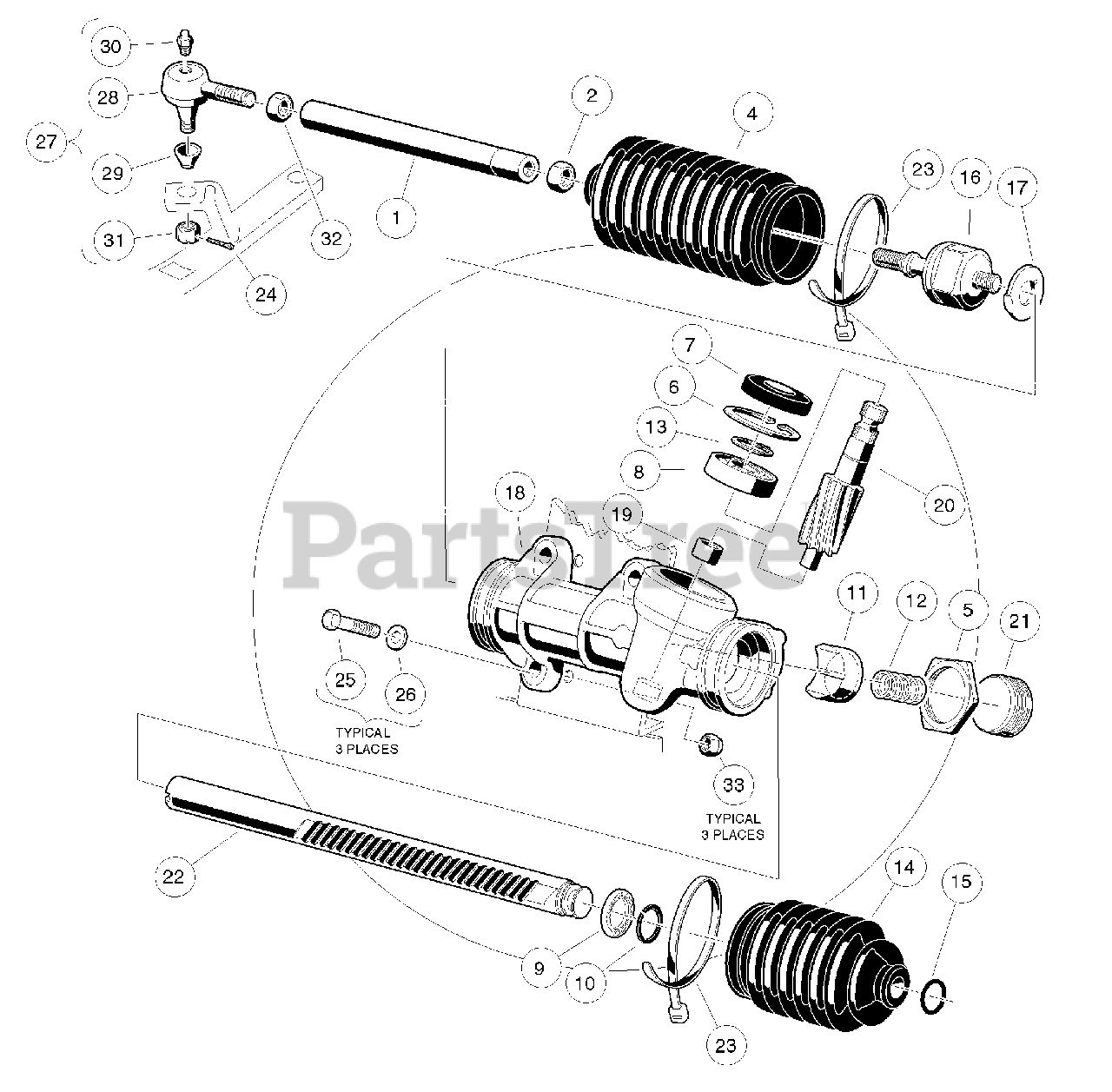

Steering Gear Assembly Parts Diagram

  • Title

1

Husqvarna 603003054

Link, Rack and Pinion Drag

$

$

Not available

2

Husqvarna 603000167

Nut, 12mm Hex

$

$

Not available

3

Husqvarna 603003201

Steering Gear Assembly

Note: (without yoke) (includes items 4 through 23)

$

$

Not available

4

Husqvarna 603000166

Bellows, Long

$

$

Not available

5

Husqvarna 603000168

Rack Screw Locknut

$

$

Not available

6

Husqvarna 603000169

Snap Ring

$

$

Not available

7

Husqvarna 603000170

Seal, Steering Pinion Dust

$

$

Not available

8

Husqvarna 603000549

Bearing, Ball

$

$

Not available

9

Husqvarna 603003202

Stop Washer

$

$

Not available

10

Husqvarna 603003203

Stop Ring, C-Type

$

$

Not available

11

Husqvarna 603000550

Support Yoke

$

$

Not available

12

Husqvarna 603000551

Rack Guide Pressure Spring

$

$

Not available

13

Husqvarna 603000552

Ring, Stop, C-Type

$

$

Not available

14

Husqvarna 603003204

Bellows, Short

$

$

Not available

15

Husqvarna 603003205

Dust Seal Retaining Ring

$

$

Not available

16

Husqvarna 603000553

Inner Ball Joint Asm

$

$

Not available

17

Husqvarna 603003206

Washer, Tab

$

$

Not available

18

Box, Steering Gear

$

$

Not available

19

Bearing, Lower Pinion

$

$

Not available

20

Pinion, Steering

$

$

Not available

21

Screw, Rack Guide

$

$

Not available

22

Rack, Steering

$

$

Not available

23

Husqvarna 603002963

Tie Wrap, 8" Nylon

$

$

Not available

24

Husqvarna 603000063

Pin, 3/32 X 1.00 Sq Cut Cotter

$

$

Not available

25

Husqvarna 603000068

Screw, 3/8-16 X 1.50 Hex-Head Cap

$

$

Not available

26

Husqvarna 603000055

Washer, 3/8 Type A Flat

$

$

Not available

27

Husqvarna 603002040

Ball Joint, Left

Note: (includes items 28 through 31)

$

$

Not available

28

Socket, LH Vertical

$

$

Not available

29

Husqvarna 603003047

Seal, Vertical Socket Dust

$

$

Not available

30

Husqvarna 603000264

Fitting, 1/4-28 Thread-Forming Grease

$4.99

$

In Stock, only 1 left!

0

31

Husqvarna 603003309

Nut, 3/8-24 UNF Hex

$

$

Not available

32

Husqvarna 603003308

Nut, 1/2-20 Hex, Left-Hand Thread

$

$

Not available

33

Husqvarna 603000095

Locknut, 3/8-16 Hex

$

$

Not available
