LBB-4000 - Lesco Backpack Blower Carburetor Parts Diagram

Backpack Blower

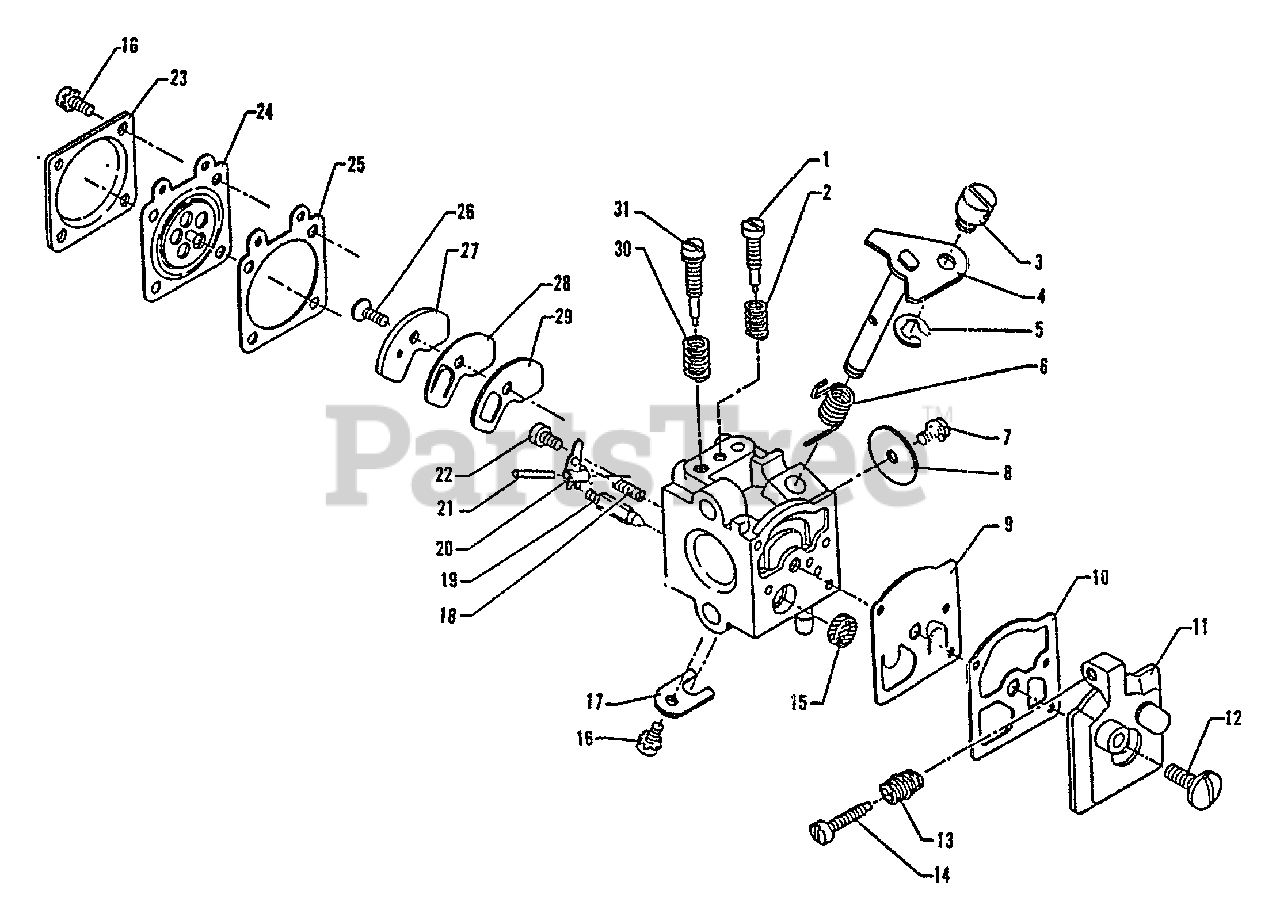

Carburetor Parts Diagram

  • Title

Echo 12300000760

CARBURETOR WA-55
(Superseded to 12300000761)

$91.99

$

In Stock, only 3 left!

0

1

Echo 12311804420

NEEDLE - LOW SPEED

$4.49

$

In Stock, only 1 left!

0

2

------------------

SPRING, NEEDLE RETURN

Note: Use Repair Kit, P/N 12310004930

$

$

Not available

3

Echo 12317204320

SWIVEL

$1.99

$

Usually ships in 2-4 days

0

4

Echo 12311705020

SHAFT, THROTTLE

$5.49

$

Usually ships in 2-4 days

0

5

Echo 12312710630

RING, RETAINING
(Superseded to Discontinued)

$

$

Not available

6

Echo 12311303930

SPRING, THROTTLE RETURN
(Superseded to 12311309660)

$1.49

$

In Stock, Qty 14

0

7

Echo 12311403930

SCREW

$1.49

$

In Stock, Qty 17

0

8

Echo 12311603930

VALVE, THROTTLE

$1.99

$

In Stock, only 4 left!

0

9

------------------

DIAPHRAGM, PUMP

Note: Use Gasket/Diaphragm Kit, P/N 12310103930 & Repair Kit, P/N 12310004930

$

$

Not available

10

------------------

GASKET, PUMP

Note: Use Gasket/Diaphragm Kit, P/N 12310103930 & Repair Kit, P/N 12310004930

$

$

Not available

11

Echo 12312400760

COVER, PUMP

$8.99

$

Usually ships in 2-4 days

0

12

Echo 12311003930

SCREW, PUMP COVER

$0.99

$

In Stock, only 2 left!

0

13

Echo 12313311130

SPRING, IDLE ADJUST
(Superseded to Discontinued)

$

$

Not available

14

Echo 12313419730

SCREW, IDLE ADJUST

$2.49

$

In Stock, Qty 5

0

15

------------------

STRAINER

Note: Use Repair Kit, P/N 12310004930

$

$

Not available

16

------------------

SCREW

Note: Use Repair Kit, P/N 12310004930

$

$

Not available

17

Echo 12312703930

CLIP, THROTTLE SHAFT

$1.49

$

Usually ships in 2-4 days

0

18

------------------

SPRING, METERING LEVER

Note: Use Repair Kit, P/N 12310004930

$

$

Not available

19

------------------

VALVE, INLET NEEDLE

Note: Use Repair Kit, P/N 12310004930

$

$

Not available

20

------------------

LEVER, METERING

Note: Use Repair Kit, P/N 12310004930

$

$

Not available

21

------------------

PIN, METERING LEVER

Note: Use Repair Kit, P/N 12310004930

$

$

Not available

22

------------------

SCREW, METERING LEVER PIN

Note: Use Repair Kit, P/N 12310004930

$

$

Not available

23

Echo 12314203930

COVER, METERING

$3.99

$

Usually ships in 2-4 days

0

24

------------------

DIAPHRAGM, METERING

Note: Use Gasket/Diaphragm Kit, P/N 12310103930 & Repair Kit, P/N 12310004930

$

$

Not available

25

------------------

GASKET, METERING

Note: Use Gasket/Diaphragm Kit, P/N 12310103930 & Repair Kit, P/N 12310004930

$

$

Not available

26

------------------

SCREW

Note: Use Repair Kit, P/N 12310004930

$

$

Not available

27

Echo 12316603930

PLATE, CIRCUIT
(Superseded to Discontinued)

$

$

Not available

28

------------------

DIAPHRAGM, CIRCUIT PLATE

Note: Use Gasket/Diaphragm Kit, P/N 12310103930 & Repair Kit, P/N 12310004930

$

$

Not available

29

------------------

GASKET, CIRCUIT PLATE

Note: Use Gasket/Diaphragm Kit, P/N 12310103930 & Repair Kit, P/N 12310004930

$

$

Not available

30

------------------

SPRING

Note: Use Repair Kit, P/N 12310004930

$

$

Not available

31

Echo 12312000760

NEEDLE - HIGH SPEED

$4.49

$

In Stock, only 1 left!

0

Echo 12310103930

DIAPHRAGM/GASKET KIT

$7.49

$

In Stock, Qty 8

0

Echo 12310004930

REPAIR KIT

$17.99

$

In Stock, Qty 15

0
