LHD-1700 - Lesco Hedge Trimmer (SN: 001001 - 002837) Carburetor Parts Diagram

Hedge Trimmer

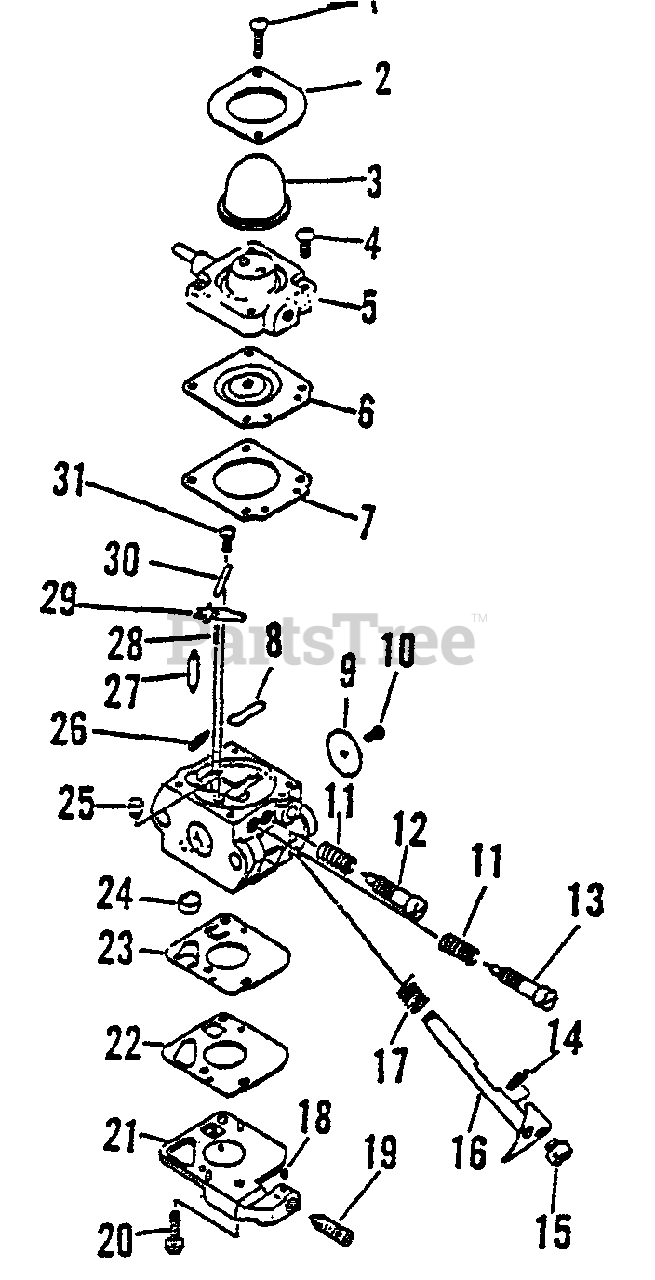

Carburetor Parts Diagram

  • Title

Echo 12520005360

CARBURETOR C1U-K17
(Superseded to 12520005361)

$92.99

$

In Stock, only 4 left!

0

1

Echo P005000980

SCREW, RETAINER

$0.99

$

In Stock, Qty 20+

0

2

Echo 12536311610

RETAINER, PURGE BULB

$2.49

$

In Stock, Qty 19

0

3

Echo 12538108660

BULB, PURGE
(Superseded to P005003120)

$6.99

$

In Stock, Qty 20+

0

4

Echo 12531005360

SCREW, PURGE BASE

$0.99

$

In Stock, Qty 8

0

5

Echo 12538305360

BASE, PURGE

$21.99

$

Usually ships in 2-4 days

0

6

------------------

DIAPHRAGM

Note: Included in Diaphragm/Gasket Kit P/N 12530305360, & Repair Kit P/N 12530205360.

$

$

Not available

7

------------------

GASKET, METERING

Note: Included in Diaphragm/Gasket Kit P/N 12530305360, & Repair Kit P/N 12530205360.

$

$

Not available

8

------------------

PLUG, WELCH

Note: Included in Repair Kit P/N 12530205360.

$

$

Not available

9

Echo 12531642030

VALVE, THROTTLE

$2.49

$

In Stock, only 2 left!

0

10

Echo 12531413930

SCREW

$1.49

$

Usually ships in 2-4 days

0

11

Echo 12531942030

SPRING

$1.49

$

In Stock, only 1 left!

0

12

Echo 12531842030

NEEDLE - LOW SPEED
(Superseded to 12531851330)

$

$

Not available

13

Echo 12532042030

NEEDLE - HIGH SPEED

$4.49

$

Usually ships in 2-4 days

0

14

Echo 12532713930

RING, RETAINING

$0.99

$

Usually ships in 2-4 days

0

15

Echo 12537242030

SWIVEL

$4.49

$

Usually ships in 2-4 days

0

16

Echo 12531742030

SHAFT, THROTTLE

$5.99

$

Usually ships in 2-4 days

0

17

Echo 12531342030

SPRING, RETURN

$1.49

$

In Stock, Qty 12

0

18

Echo 12537813930

PIECE, FRICTION

$1.99

$

Usually ships in 2-4 days

0

19

Echo 12533413930

SCREW, IDLE ADJUST

$1.49

$

In Stock, only 4 left!

0

20

Echo 12531042030

SCREW, PUMP COVER

$0.99

$

Usually ships in 2-4 days

0

21

Echo 12532442030

BASE, PURGE

$7.99

$

Usually ships in 2-4 days

0

22

------------------

GASKET, PURGE

Note: Included in Diaphragm/Gasket Kit P/N 12530305360, & Repair Kit P/N 12530205360.

$

$

Not available

23

------------------

DIAPHRAGM, PURGE

Note: Included in Diaphragm/Gasket Kit P/N 12530305360, & Repair Kit P/N 12530205360.

$

$

Not available

24

Echo 12532642030

STRAINER

$3.49

$

Usually ships in 2-4 days

0

25

------------------

NOZZLE, CHECK VALVE

Note: Included in Repair Kit P/N 12530205360.

$

$

Not available

26

Echo 12532715130

RING, RETAINING

$0.99

$

Usually ships in 2-4 days

0

27

------------------

VALVE, NEEDLE

Note: Included in Repair Kit P/N 12530205360.

$

$

Not available

28

------------------

SPRING

Note: Included in Repair Kit P/N 12530205360.

$

$

Not available

29

------------------

LEVER, METERING

Note: Included in Repair Kit P/N 12530205360.

$

$

Not available

30

------------------

PIN

Note: Included in Repair Kit P/N 12530205360.

$

$

Not available

31

Echo 12533942030

SCREW, METERING LEVER PIN

$0.99

$

In Stock, Qty 12

0

Echo 12530305360

DIAPHRAGM/GASKET KIT
(Superseded to 12530306560)

$9.49

$

In Stock, only 1 left!

0

Echo 12530205360

REPAIR KIT
(Superseded to 12530005360)

$18.99

$

Usually ships in 2-4 days

0
