LHE-2475 - Lesco Edger (SN: 001001 - 002703) Intake, Exhaust, Air Cleaner Parts Diagram

Edger

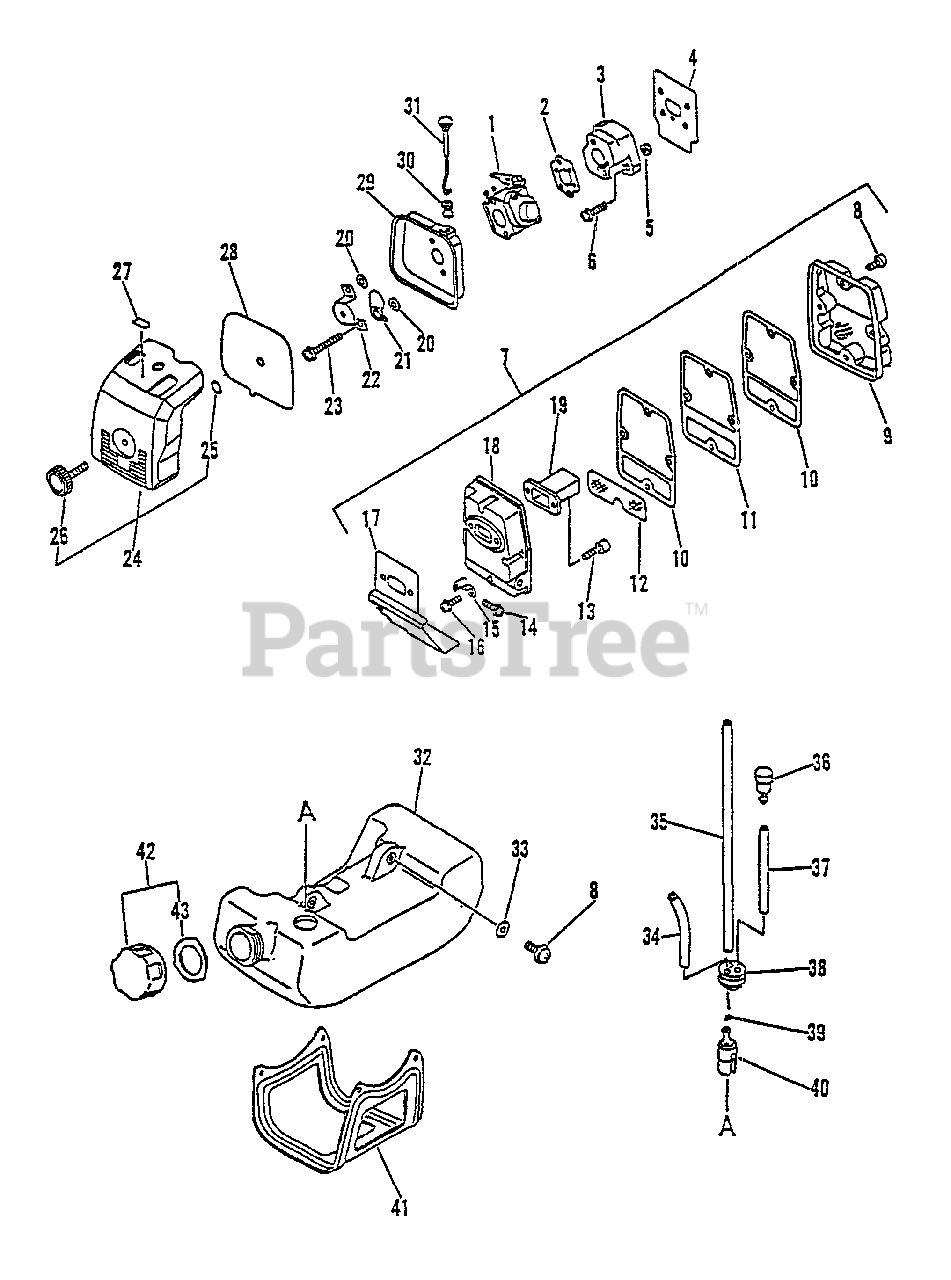

Intake, Exhaust, Air Cleaner Parts Diagram

  • Title

1

Echo 12520052131

CARBURETOR C1U-K23A
(Superseded to 12520013313)

$78.99

$

In Stock, Qty 20+

0

2

Echo 13001642031

GASKET, INTAKE

$1.49

$

In Stock, Qty 20+

0

3

Echo 13001742031

INSULATOR, INTAKE

$9.49

$

In Stock, Qty 16

0

4

Echo V103000490

SHIELD, INTAKE
(Superseded to V103001360)

$2.49

$

In Stock, Qty 20+

0

5

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

6

Echo 90023805020

SCREW - 5X20

$0.99

$

In Stock, Qty 20+

0

7

Echo 14580052130

MUFFLER ASSY
(Superseded to Discontinued)

Note: INCLUDES ITEMS 8 - 13, 15 - 19

$

$

Not available

8

Echo 90023805016

SCREW - 5X16

$0.99

$

In Stock, Qty 20+

0

9

Echo 14586151030

LID, MUFFLER
(Superseded to Discontinued)

$

$

Not available

10

Echo 14586651030

GASKET, EXHAUST

$5.49

$

In Stock, only 2 left!

0

11

Echo 14588052130

GASKET, EXHAUST
(Superseded to Discontinued)

$

$

Not available

12

Echo 14586251030

SCREEN, SPARK ARRESTOR
(Superseded to Discontinued)

$

$

Not available

13

Echo 90010505018

SCREW - 5X18

$1.49

$

In Stock, only 1 left!

0

14

Echo 90023805014

SCREW - 5X14

$0.99

$

In Stock, Qty 15

0

15

Echo 14571151030

BRACKET, MUFFLER

$7.49

$

Usually ships in 2-4 days

0

16

Echo 90023805010

SCREW - 5X10

$0.99

$

In Stock, Qty 20+

0

17

Echo 14551051030

GASKET, EXHAUST

$3.99

$

Usually ships in 2-4 days

0

18

Echo 14581052130

MUFFLER

$86.99

$

Usually ships in 2-4 days

0

19

Echo 14585952130

BAFFLE, MUFFLER

$10.99

$

Usually ships in 2-4 days

0

20

Echo 17851600830

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

21

Echo 17851505060

SHUTTER, CHOKE

$2.99

$

In Stock, Qty 5

0

22

Echo 12901151730

PLATE, PREVENT
(Superseded to Discontinued)

$

$

Not available

23

Echo 90024205057

SCREW - 5X57

$0.99

$

In Stock, Qty 8

0

24

Echo 13030248930

AIR FILTER COVER ASSY
(Superseded to 13000151730)

Note: INCLUDES ITEMS 25-26

$

$

Not available

25

Echo 90072000003

O-RING - 3

$1.49

$

In Stock, Qty 14

0

26

Echo 13040616331

THUMBSCREW

$5.49

$

In Stock, only 1 left!

0

27

Echo 89012151730

LABEL - CHOKE
(Superseded to 89012152130)

$

$

Not available

28

Echo 13031052130

FILTER, AIR

$14.99

$

In Stock, Qty 9

0

29

Echo 13031448930

CASE, AIR FILTER

$10.99

$

Usually ships in 2-4 days

0

30

Echo 17881005230

GROMMET

$1.99

$

In Stock, Qty 16

0

31

Echo 17851052330

ROD, CHOKE

$4.49

$

Usually ships in 2-4 days

0

32

Echo 13100544330

TANK, FUEL
(Superseded to 13100544331)

$20.99

$

In Stock, Qty 16

0

33

Echo 90060300005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

34

Echo 13201056330

PIPE - 3X6X90 -- CLEAR

Note: RePower BULK OPTION: 90017

$2.99

$

In Stock, Qty 20+

0

35

Echo V471001190

PIPE - 3X5X180 -- BLACK
(Superseded to V471001191)

Note: RePower BULK OPTION: 90014

$1.49

$

In Stock, Qty 17

0

36

Echo 13130040630

VENT, FUEL TANK
(Superseded to 13130056430)

$7.49

$

In Stock, Qty 20+

0

37

Echo V471001200

PIPE - 3X5X70 -- BLACK
(Superseded to V471001201)

Note: RePower BULK OPTION: 90014

$1.99

$

In Stock, Qty 20+

0

38

Echo V137000030

GROMMET
(Superseded to 13211546730)

$1.99

$

In Stock, Qty 20+

0

39

Echo 13201309820

CLIP - 6

$0.99

$

In Stock, Qty 20+

0

40

Echo 13120507320

FILTER, FUEL
(Superseded to 13120507321)

$5.49

$

In Stock, Qty 20+

0

41

Echo 30511042030

GUARD, FUEL TANK
(Superseded to Discontinued)

$

$

Not available

42

Echo 13100440930

CAP ASSY
(Superseded to 13100441030)

Note: Includes ITEM 43

$7.49

$

In Stock, Qty 12

0

43

Echo 13101640930

GASKET, CAP

$2.99

$

In Stock, Qty 20+

0
