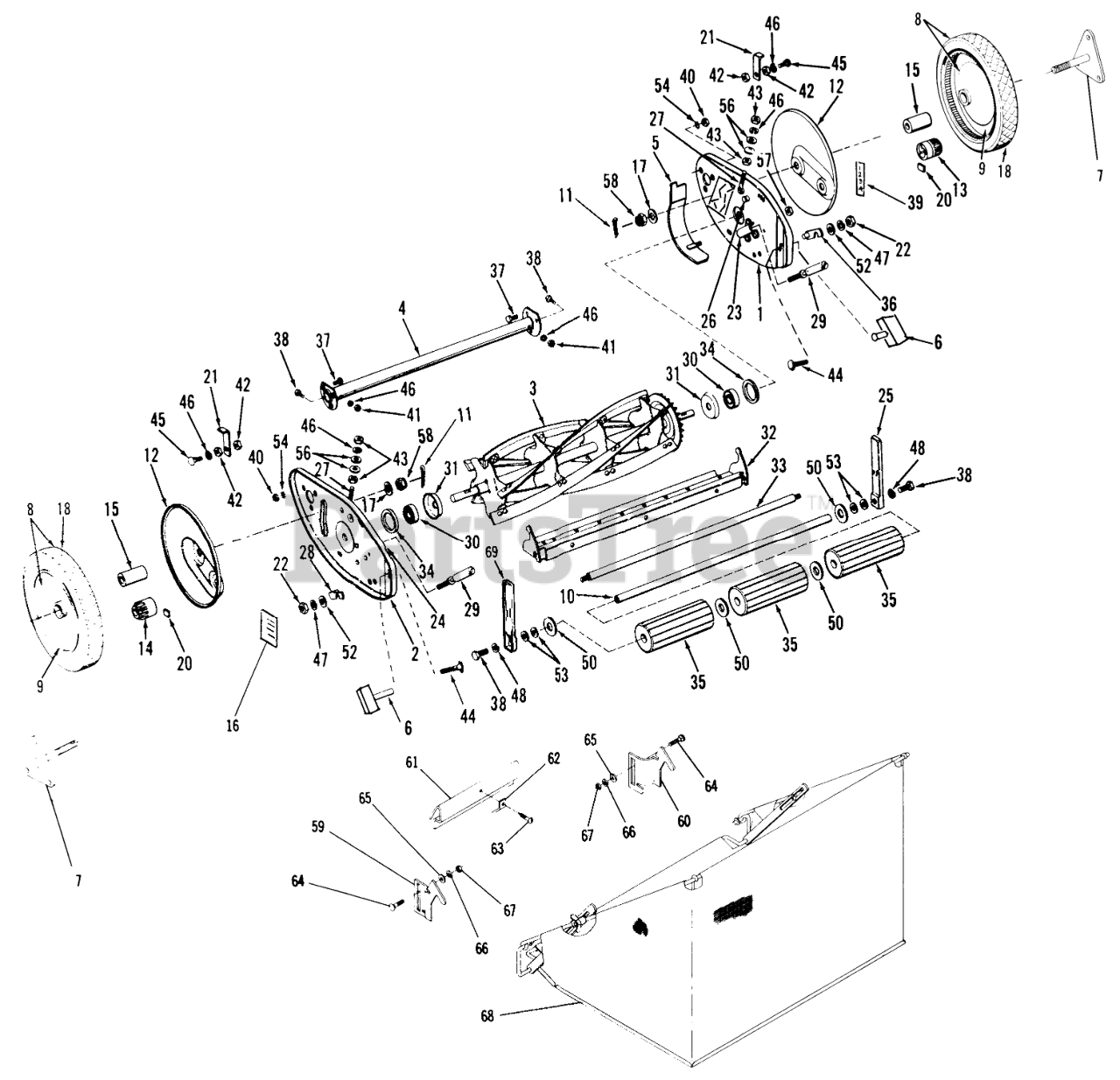

LL-217 - Toro Royale IV Walk-Behind Mower (1967) LOWER UNIT Parts Diagram

Royale IV Walk-Behind Mower

LOWER UNIT Parts Diagram

  • Title

1

Toro 7300

Frame, R.H. Side

$

$

Currently unavailable

2

Toro 7301

Frame, L.H. Side

$

$

Currently unavailable

3

Toro 7302

Reel Assembly, 5 Blade, w/Sprocket

$

$

Currently unavailable

4

Toro 7303

Tube, Front Cross

$

$

Currently unavailable

5

Toro 7333

Guard, Reel Sprocket

$

$

Currently unavailable

6

Toro 7312

Knob, Roller Adj.

$

$

Currently unavailable

7

Toro 7253

Knock-Off Spinner Ass-y.

$

$

Currently unavailable

8

Toro 7304

Wheel w/Tire

$

$

Currently unavailable

9

Toro 7305

Wheel w/O Tire

$

$

Currently unavailable

10

Toro 7306

Shaft, Rear Roller

$

$

Currently unavailable

11

Toro 932017-4

Cotter Pin

$

$

Currently unavailable

12

Toro 7307

Shield, Dust

$

$

Currently unavailable

13

Toro 7308

Pinion, Drive, R.H.

$

$

Currently unavailable

14

Toro 7309

Pinion, Drive, L.H.

$

$

Currently unavailable

15

Toro 7310

Shaft, Wheel

$

$

Currently unavailable

16

Toro 7298

Decal, Height Inst.

$

$

Currently unavailable

17

Toro 920126-4

Lockwasher, 1/2 Ext.

$

$

Currently unavailable

18

Toro 7311

Tire, Diamond Tread

$

$

Currently unavailable

20

Toro 7313

Pawl, Pinion Drive

$

$

Currently unavailable

21

Toro 7314

Bracket, Handle Stop

$

$

Currently unavailable

22

Toro 915236-4

3/8-16 Jam Nut

$

$

Currently unavailable

23

Toro 7315

Case, R.H. Adjusting Screw

$

$

Currently unavailable

24

Toro 7316

Case, L.H. Adjusting Screw

$

$

Currently unavailable

25

Toro 7317

Bracket Rear Roller R.H.

$

$

Currently unavailable

26

Toro 7318

Stud, Handle

$

$

Currently unavailable

27

Toro 7319

Screw, Deck Adjusting

$

$

Currently unavailable

28

Toro 7320

Plate, L.H. Mounting Plate

$

$

Currently unavailable

29

Toro 7322

Screw, Cutter Bar Adjusting

$3.23

$

Usually ships in 3-6 days

0

30

Toro 7323

Bearing, Reel Shaft

$

$

Currently unavailable

31

Toro 7325

Slinger, Dirt

$

$

Currently unavailable

32

Toro 7327

Bar, Cutter

$

$

Currently unavailable

33

Toro 7324

Rod, Tie

$

$

Currently unavailable

34

Toro 7326

Washer, Seal, Reel Bearing Felt

$

$

Currently unavailable

35

Toro 7321

Roller, Rear

$

$

Currently unavailable

36

Toro 7328

Plate, R.H. Mounting Pin

$

$

Currently unavailable

37

Toro 908001-4

Bolt, 1/4-x 1/2

$

$

Currently unavailable

38

Toro 908016-4

Bolt Hex 5/16-18

$

$

Currently unavailable

39

Toro 7329

Decal, Roller Adj.

$

$

Currently unavailable

40

Toro 915111-4

Nut 1/4-20

$

$

Currently unavailable

41

Toro 915001-4

Nut, 5/16-18 Hex

$

$

Currently unavailable

42

Toro 915235-4

Nut 5/16-18 Jam

$

$

Currently unavailable

43

Toro 915084-4

Nut, 5/16-24 Hex Jam

$

$

Currently unavailable

44

Toro 900040-4

Bolt-5/16-18 x 1 1/2

$

$

Currently unavailable

45

Toro 900214-4

Bolt-Carriage 5/16-18

$

$

Currently unavailable

46

Toro 920082-4

Lockwasher

$

$

Currently unavailable

47

Toro 920084-4

Lockwasher 3/8

$

$

Currently unavailable

48

Toro 920123-4

Lockwasher, 5/16

$

$

Currently unavailable

50

Toro 920041-4

Washer-Flat

$

$

Currently unavailable

52

Toro 920009-4

Washer

$

$

Currently unavailable

53

Toro 920008-4

Washer

$

$

Currently unavailable

54

Toro 7330

Lockwasher, 1/4
(Superseded to 920122)

$

$

Not available

56

Toro 7331

Washer, 5/16 Flat

$

$

Currently unavailable

57

Toro 7334

Nut, 5/16-18 Hex Conelock

$

$

Currently unavailable

58

Toro 7332

Nut, 1/2-13 Adjustment (Special)

$

$

Currently unavailable

59

Toro 7335

Bracket, L.H. Catcher

$

$

Currently unavailable

60

Toro 7336

Bracket, R.H. Catcher

$

$

Currently unavailable

61

Toro 7337

Deflector, Grass

$

$

Currently unavailable

62

Toro 7338

Clip

$

$

Currently unavailable

63

Toro 926234-4

Screw #10 x 1/2 Type A

$

$

Currently unavailable

64

Toro 900215-4

Bolt, Carriage S.N. 5/16-18 x 1

$

$

Currently unavailable

65

Toro 920008-4

Washer

$

$

Currently unavailable

66

Toro 920082-4

Lockwasher

$

$

Currently unavailable

67

Toro 915001-4

Nut, 5/16-18 Hex

$

$

Currently unavailable

68

Toro 7254

Grass Catcher Ass-y.

$

$

Currently unavailable

69

Toro 7276

Bracket, Rear Roller L.H.

$

$

Currently unavailable
