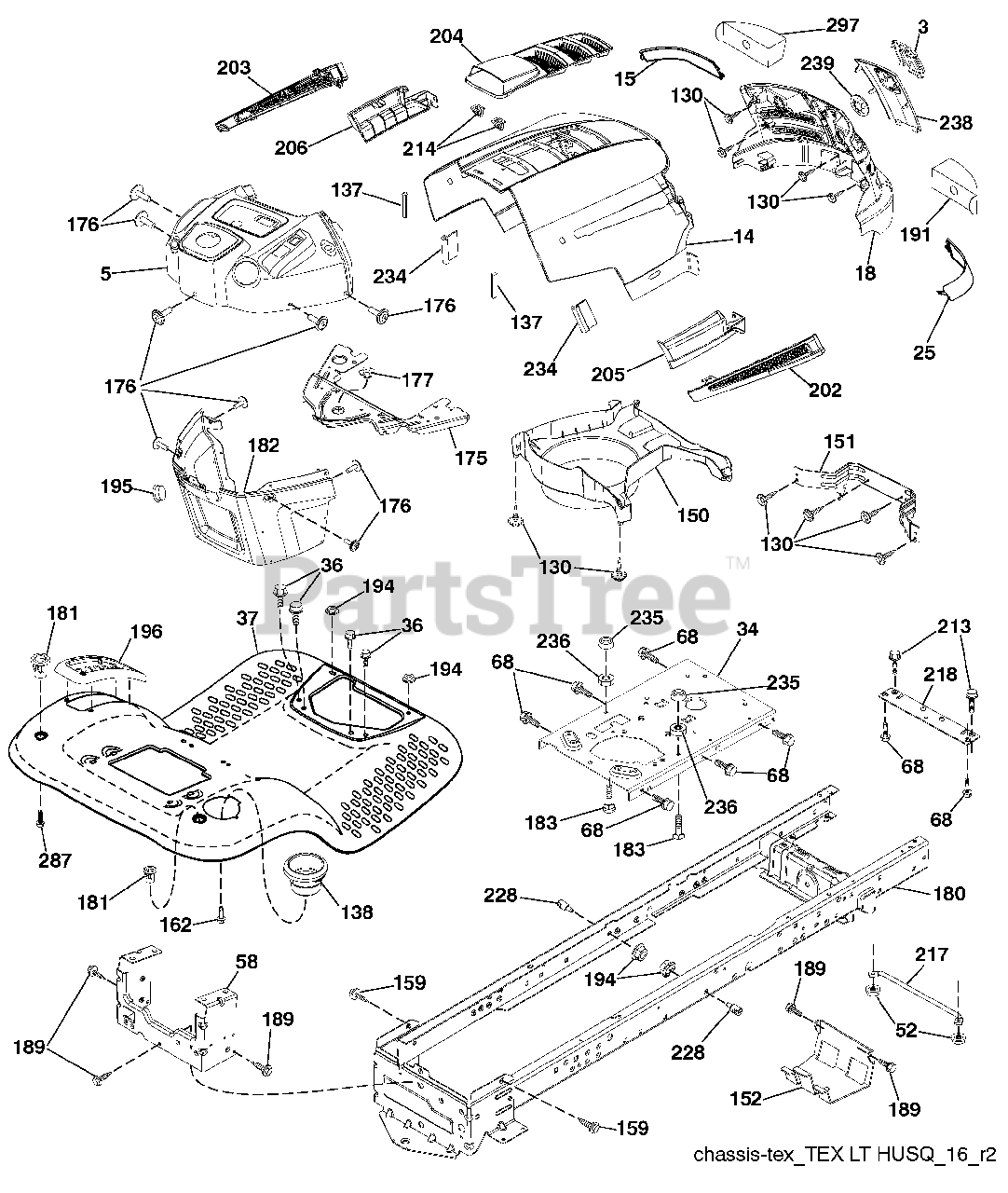

LTH 18538 (960430104-00) - Husqvarna 38" Lawn Tractor (2010-01) Chassis Parts Diagram

38" Lawn Tractor

Chassis Parts Diagram

  • Title

3

Husqvarna 532405012

Logo
(Superseded to 532430771)

$8.99

$

In Stock, only 1 left!

0

5

Husqvarna 532407592

Dash
(Superseded to 532438964)

$78.99

$

Usually ships in 3-10 days

0

14

Husqvarna 532411073

Hood
(Superseded to 532441267)

$84.99

$

Usually ships in 3-10 days

0

15

Husqvarna 532411079

Lens LH
(Superseded to 532406664)

$24.99

$

Usually ships in 3-10 days

0

18

Husqvarna 532426963

Grille
(Superseded to 584382301)

$72.99

$

Usually ships in 3-10 days

0

25

Husqvarna 532411078

Lens RH
(Superseded to 532406663)

$24.99

$

Usually ships in 3-10 days

0

34

Husqvarna 532196125

Plate Engine
(Superseded to 580910801)

$49.99

$

Usually ships in 3-10 days

0

36

Husqvarna 817060512

Screw 5/16-18 x 3/4
(Superseded to 817490508)

$3.99

$

Usually ships in 3-10 days

0

37

Husqvarna 532416307

Fender
(Superseded to 532441266)

$182.99

$

Usually ships in 3-10 days

0

52

Husqvarna 873680500

Nut Crown Lock 5/16
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

58

Husqvarna 532412280

Drawbar Upper

$46.99

$

Usually ships in 3-10 days

0

68

Husqvarna 817490508

Screw THDROL 5/16-18 x 1/2
(Superseded to 539990858)

$3.99

$

Usually ships in 3-10 days

0

130

Husqvarna 532416358

Screw #10 x 0.750 BOS Thread

$

$

Not available

137

Husqvarna 532407590

Bumper Dash

$6.49

$

In Stock, Qty 12

0

138

Husqvarna 532402954

Cupholder
(Superseded to 532439747)

$8.99

$

In Stock, only 1 left!

0

150

Husqvarna 532406662

Air Duct

$30.99

$

Usually ships in 3-10 days

0

151

Husqvarna 532407807

Bracket Pivot

$26.99

$

Usually ships in 3-10 days

0

152

Husqvarna 532199535

Shield Browning

$

$

Not available

159

Husqvarna 817000612

Screw Hexwash Thor 3/8-16 x 3/4

$4.99

$

In Stock, Qty 14

0

162

Husqvarna 532142432

Screw

$6.49

$

Usually ships in 3-10 days

0

175

Husqvarna 532199472

Crossmember Plate

$9.99

$

Usually ships in 3-10 days

0

176

Husqvarna 532400776

Screw 10-24 x 5/8

$11.99

$

In Stock, Qty 5

0

177

Husqvarna 532195228

Bushing Steering

$4.99

$

In Stock, Qty 20+

0

180

Husqvarna 532415063

Chassis

$157.99

$

Usually ships in 3-10 days

0

181

Husqvarna 532403025

Bushing Mtg. Fender Crgo

$

$

Not available

182

Husqvarna 532407176

Dash Lower

$66.99

$

Usually ships in 3-10 days

0

183

Husqvarna 874520520

Bolt 5/16-18 x 1-1/4 Full Thd

$4.99

$

Usually ships in 3-10 days

0

189

Husqvarna 817000512

Screw 5/16-18 x 3/4
(Superseded to 532428867)

$6.49

$

In Stock, Qty 20+

0

191

Husqvarna 532416500

Insert Reflective RH

$7.49

$

Usually ships in 3-10 days

0

194

Husqvarna 873900500

Nut Lock Hex Flange 5/16-18
(Superseded to 583612701)

$6.49

$

Usually ships in 3-10 days

0

195

Husqvarna 532411115

Plug Dash
(Superseded to 532439976)

$6.49

$

Usually ships in 3-10 days

0

196

Husqvarna 532414580

Console Asm. Deck Lift
(Superseded to 532439647)

$53.99

$

In Stock, Qty 7

0

202

Husqvarna 532411075

Vent Side Hood RH
(Superseded to 532406670)

$8.99

$

Usually ships in 3-10 days

0

203

Husqvarna 532411074

Vent Side Hood LH
(Superseded to 532406671)

$8.99

$

Usually ships in 3-10 days

0

204

Husqvarna 532411116

Vent Top Hood
(Superseded to 532441375)

$30.99

$

Usually ships in 3-10 days

0

205

Husqvarna 532411076

Skirt Side RH
(Superseded to 532406668)

$9.99

$

Usually ships in 3-10 days

0

206

Husqvarna 532411077

Skirt Side LH
(Superseded to 532441345)

$9.99

$

Usually ships in 3-10 days

0

213

Husqvarna 874760512

Bolt 5/16-18 x 3/4
(Superseded to 874780512)

$3.99

$

In Stock, Qty 20+

0

214

Husqvarna 532199145

Clip Retainer

$6.49

$

Usually ships in 3-10 days

0

217

Husqvarna 532409167

Rod Pivot Hood

$13.99

$

Usually ships in 3-10 days

0

218

Husqvarna 532196395

X-Piece Hood Stop

$4.99

$

Usually ships in 3-10 days

0

228

Husqvarna 532195161

Stud Fastener

$

$

Not available

234

Husqvarna 532404742

Bumper Hood

$6.49

$

In Stock, only 2 left!

0

235

Husqvarna 532406129

Spacer Fender

$4.99

$

Usually ships in 3-10 days

0

236

Husqvarna 873930500

Nut Lock 5/16-18 unc

$7.49

$

In Stock, only 1 left!

0

238

Husqvarna 532411119

Trim
(Superseded to 532407881)

$20.99

$

Usually ships in 3-10 days

0

239

Husqvarna 532404883

Clip Tinnerman

$15.99

$

Usually ships in 3-10 days

0

287

Husqvarna 817600406

Screw Hex Washead 1/4-20 x 3/8

$6.49

$

In Stock, Qty 5

0

297

Husqvarna 532406665

Insert reflective LH

$9.99

$

Usually ships in 3-10 days

0
