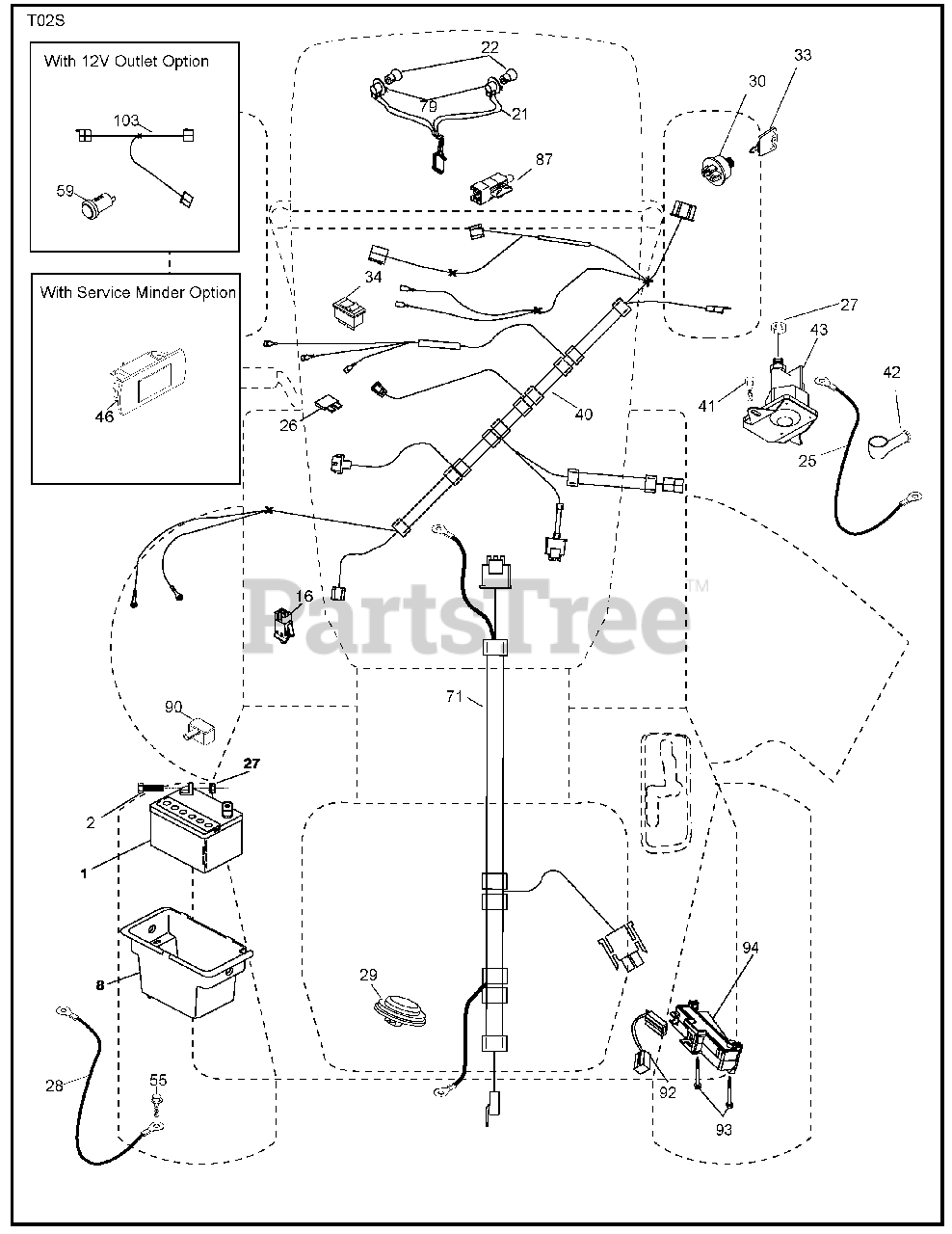

LTH 18538 (960430104-00) - Husqvarna 38" Lawn Tractor (2010-01) Electrical Parts Diagram

38" Lawn Tractor

Electrical Parts Diagram

  • Title

1

Husqvarna 532163465

Battery
(Superseded to 532123899)

$194.99

$

Usually ships in 3-10 days

0

2

Husqvarna 874760412

Bolt Hex Head 1/4-20 x 3/4

$7.49

$

In Stock, Qty 5

0

8

Husqvarna 532193228

Box Battery

$18.99

$

In Stock, only 4 left!

0

16

Husqvarna 532176138

Switch Interlock Push-In

$15.99

$

In Stock, Qty 5

0

21

Husqvarna 532400252

Harness Socket Light w/4152J

$34.99

$

In Stock, Qty 5

0

22

Husqvarna 532004152

Bulb Light

$4.99

$

In Stock, Qty 20+

0

25

Husqvarna 532412895

Cable Starter
(Superseded to 585555501)

$8.99

$

In Stock, Qty 8

0

26

Husqvarna 532175158

Fuse

$7.49

$

In Stock, Qty 12

0

27

Husqvarna 873510400

Nut Keps Hex 1/4-20 unc
(Superseded to 873680400)

$3.99

$

In Stock, Qty 20+

0

28

Husqvarna 532198885

Cable, Ground

$30.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532401545

Switch, Seat

$39.99

$

In Stock, Qty 19

0

30

Husqvarna 532193350

Switch, Ign

$13.99

$

In Stock, Qty 20+

0

33

Husqvarna 532411935

Key/Chain

$10.99

$

In Stock, Qty 20+

0

34

Husqvarna 532110712

Switch Light/Reset

$8.99

$

In Stock, Qty 11

0

40

Husqvarna 532401098

Harness Ign. Dash

$120.99

$

In Stock, Qty 7

0

41

Husqvarna 817720408

Screw Thd Cut 1/4-20 x 1/2
(Superseded to 874780408)

$3.99

$

Usually ships in 3-10 days

0

42

Husqvarna 532131563

Cover, Terminal
(Superseded to 532154336)

$8.99

$

Usually ships in 3-10 days

0

43

Husqvarna 532192507

Solenoid
(Superseded to 582042802)

$13.99

$

In Stock, Qty 20+

0

55

Husqvarna 817060512

Screw Thdrol 5/16-18 x 3/4
(Superseded to 817490508)

$3.99

$

Usually ships in 3-10 days

0

71

Husqvarna 532400449

Harness Chassis

$40.99

$

Usually ships in 3-10 days

0

79

Husqvarna 532175242

Socket Asm Bulb Twistlock

$18.99

$

In Stock, only 2 left!

0

87

Husqvarna 532197802

Switch Interlock Clutch Cable

$18.99

$

In Stock, Qty 18

0

90

Husqvarna 532400725

Cover, Terminal Battery
(Superseded to 532435395)

$6.49

$

Usually ships in 3-10 days

0

92

Husqvarna 532196615

Harness Pigtail Reverse Switch

$18.99

$

In Stock, only 1 left!

0

93

Husqvarna 532192540

Screw Plastite 10-14 x 2.0

$4.99

$

Usually ships in 3-10 days

0

94

Husqvarna 532191834

Module Reverse ROS

$37.99

$

In Stock, only 2 left!

0
